View Issue Details

IDCategoryLast Update
0007928bugs2020-03-19 22:10
Reporterio7m2Assigned To
Reproducibilityalways
Status newResolutionopen
PlatformLinuxOSArch LinuxOS Version5.5.8-arch1-1
Product Version5.12
Fixed in Version
Summary0007928: Crash on opening project
DescriptionThe 2/broadway_2/broadway_2.ardour project will reliably crash Ardour 5.12 on opening with the following error:

(ardour-5.12.0:5010): glibmm-ERROR **:
unhandled exception (type std::exception) in signal handler:
what: std::bad_array_new_length
Trace/breakpoint trap (core dumped)

I've verified this against both the Arch Linux OS packages, and the 5.12 demo available on Ardour.org.
Steps To ReproduceDownload the ~250mb project from here:

https://drive.google.com/open?id=1gSNvHC9OfP8izXrap3zia5XWkIIG1CNA

Apologies for the large size. This is a real project and I don't know how else to reproduce the issue.

1. Open 2/broadway_2/broadway_2.ardour
2. Ardour will mention that there are missing files. Ignore them.
3. The UI will load but, just before any regions appear, the program will crash.
Tagscrash

Activities

io7m2

2020-03-13 18:25

reporter   ~0021020

The gdb backtrace looks like this:

#0 0x00007ffff6ca8f46 in () at /usr/lib/libglib-2.0.so.0
0000001 0x00007ffff6ca9136 in g_log_default_handler () at /usr/lib/libglib-2.0.so.0
#2 0x00007ffff6ca98be in g_logv () at /usr/lib/libglib-2.0.so.0
#3 0x00007ffff6ca9ac0 in g_log () at /usr/lib/libglib-2.0.so.0
0000004 0x00007ffff6e0d100 in () at /usr/lib/libglibmm-2.4.so.1
0000005 0x00007ffff600c8df in () at /usr/lib/libgtkmm-2.4.so.1
#6 0x00007ffff692003c in () at /usr/lib/libgtk-x11-2.0.so.0
#7 0x00007ffff6dac61a in g_closure_invoke () at /usr/lib/libgobject-2.0.so.0
0000008 0x00007ffff6d8d0e8 in () at /usr/lib/libgobject-2.0.so.0
0000009 0x00007ffff6d905cc in g_signal_emit_valist () at /usr/lib/libgobject-2.0.so.0
0000010 0x00007ffff6d926b0 in g_signal_emit () at /usr/lib/libgobject-2.0.so.0
0000011 0x00007ffff6a3c6f8 in () at /usr/lib/libgtk-x11-2.0.so.0
0000012 0x00007ffff691ee11 in gtk_main_do_event () at /usr/lib/libgtk-x11-2.0.so.0
0000013 0x00007ffff6779a90 in () at /usr/lib/libgdk-x11-2.0.so.0
0000014 0x00007ffff6779a33 in () at /usr/lib/libgdk-x11-2.0.so.0
#15 0x00007ffff6779a33 in () at /usr/lib/libgdk-x11-2.0.so.0
0000016 0x00007ffff6779a33 in () at /usr/lib/libgdk-x11-2.0.so.0
#17 0x00007ffff67764cf in () at /usr/lib/libgdk-x11-2.0.so.0
0000018 0x00007ffff6776e20 in gdk_window_process_all_updates () at /usr/lib/libgdk-x11-2.0.so.0
0000019 0x00007ffff6776e79 in () at /usr/lib/libgdk-x11-2.0.so.0
0000020 0x00007ffff6755257 in () at /usr/lib/libgdk-x11-2.0.so.0
0000021 0x00007ffff6cb188f in g_main_context_dispatch () at /usr/lib/libglib-2.0.so.0
0000022 0x00007ffff6cb3831 in () at /usr/lib/libglib-2.0.so.0
0000023 0x00007ffff6cb3871 in g_main_context_iteration () at /usr/lib/libglib-2.0.so.0
#24 0x00007ffff691ddc2 in gtk_main_iteration () at /usr/lib/libgtk-x11-2.0.so.0
0000025 0x00007ffff70e7ca5 in Gtkmm2ext::UI::flush_pending(float) () at /usr/lib/ardour5/libgtkmm2ext.so.0
0000026 0x00005555559d420c in ()
0000027 0x00005555559e368e in ()
0000028 0x00005555559e497d in ()
0000029 0x00007ffff70e650c in Gtkmm2ext::UI::run(Receiver&) () at /usr/lib/ardour5/libgtkmm2ext.so.0
0000030 0x00005555559a0040 in ()
0000031 0x00007ffff4f7b023 in __libc_start_main () at /usr/lib/libc.so.6
0000032 0x00005555559a4a9e in ()

Admittedly that's not too useful without symbols.

x42

2020-03-14 01:56

administrator

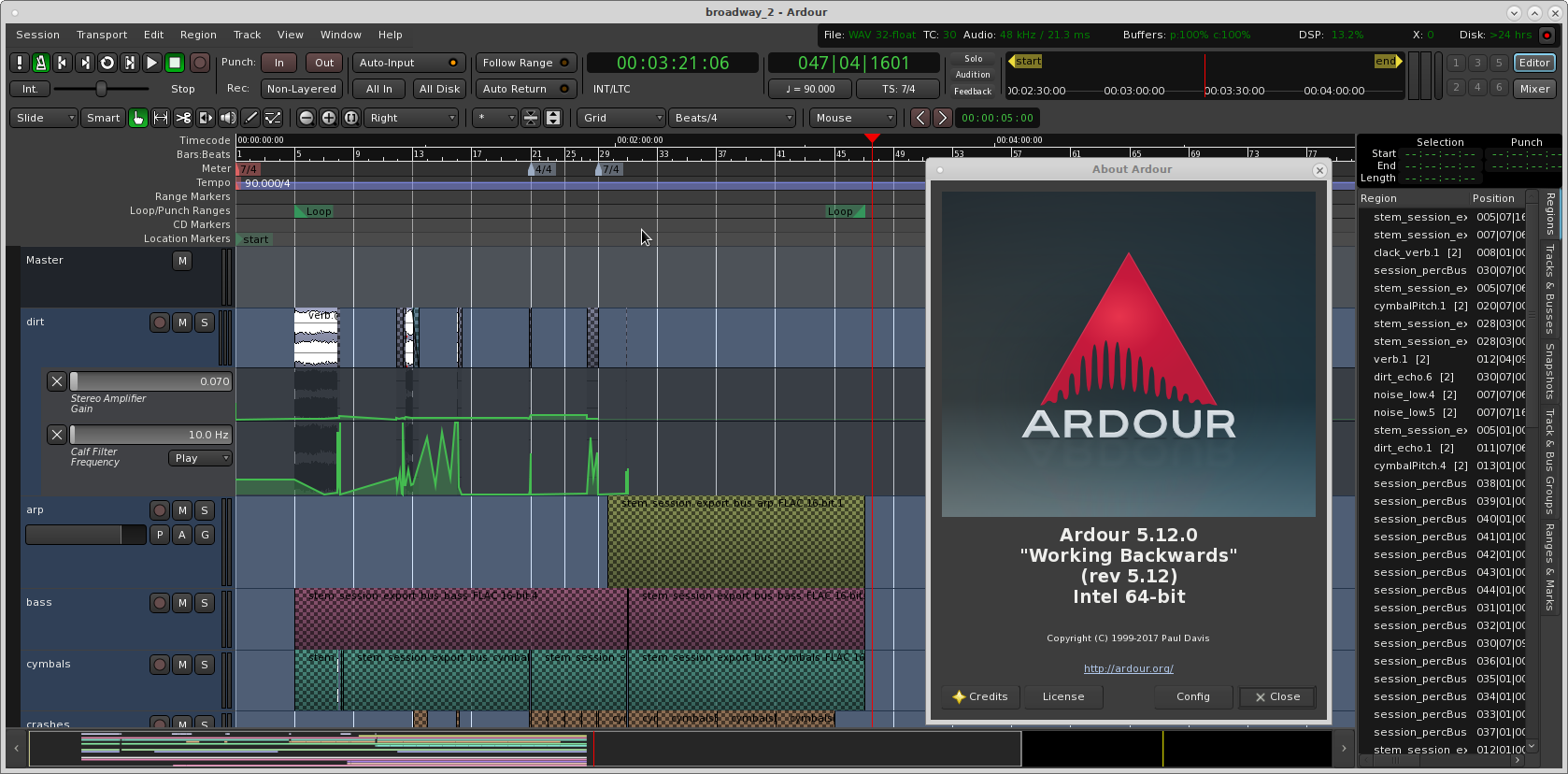

Screenshot at 2020-03-14 02-47-30.png (277,991 bytes)

x42

2020-03-14 01:56

administrator   ~0021021

> 1. Open 2/broadway_2/broadway_2.ardour
> 2. Ardour will mention that there are missing files. Ignore them.

So far so good. It also mentions that most plugins are not available, in particular calf ones.

>3. The UI will load but, just before any regions appear, the program will crash.

It loads just fine here using ardour-5.12 from ardour.org. (see screenshot)
Have you tried loading the session in "safe mode (disable all plugins)" checkbox in the open-session dialog?

io7m2

2020-03-14 10:15

reporter   ~0021022

Interesting! No, I hadn't tried safe mode. With safe mode enabled, the project does indeed open without crashing.

I hesitate to ask, but how do I track down which plugin is causing the issue? Disabling all of them (safe mode) replaces them all with stubs. I can't see a way to selectively re-enable individual plugins.

x42

2020-03-15 17:16

administrator   ~0021024

Sadly there's no easy way to find out which plugin causes this. It may also be due to a combination of plugins.

Make a backup, open in safe mode, remove half of the plugins, re-load session.. test and repeat.

io7m2

2020-03-16 11:23

reporter   ~0021028

Hm. I've actually gone through all of the plugins one by one and removed _all_ of them. Via safe mode, I managed to get to the mixer view and from there I could remove individual plugins, saving and reloading after each removal. Even with no plugins on any channel (and including with safe mode enabled), attempting to switch to the editor view immediately crashes Ardour.

I've attached the session files with the removals made.

broadway_2.ardour (280,707 bytes)
broadway_2.history (15,151 bytes)
instant.xml (1,990 bytes)

io7m2

2020-03-16 18:39

reporter   ~0021031

Is there anything more useful I could be doing to assist? I don't want to just be throwing these things at you and implicitly demanding help. :)

paul

2020-03-19 22:10

administrator   ~0021036

We're working on getting ardour 6.0 to release. We're not likely to back up and dig into this unless it also happens in the current master code (if you're a subscriber you could try a nightly build to see if the behavior is the same for you).
