View Issue Details

IDProjectCategoryView StatusLast Update
0001415ardourbugspublic2008-11-20 23:50
Reporterflowbot Assigned Topaul
PrioritynormalSeveritycrashReproducibilityalways
Status closedResolutionfixed
Summary0001415: Segmentation fault on opening recent ardour session
DescriptionTrying to open a recently created Ardour2 session with latest svn 1303 (about 2 mono and 2 stereo tracks, no automation, synced to Jack transport) i keep getting a segfault. The backup files don't work either.

This is the backtrace:

Loading session /home/flowbot/audio-projects/ardour/wishing_well_125 using snapshot wishing_well_125 (1)
[New Thread -1264116544 (LWP 8134)]
[New Thread -1264620352 (LWP 8135)]

Program received signal SIGSEGV, Segmentation fault.
[Switching to Thread -1252492384 (LWP 8126)]
0xb7f24264 in ARDOUR::Session::start_locate (this=0x9071608, target_frame=0,
    with_roll=false, with_flush=true, with_loop=false)
    at libs/ardour/session_transport.cc:592
592 _slave->speed_and_position (sp, pos);
(gdb) thread apply all bt

Thread 7 (Thread -1264620352 (LWP 8135)):
#0 0xb7fb8410 in ?? ()
0000001 0xb49f6478 in ?? ()
#2 0xffffffff in ?? ()
#3 0x00000002 in ?? ()
0000004 0x00000002 in ?? ()
0000005 0xb49f6cc0 in ?? ()
#6 0x00000000 in ?? ()

Thread 6 (Thread -1264116544 (LWP 8134)):
#0 0xb7d9f224 in ARDOUR::AudioPlaylist::read (this=0x91cffc8, buf=0xb30b4008,
    mixdown_buffer=0xb4c8a008, gain_buffer=0xb4c49008, start=65536, cnt=65536,
    chan_n=1) at libs/ardour/audio_playlist.cc:141
0000001 0xb7d8ca98 in ARDOUR::AudioDiskstream::read (this=0x91cc318,
    buf=0xb30b4008, mixdown_buffer=0xb4c8a008, gain_buffer=0xb4c49008,
    start=@0xb4a713ec, cnt=65536, channel_info=@0x91d0818, channel=1,
    reversed=false) at libs/ardour/audio_diskstream.cc:1031
#2 0xb7d8d257 in ARDOUR::AudioDiskstream::_do_refill (this=0x91cc318,
    mixdown_buffer=0xb4c8a008, gain_buffer=0xb4c49008)
    at libs/ardour/audio_diskstream.cc:1233
#3 0xb7d988a3 in ARDOUR::AudioDiskstream::do_refill (this=0x91cc318)
    at libs/ardour/ardour/audio_diskstream.h:213
---Type <return> to continue, or q <return> to quit---
0000004 0xb7ed8d85 in ARDOUR::Session::butler_thread_work (this=0x9071608)
    at libs/ardour/session_butler.cc:255
0000005 0xb7ed96f5 in ARDOUR::Session::_butler_thread_work (arg=0x9071608)
    at libs/ardour/session_butler.cc:156
#6 0xb69ac504 in start_thread () from /lib/tls/i686/cmov/libpthread.so.0
#7 0xb694051e in clone () from /lib/tls/i686/cmov/libc.so.6

Thread 5 (Thread -1252492384 (LWP 8126)):
#0 0xb7f24264 in ARDOUR::Session::start_locate (this=0x9071608,
    target_frame=0, with_roll=false, with_flush=true, with_loop=false)
    at libs/ardour/session_transport.cc:592
0000001 0xb7eee206 in ARDOUR::Session::process_event (this=0x9071608, ev=0x87dad70)
    at libs/ardour/session_events.cc:337
#2 0xb7eee938 in ARDOUR::Session::merge_event (this=0x9071608, ev=0x87dad70)
    at libs/ardour/session_events.cc:148
#3 0xb7effda9 in ARDOUR::Session::process_with_events (this=0x9071608,
    nframes=1024) at libs/ardour/session_process.cc:264
0000004 0xb7f0045a in ARDOUR::Session::process (this=0x9071608, nframes=1024)
    at libs/ardour/session_process.cc:61
0000005 0xb7db9da9 in ARDOUR::AudioEngine::process_callback (this=0x8aea428,
    nframes=1024) at libs/ardour/audioengine.cc:301
#6 0xb7db9f66 in ARDOUR::AudioEngine::_process_callback (nframes=1024,
    arg=0x8aea428) at libs/ardour/audioengine.cc:256
---Type <return> to continue, or q <return> to quit---
#7 0xb6b860fa in jack_client_close () from /usr/lib/libjack-0.100.0.so.0
0000008 0xb69ac504 in start_thread () from /lib/tls/i686/cmov/libpthread.so.0
0000009 0xb694051e in clone () from /lib/tls/i686/cmov/libc.so.6

Thread 4 (Thread -1251550016 (LWP 8125)):
#0 0xb7fb8410 in ?? ()
0000001 0xb566d518 in ?? ()
#2 0xffffffff in ?? ()
#3 0x00000001 in ?? ()
0000004 0x00000000 in ?? ()

Thread 3 (Thread -1242370880 (LWP 8124)):
#0 0xb7fb8410 in ?? ()
0000001 0xb5f2e4c8 in ?? ()
#2 0xb779c1e4 in ?? () from /usr/lib/libglib-2.0.so.0
#3 0xb5f2e4ac in ?? ()
0000004 0xb69b2bf6 in __nanosleep_nocancel ()
   from /lib/tls/i686/cmov/libpthread.so.0
0000005 0xb77562f2 in g_usleep () from /usr/lib/libglib-2.0.so.0
#6 0xb6e4c481 in Glib::usleep (microseconds=10000)
    at libs/glibmm2/glibmm/timer.cc:68
#7 0xb7db9874 in ARDOUR::AudioEngine::meter_thread (this=0x8aea428)
    at libs/ardour/audioengine.cc:411
---Type <return> to continue, or q <return> to quit---
0000008 0xb7dbc5bc in sigc::bound_mem_functor0<void, ARDOUR::AudioEngine>::operator() (this=0x8ae9c94) at libs/sigc++2/sigc++/functors/mem_fun.h:1781
0000009 0xb7dbc5de in sigc::adaptor_functor<sigc::bound_mem_functor0<void, ARDOUR::AudioEngine> >::operator() (this=0x8ae9c90)
    at libs/sigc++2/sigc++/adaptors/adaptor_trait.h:251
0000010 0xb7dbc60a in sigc::internal::slot_call0<sigc::bound_mem_functor0<void, ARDOUR::AudioEngine>, void>::call_it (rep=0x8ae9c78)
    at libs/sigc++2/sigc++/functors/slot.h:103
0000011 0x08359bd6 in sigc::slot0<void>::operator() (this=0x8a0f5e0)
    at libs/sigc++2/sigc++/functors/slot.h:440
0000012 0xb6e52933 in call_thread_entry_slot (data=0x8a0f5e0)
    at libs/glibmm2/glibmm/thread.cc:43
0000013 0xb775438f in g_thread_create_full () from /usr/lib/libglib-2.0.so.0
0000014 0xb69ac504 in start_thread () from /lib/tls/i686/cmov/libpthread.so.0
#15 0xb694051e in clone () from /lib/tls/i686/cmov/libc.so.6

Thread 2 (Thread -1238496064 (LWP 8119)):
#0 0xb7fb8410 in ?? ()
0000001 0xb62e0518 in ?? ()
#2 0xffffffff in ?? ()
#3 0x00000002 in ?? ()
0000004 0x00000000 in ?? ()

---Type <return> to continue, or q <return> to quit---
Thread 1 (Thread -1236719952 (LWP 8108)):
#0 0xb76f6b11 in g_type_check_value () from /usr/lib/libgobject-2.0.so.0
0000001 0xb76fc112 in g_value_unset () from /usr/lib/libgobject-2.0.so.0
#2 0xb76ec0d6 in g_signal_emit_valist () from /usr/lib/libgobject-2.0.so.0
#3 0xb76ec279 in g_signal_emit () from /usr/lib/libgobject-2.0.so.0
0000004 0xb73943a4 in gtk_container_set_focus_child ()
   from /usr/lib/libgtk-x11-2.0.so.0
0000005 0xb7548b22 in gtk_widget_freeze_child_notify ()
   from /usr/lib/libgtk-x11-2.0.so.0
#6 0xb791c634 in Gtk::Widget_Class::grab_focus_callback (self=0x8df8550)
    at libs/gtkmm2/gtk/gtkmm/widget.cc:3659
#7 0xb76e7b29 in g_cclosure_marshal_VOID__VOID ()
   from /usr/lib/libgobject-2.0.so.0
0000008 0xb76d8fb9 in g_value_set_boxed () from /usr/lib/libgobject-2.0.so.0
0000009 0xb76da79b in g_closure_invoke () from /usr/lib/libgobject-2.0.so.0
0000010 0xb76eb1e3 in g_signal_chain_from_overridden ()
   from /usr/lib/libgobject-2.0.so.0
0000011 0xb76ec0b7 in g_signal_emit_valist () from /usr/lib/libgobject-2.0.so.0
0000012 0xb76ec279 in g_signal_emit () from /usr/lib/libgobject-2.0.so.0
0000013 0xb7541362 in gtk_widget_grab_focus () from /usr/lib/libgtk-x11-2.0.so.0
0000014 0xb79191e7 in Gtk::Widget::grab_focus (this=0x8ddced8)
    at libs/gtkmm2/gtk/gtkmm/widget.cc:5190
#15 0x083b3702 in AudioClock::set_mode (this=0x8ddc934, m=AudioClock::SMPTE)
---Type <return> to continue, or q <return> to quit---
    at gtk2_ardour/audio_clock.cc:1843
0000016 0x083b411d in AudioClock::set_session (this=0x8ddc934, s=0x9071608)
    at gtk2_ardour/audio_clock.cc:604
#17 0x084421b5 in Editor::connect_to_session (this=0x8dda940, t=0x9071608)
    at gtk2_ardour/editor.cc:1190
0000018 0x0838ffc6 in ARDOUR_UI::connect_dependents_to_session (this=0x87f5900,
    s=0x9071608) at gtk2_ardour/ardour_ui_dependents.cc:99
0000019 0x083919dc in ARDOUR_UI::connect_to_session (this=0x87f5900, s=0x9071608)
    at gtk2_ardour/ardour_ui_dialogs.cc:126
0000020 0x083648ff in ARDOUR_UI::load_session (this=0x87f5900, path=@0xbfd62b98,
    snap_name=@0xbfd62b9c, mix_template=0x0) at gtk2_ardour/ardour_ui.cc:1829
0000021 0x08365043 in ARDOUR_UI::new_session (this=0x87f5900,
    predetermined_path=@0xbfd62c44) at gtk2_ardour/ardour_ui.cc:1666
0000022 0x0859a631 in maybe_load_session () at gtk2_ardour/main.cc:303
0000023 0x0859b496 in main (argc=1, argv=0xbfd62d94) at gtk2_ardour/main.cc:454
0xb7f24264 592 _slave->speed_and_position (sp, pos);
(gdb)
TagsNo tags attached.

Activities

2007-01-10 23:31



wishing_well_125.ardour (52,731 bytes)

2007-01-10 23:37



flowbot

2007-01-10 23:39

reporter   ~0003047

ok, it seems to be related to the session template i've been using, which i've attached. if i create any session now with this template, ardour2 segfaults on creation of session, and also when trying to open.

fresh session not using template seem to be fine.

paul

2007-01-11 20:00

administrator   ~0003051

i am pretty certain its the slave setting. edit the template and/or session file and make "slave-source" have the value "0" not "2". that will likely get rid of it. i will investigate the crash in the meantime.

2007-01-11 22:07




flowbot

2007-01-11 22:11

reporter   ~0003053

i changed the value from "2" to "0" in both session and template file, and there is no longer any crash ... unfortunately, there is no longer any audio or audio tracks.

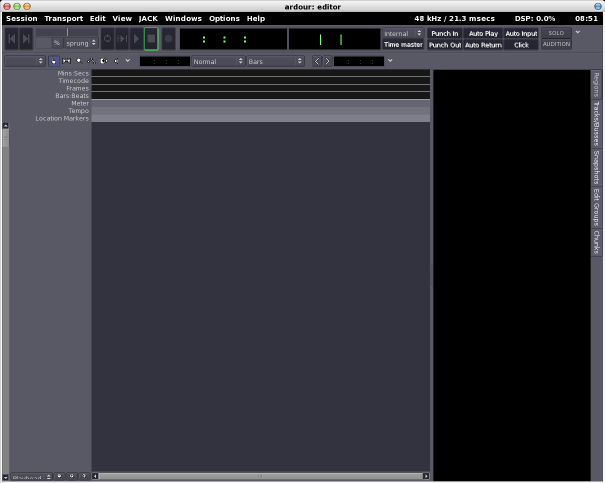

it looks pretty wierd, so i attached a screenshot of it.

paul

2007-01-12 01:58

administrator   ~0003054

very strange. the good news is that i can reproduce the crash here with your session.

i also edited the session file, and it loads just fine for me. are you sure there were no other errors during loading? the screenshot looks like ardour with no session loaded at all.

a fix for the original problem will be forthcoming.

paul

2007-01-12 02:11

administrator   ~0003055

the fix for this was just committed to svn, revision 1317.

hope this will help you out with this session. let me know.

flowbot

2007-01-12 04:21

reporter   ~0003056

Last edited: 2007-01-12 04:22

still won't load :( ... i keep getting what you see in the screenshot, though i didn't notice this from the terminal until now:

Loading session /home/flowbot/audio-projects/ardour/wishing_well_125 using snapshot wishing_well_125 (1)
ardour: [ERROR]: SndFileSource: cannot open file "/home/flowbot/audio-projects/ardour/wishing_well_125/interchange/wishing_well_125/audiofiles/drums 2-1%R.wav" for reading (Supported file format but file is malformed.)
ardour: [ERROR]: Session "/home/flowbot/audio-projects/ardour/wishing_well_125 (snapshot wishing_well_125)" did not load successfully

not even sure if the session still uses the drums 2-1%R.wav file that i'd recorded, either ... in any case, these are all the files in the audiofiles directory:

back_vocal_2-1.wav keyboard-4%L.wav wishing_well_drums_125-L.wav
bass-15.wav keyboard-4%R.wav wishing_well_drums_125-R.wav
drums 2-1%R.wav rhy_guitar-1.wav wishing_well_intro_drums_125-L.wav
keyboard-1%L.wav rhy_guitar-2.wav wishing_well_intro_drums_125-R.wav
keyboard-1%R.wav vocal-1.wav

it could be a file that was recorded when i was testing out the "stop + forget capture" function, but i don't really know ... something seems to have gone seriously wrong with this session ... if all else fails, it probly wouldn't be too hard to import what i've done so far into a new session except for the regions edits i've done.

also, i can use the original template and session files now without segfault, so i'd say that is fixed :)

i'll try catching you on IRC if it might be easier to nail it that way.

flowbot

2007-01-12 23:39

reporter   ~0003059

all is good - i deleted the drums 2-1%R.wav file (which, as i suspected, was no longer part of the session), and the session loaded perfectly :) whew!

paul

2007-01-15 18:16

administrator   ~0003067

see notes. fix in svn.

Issue History

Date Modified Username Field Change
2007-01-10 23:31 flowbot New Issue
2007-01-10 23:31 flowbot File Added: wishing_well_125.ardour
2007-01-10 23:37 flowbot File Added: default-template.template
2007-01-10 23:39 flowbot Note Added: 0003047
2007-01-11 20:00 paul Note Added: 0003051
2007-01-11 22:07 flowbot File Added: Screenshot.png
2007-01-11 22:11 flowbot Note Added: 0003053
2007-01-12 01:58 paul Note Added: 0003054
2007-01-12 02:11 paul Status new => resolved
2007-01-12 02:11 paul Resolution open => fixed
2007-01-12 02:11 paul Assigned To => paul
2007-01-12 02:11 paul Note Added: 0003055
2007-01-12 04:21 flowbot Status resolved => feedback
2007-01-12 04:21 flowbot Resolution fixed => reopened
2007-01-12 04:21 flowbot Note Added: 0003056
2007-01-12 04:22 flowbot Note Edited: 0003056
2007-01-12 23:39 flowbot Note Added: 0003059
2007-01-15 18:16 paul Status feedback => resolved
2007-01-15 18:16 paul Resolution reopened => fixed
2007-01-15 18:16 paul Note Added: 0003067
2008-11-20 23:50 seablade Status resolved => closed
