View Issue Details

IDProjectCategoryView StatusLast Update
0007712ardourbugspublic2020-04-19 20:18
ReporterITicDigger Assigned Tox42
Status closedResolutionfixed
PlatformKXStudioOSLinuxOS Version14.04.5
Product Version5.12
Summary0007712: "Insert time" moves points of automation longer than the regions
Description"Insert time" moves points of automation longer than the regions
Its true for MIDI and audio tracks. If i make "insert time" in track with automation points behind the line of insertion, then automation points will be moved not synchronously with mover regions. ?hey are 2 times farther than they should be. Sometimes more. But I think this value depends on length of inserted time.
Steps To ReproduceCreate midi or audio track, with 2 regions.
Put playhed between regions.
Select track by clicking header.

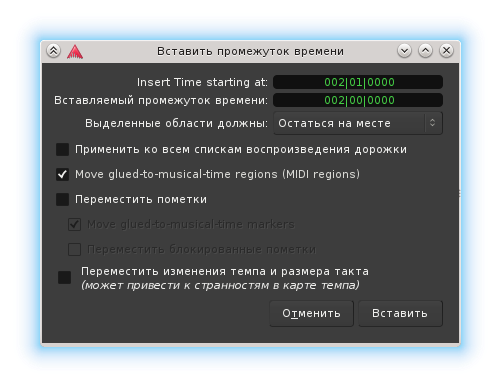

Make "Insert time" trough main menu.
Screenshots for midi and audio-tracks in attachment. In this case im insert 2 bars
Additional InformationFor me its most bigest and creepiest bug in Ardour. Because of him, I have to not use automation until the very end of the work. Instead of trying out my ideas on arrangement related to the automation right away, I'm forced to take notes and remember how I want it to end up sounding.
    Insert automation immediately I do not dream even in the worst nightmare, because if in the process I want to put somewhere at the beginning of a piece or just a pause waiting for me quite a long and very dangerous process of alignment of all automation tracks manually, and such tracks I usually have at least 40. Hell in other words.
    A similar problem was in this report but i decided to create it new separate report because in old says that this bug occurs not only when make time insertion from main menu bot when manually drag regions. And as far as I know, in the current version, when moving regions, automation does not move.
TagsNo tags attached.


related to 0005044 new Automation not moved correctly



2018-12-21 13:41

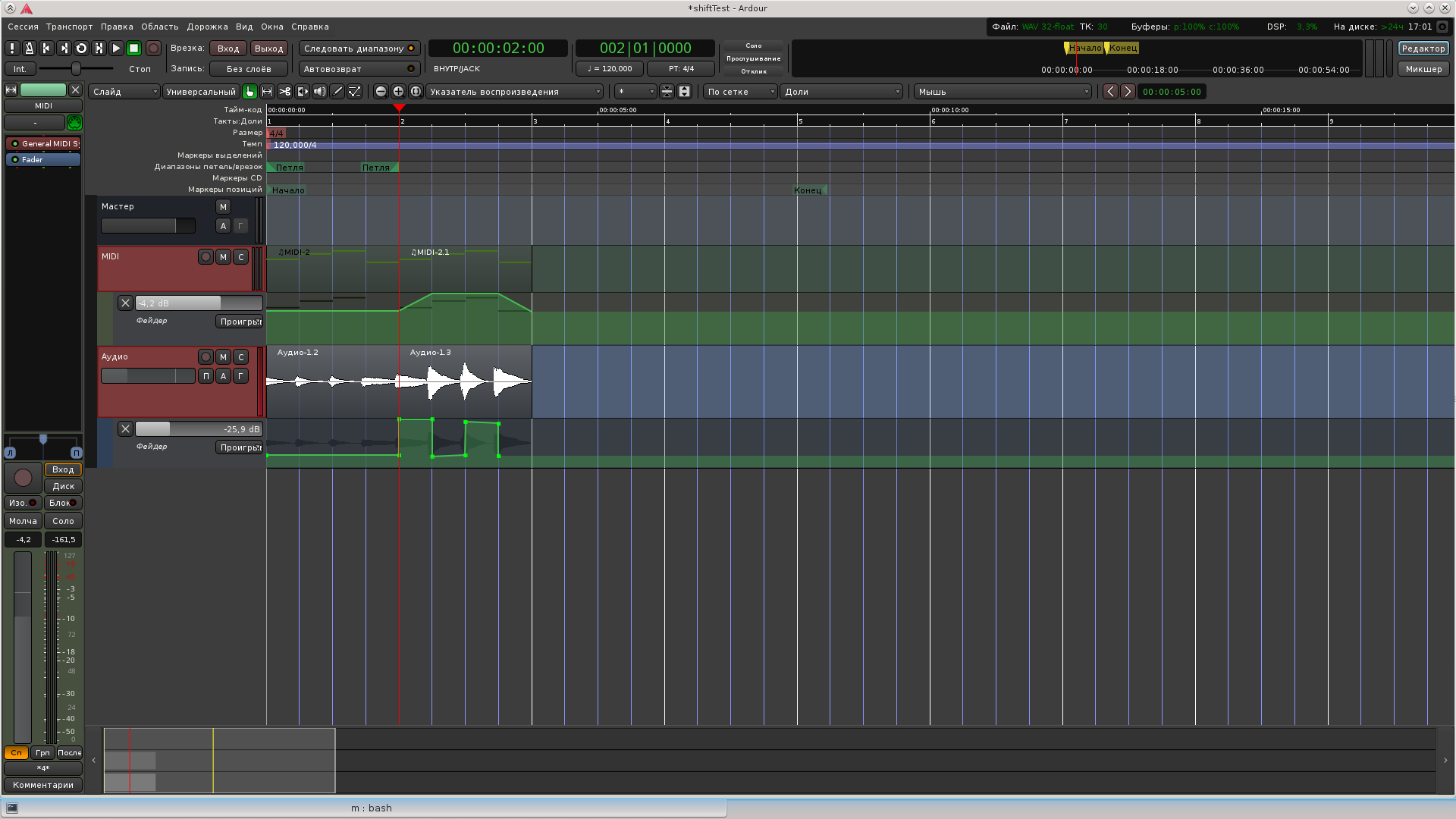

after inserting.png (109,616 bytes)
after inserting.png (109,616 bytes)


2018-12-21 13:42

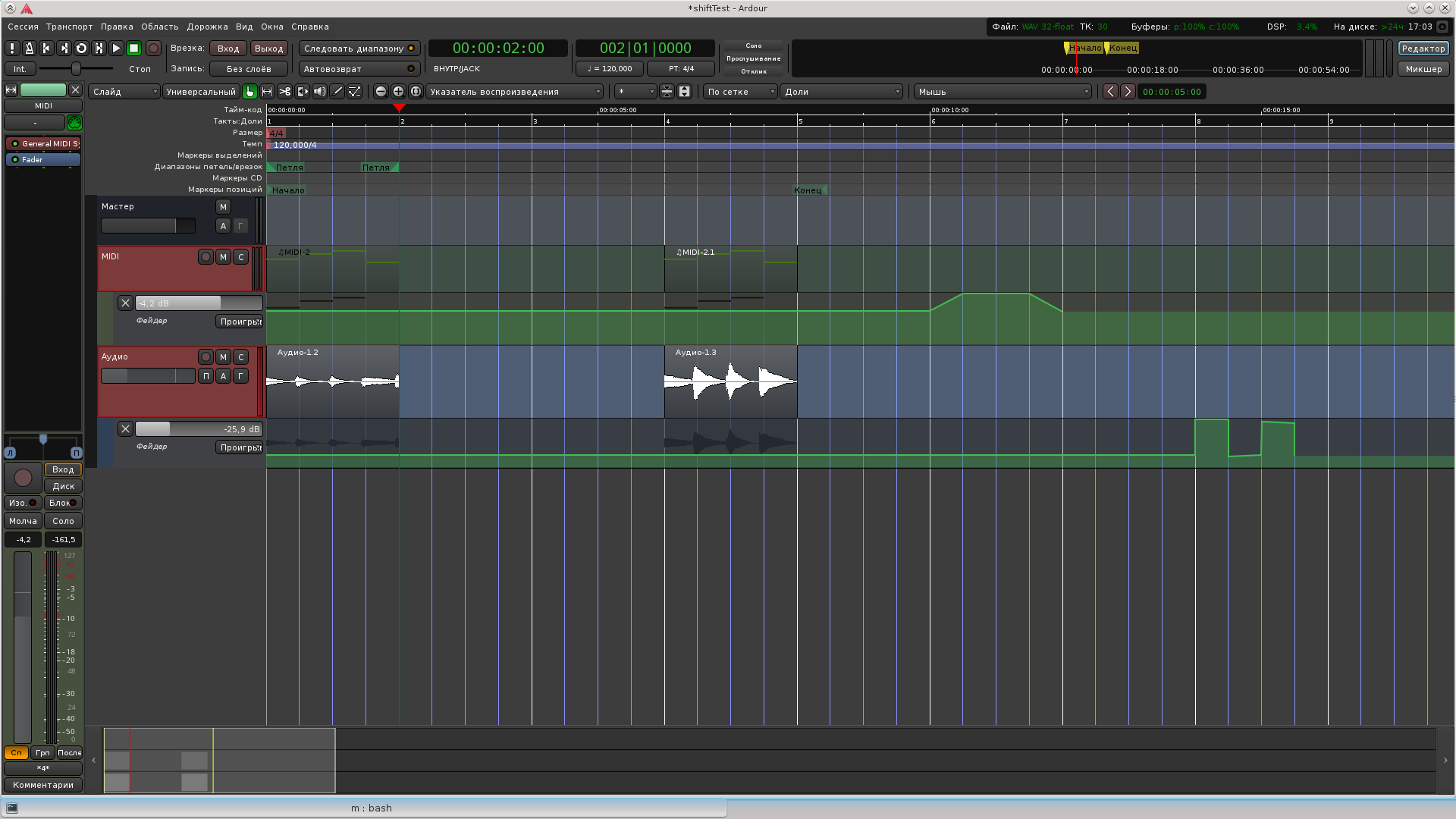

before inserting.png (109,847 bytes)
before inserting.png (109,847 bytes)


2018-12-21 13:42




2018-12-21 13:57

administrator   ~0020547


It seems the issue is that

1. Region is moved. the automation below the region (if any) moves along with the region
2. Automation after insert point is shifted.

Result: the automation below a region moves twice as far, and all automation that's in between this double distance is lost.


2018-12-21 16:35

administrator   ~0020548

Fixed in Ardour 6.0-pre0-1439 df666326f


2020-04-19 20:18

developer   ~0023788

Issue has been closed automatically, by Trigger Close Plugin.
Feel free to re-open with additional information if you think the issue is not resolved.

Issue History

Date Modified Username Field Change
2018-12-21 13:41 ITicDigger New Issue
2018-12-21 13:41 ITicDigger File Added: after inserting.png
2018-12-21 13:42 ITicDigger File Added: before inserting.png
2018-12-21 13:42 ITicDigger File Added: sets.png
2018-12-21 13:50 x42 Relationship added related to 0005044
2018-12-21 13:57 x42 Note Added: 0020547
2018-12-21 16:35 x42 Note Added: 0020548
2018-12-21 16:35 x42 Status new => resolved
2018-12-21 16:35 x42 Resolution open => fixed
2018-12-21 16:35 x42 Assigned To => x42
2020-04-19 20:18 system Note Added: 0023788
2020-04-19 20:18 system Status resolved => closed
