Summary0002798: Wrong waveform display on second highest zoom level

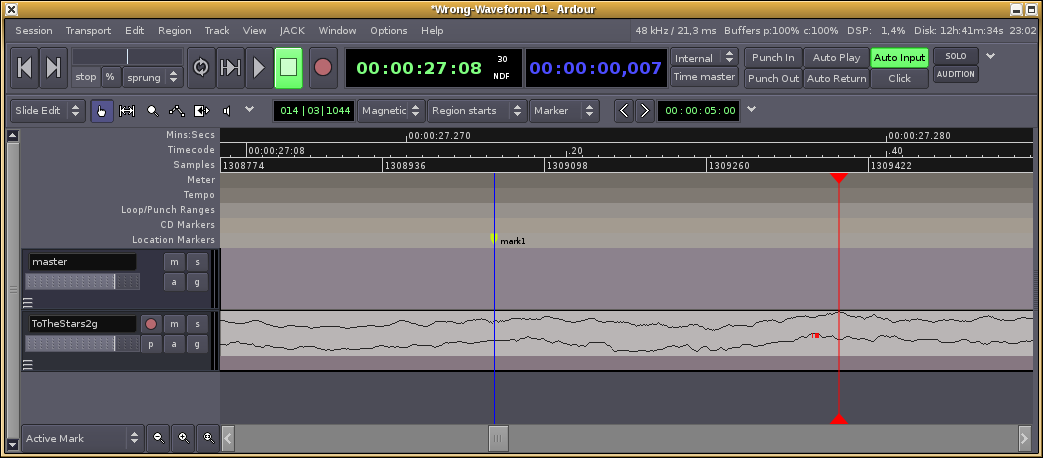

DescriptionOn the second highest zoom level the waveform is displayed with an offset from the other zoom levels. In this test this offset was about 345 samples or 7 milliseconds (see playhead, marker and delta display), but it seems to vary a little. This was to observe since the higest zoom level was changed from 2 to 1 frame per pixel in revision 5117.

Steps to reproduce:

1. create a new session
2. import (or maybe record) some audio to a new track
3. examine the zoom levels
4. Ah, I can see it! ;)

Screenshots attached.
TagsNo tags attached.

Relationships

has duplicate 0003495 closedpaul Waveform seems to move around playhead at different zoom levels
related to 0003513 feedback splitting a region seems to delay the second part by a few samples

Activities

2009-07-28 21:35




2009-07-28 21:35




2009-07-28 21:36




nettings

2009-08-15 01:52

manager   ~0006530

i can reproduce this with current 2.0-ongoing, r5499. looks like worth investigating...

nettings

2009-08-31 20:20

manager   ~0006621

interestingly, the "rectified" waveform view is also broken in the second-highest zoom level (as of r5499)

the_CLA

2009-08-31 20:49

reporter   ~0006622

A few days ago I noticed that, too. Plus on highest zoom level the waveform suddenly switches from rectified to traditional view. But I'm not sure if this is an intended feature - maybe for findig zero crossings easier. *shrugs*

2009-08-31 20:50




screwtop

2009-10-17 05:46

reporter   ~0006716

I'm sure I've seen this bug affecting only some of the tracks in the session. I've also seen it affect the third-highest zoom level (but to a lesser extent) when zooming in from fully zoomed out. Zooming back out one click from the second-highest zoom level still shows the misalignment, but zooming back out from max zoom only shows a problem with the second-highest zoom level (the level-3 display then looks correct).

2009-10-21 14:31




2009-10-21 14:31




2009-10-21 14:32




2009-10-21 14:32




2009-10-21 14:32




screwtop

2009-10-21 14:34

reporter   ~0006843

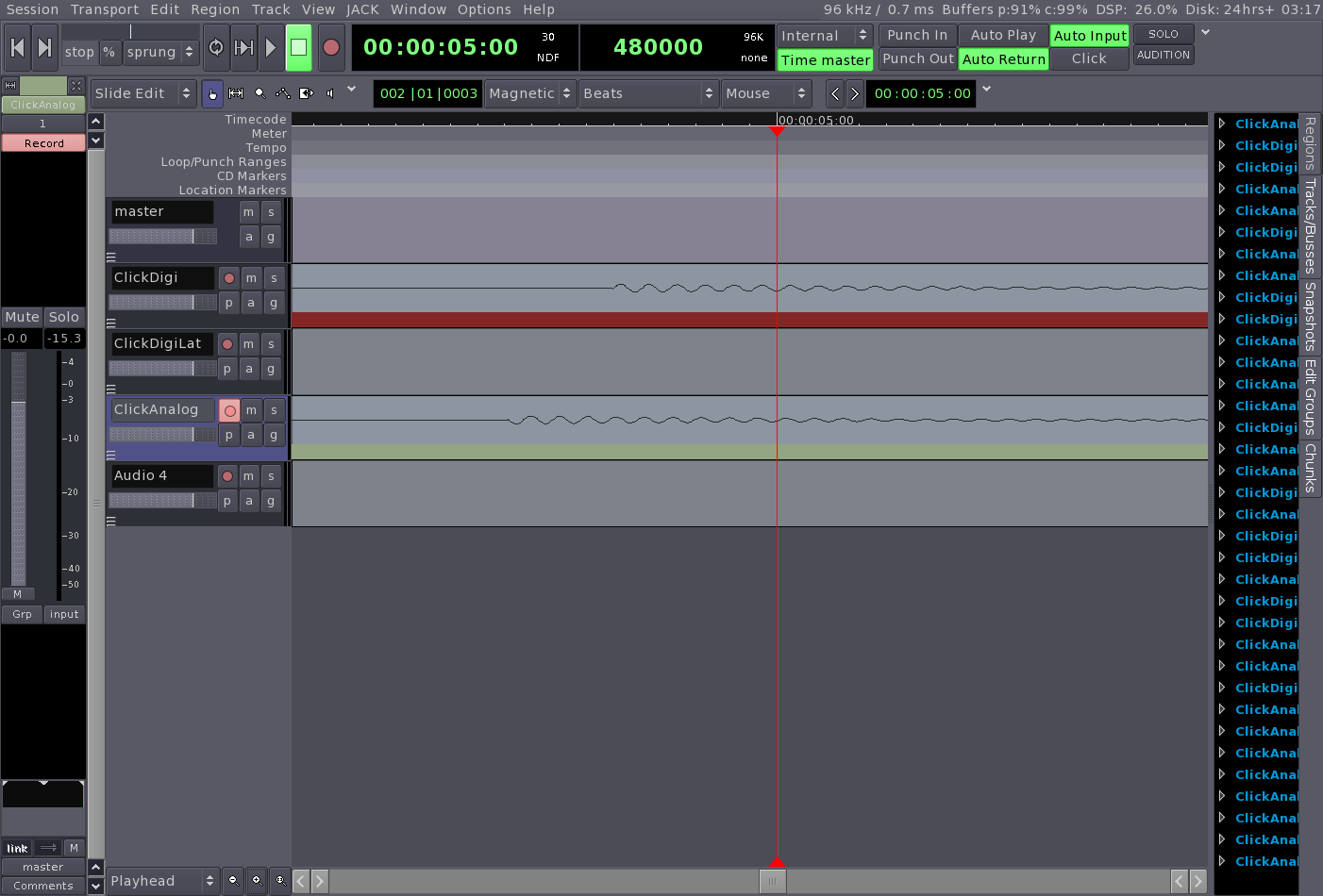

I've attached some screenshots showing the problem affecting different tracks by different amounts, and also affected the third-highest zoom level.

seegwen

2010-05-02 13:45

reporter   ~0007758

Last edited: 2010-05-02 22:20

 Having the second highest zoom issue with 2.8.7 release. (negative offset)

edit: I can still reproduce it in rev 7044 amd64 build.

2010-07-16 22:57



zoom-issue.tar.gz (69,880 bytes)

Pablo_F

2010-07-16 22:59

reporter   ~0008454

Same problem in Ardour 2.8.11 from rev. 7387.
I have attached more screenshots (zoom-issue.tar.gz)
To my eyes, the problem is only in the second highest zomm level

colinf

2010-07-19 10:19

updater   ~0008483

It looks to me like the waveform is aligned correctly at the start of the region at all zoom levels, but at the second highest zoom level the waveform is drawn slightly too short to fill the space required.

Something funny in AudioSource::read_peaks_with_fpp(), perhaps?

nettings

2013-01-22 21:54

manager   ~0014564

This issue is resolved in 3.0-SVN.
