Summary0009962: Ardour crashes when attempting to make a multi-track recording over USB using Linux
DescriptionI have a Behringer XR18 and want to record multi-track via USB.
USB Sends are set. Start Ardour, select "New Session", "Recording Session",

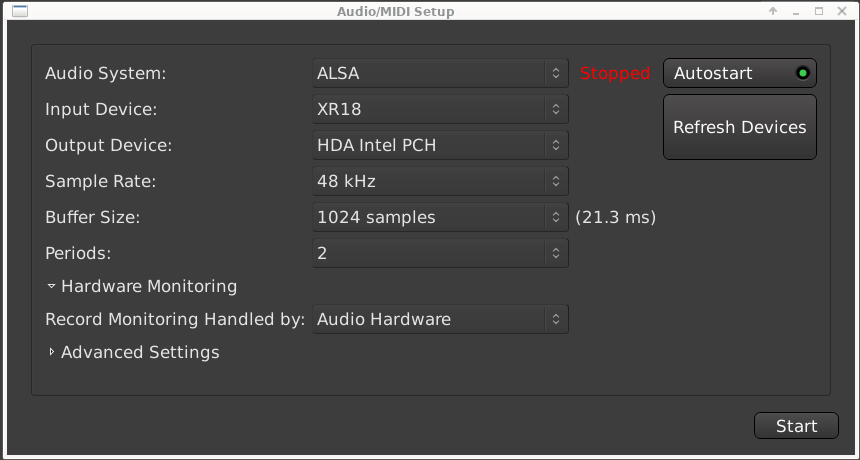

and the Audio/MIDI Setup as in the attached screenshot.

When I press start, I get a window with "indexing (something)", an Ardour windows opens and craches within one second.

Rebooted all systems, same result.

From dmesg:

[16398.264016] usb 1-6: new high-speed USB device number 8 using xhci_hcd
[16398.412985] usb 1-6: New USB device found, idVendor=1397, idProduct=00d4, bcdDevice= 2.00
[16398.413000] usb 1-6: New USB device strings: Mfr=1, Product=3, SerialNumber=2
[16398.413008] usb 1-6: Product: XR18
[16398.413013] usb 1-6: Manufacturer: BEHRINGER
[16398.413018] usb 1-6: SerialNumber: production 03
[17274.394300] AlsaAudioSlave[24513]: segfault at 7f52a4276002 ip 00007f52a588d4c0 sp 00007f52a4258dd8 error 4 in libalsa_audiobackend.so[7f52a5862000+30000] likely on CPU 0 (core 0, socket 0)
[17274.394334] Code: 48 89 c1 49 c1 e0 02 66 66 2e 0f 1f 84 00 00 00 00 00 66 66 2e 0f 1f 84 00 00 00 00 00 66 66 2e 0f 1f 84 00 00 00 00 00 66 90 <0f> be 51 02 44 0f b7 19 66 0f ef c0 c1 e2 10 81 e2 00 00 ff 00 44

The only libalsa_audiobackend.so on the system:
/var/lib/flatpak/app/org.ardour.Ardour/x86_64/stable/8c53d2a59ce83c935787d22178cfabf338922a6541f551c472fbb8d361d391c7/files/lib/ardour8/backends/

Some system info
Hardware Lenovo ThinkCentre M920q, Intel i5-8500T, 16GB.
Debian stable (v12.11), fully updated

I first used the Free/Demo Version, later today replaced by the flathub version.
The log is from this last version.
Steps To ReproduceConnect XR18 with USB
Start Ardour
select "New Session"
"Recording Session"
   and the Audio/MIDI Setup as in the attached screenshot.
press start
I get a window with "indexing (something)", an Ardour windows opens and craches within one second.
TagsNo tags attached.

Activities

frits97

2025-08-01 17:00

reporter


x42

2025-08-02 22:37

administrator   ~0029365

Does it work when you use the XR18 for both input and output?

Could you get a backtrace? The source-code line number where Ardour crashes would be interesting here:
https://ardour.org/debugging_ardour
