View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0009870ardourbugspublic2024-12-15 17:072024-12-15 17:56
ReporterHuBandiT Assigned To
PrioritynormalSeverityblockReproducibilityalways
Status newResolutionopen
PlatformMicrosoftOSWindowsOS Version10
Product Version8.10
Summary0009870: Ardour records digital silence, even though the 5 second history waveforms on the recording window do show signal being present
DescriptionI am unable to record audio with Ardour: it records digital silence in place of the audio signal that is confirmed to be coming in on the 5 second history waveforms on the recording window. Please see attached screenshots.

---8<------8<---

I started experiencing this beginning with the fix for 0009798 I think, and it still is happening with Ardour 8.10. Win10.

This is both happening with my 18-channel Midas MR18 over ASIO, as well as my notebook internal microphone over MME. In both cases the history waveforms show incoming signal as normal, but digital silence gets recorded instead.

As a result I am unable to record with (these versions of) Ardour.

Thank you in advance.
Steps To ReproduceSteps to reproduce:
- Launch Ardour creating a new recording session
- in the recorder window
-- arm tracks for recording
-- visually confirm that signal is coming in on channels
-- record
-- stop recording
-- check recorded audio visually and by playing back

Expected result.
- audio appears in the editor window as waveforms, and can be heard when playing back and meters show levels properly

Actual result:
- in the editor window, zooming into tracks shows digital silence (flat line)
- region properties window shows peak amplitude at -inf dBFS
- playing back the recording causes no signal to appear on level meters (everything stays at -inf)
TagsNo tags attached.

Activities

HuBandiT

2024-12-15 17:07

reporter

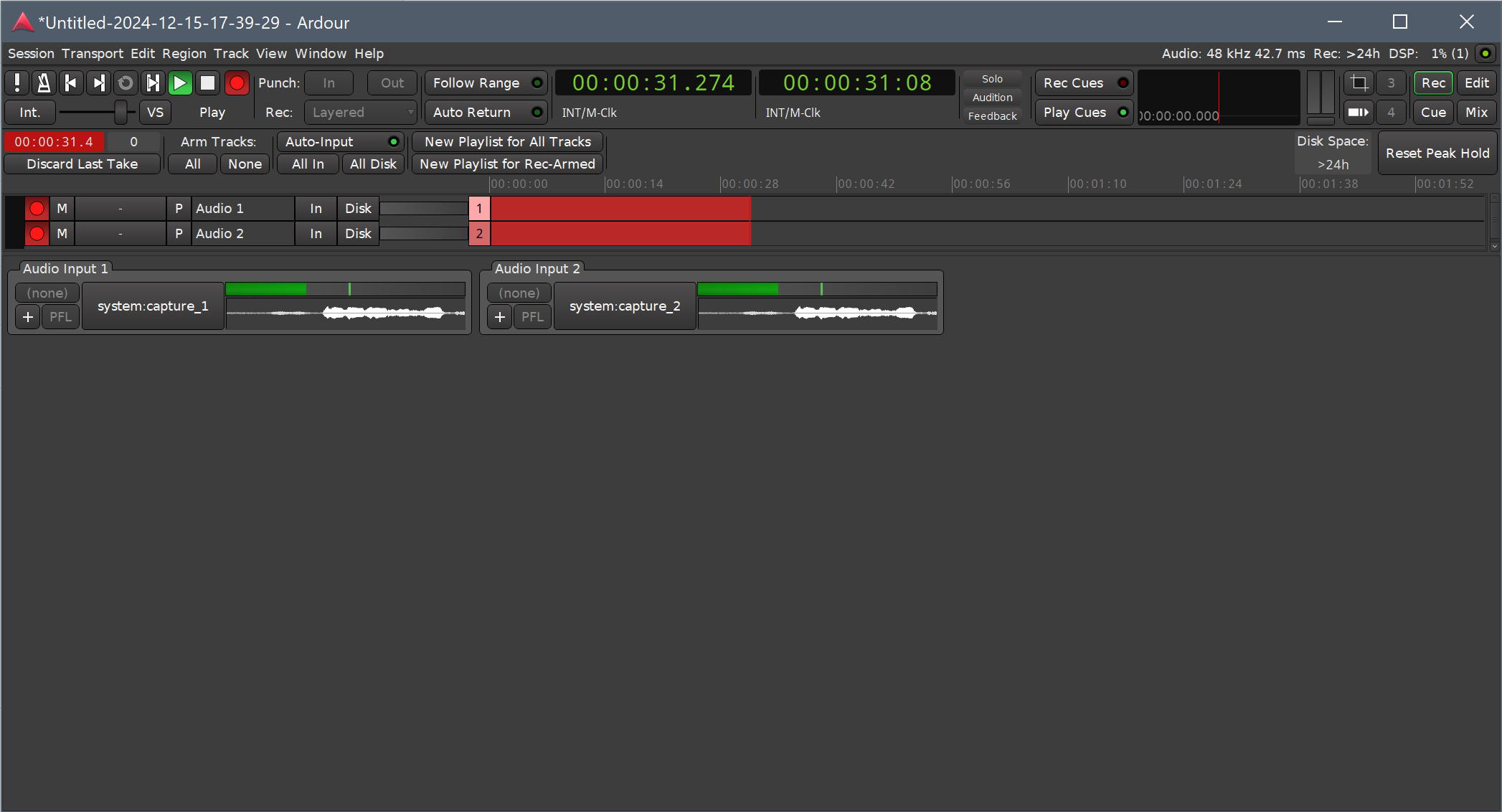

2024.12.15. Ardour records digital silence - recording screen.png (111,236 bytes)
2024.12.15. Ardour records digital silence - recording screen.png (111,236 bytes)
2024.12.15. Ardour records digital silence - editing screen.png (156,518 bytes)
2024.12.15. Ardour records digital silence - editing screen.png (156,518 bytes)
2024.12.15. Ardour records digital silence - region properties confirms digital silence.png (28,333 bytes)
2024.12.15. Ardour records digital silence - region properties confirms digital silence.png (28,333 bytes)
2024.12.15. Ardour records digital silence - recorded a three hours long live session as digital silence.png (29,022 bytes)
2024.12.15. Ardour records digital silence - recorded a three hours long live session as digital silence.png (29,022 bytes)

HuBandiT

2024-12-15 17:13

reporter   ~0029155

(Attaching my session file.)
2024.12.15. Ardour records digital silence.ardour (52,937 bytes)
<?xml version="1.0" encoding="UTF-8"?>
<Session version="7003" name="2024.12.15. Ardour records digital silence" sample-rate="48000" session-range-is-free="1" id-counter="395" rg-counter="2" name-counter="1" event-counter="0" vca-counter="1">
  <ProgramVersion created-with="Ardour 8.10" modified-with="Ardour 8.10"/>
  <EngineHints backend="PortAudio" input-device="Microsoft Sound Mapper - Input" output-device="Microsoft Sound Mapper - Output"/>
  <MIDIPorts>
    <Port name="Cue Control in" type="midi" direction="Input"/>
    <Port name="MIDI Clock out" type="midi" direction="Output"/>
    <Port name="MMC in" type="midi" direction="Input"/>
    <Port name="MMC out" type="midi" direction="Output"/>
    <Port name="MTC out" type="midi" direction="Output"/>
    <Port name="Scene in" type="midi" direction="Input"/>
    <Port name="Scene out" type="midi" direction="Output"/>
    <Port name="x-virtual-keyboard" type="midi" direction="Output"/>
  </MIDIPorts>
  <Config>
    <Option name="use-region-fades" value="1"/>
    <Option name="use-transport-fades" value="1"/>
    <Option name="use-monitor-fades" value="1"/>
    <Option name="native-file-data-format" value="FormatFloat"/>
    <Option name="native-file-header-format" value="WAVE"/>
    <Option name="auto-play" value="0"/>
    <Option name="auto-return" value="0"/>
    <Option name="auto-input" value="1"/>
    <Option name="triggerbox-overrides-disk-monitoring" value="1"/>
    <Option name="cue-behavior" value="FollowCues"/>
    <Option name="punch-in" value="0"/>
    <Option name="punch-out" value="0"/>
    <Option name="count-in" value="0"/>
    <Option name="session-monitoring" value=""/>
    <Option name="record-mode" value="RecLayered"/>
    <Option name="draw-opaque-midi_regions" value="0"/>
    <Option name="subframes-per-frame" value="100"/>
    <Option name="timecode-format" value="timecode_30"/>
    <Option name="minitimeline-span" value="120"/>
    <Option name="raid-path" value=""/>
    <Option name="audio-search-path" value=""/>
    <Option name="midi-search-path" value=""/>
    <Option name="track-name-number" value="0"/>
    <Option name="track-name-take" value="1"/>
    <Option name="take-name" value="Take2"/>
    <Option name="jack-time-master" value="1"/>
    <Option name="use-video-sync" value="0"/>
    <Option name="video-pullup" value="0"/>
    <Option name="external-sync" value="0"/>
    <Option name="insert-merge-policy" value="InsertMergeRelax"/>
    <Option name="timecode-offset" value="0"/>
    <Option name="timecode-offset-negative" value="1"/>
    <Option name="slave-timecode-offset" value=" 00:00:00:00"/>
    <Option name="timecode-generator-offset" value=" 00:00:00:00"/>
    <Option name="midi-copy-is-fork" value="1"/>
    <Option name="tracks-follow-session-time" value="0"/>
    <Option name="realtime-export" value="0"/>
    <Option name="use-surround-master" value="0"/>
    <Option name="use-video-file-fps" value="0"/>
    <Option name="videotimeline-pullup" value="1"/>
    <Option name="wave-amplitude-zoom" value="0"/>
    <Option name="wave-zoom-factor" value="2"/>
    <Option name="show-summary" value="1"/>
    <Option name="show-group-tabs" value="1"/>
    <Option name="show-region-fades" value="1"/>
    <Option name="show-busses-on-meterbridge" value="0"/>
    <Option name="show-master-on-meterbridge" value="1"/>
    <Option name="show-midi-on-meterbridge" value="1"/>
    <Option name="show-rec-on-meterbridge" value="1"/>
    <Option name="show-mute-on-meterbridge" value="0"/>
    <Option name="show-solo-on-meterbridge" value="0"/>
    <Option name="show-monitor-on-meterbridge" value="0"/>
    <Option name="show-name-on-meterbridge" value="1"/>
    <Option name="show-fader-on-meterbridge" value="0"/>
    <Option name="meterbridge-label-height" value="0"/>
    <Option name="show-master-bus-comment-on-load" value="0"/>
    <Option name="default-time-domain" value="AudioTime"/>
  </Config>
  <Metadata/>
  <Sources>
    <Source name="Audio 1-1.wav" take-id="2024-12-15 17.41.30" type="audio" flags="" id="234" timestamp="1734280890" natural-position="a0" captured-for="Audio 1" channel="0" origin="Audio 1-1.wav" gain="1"/>
    <Source name="Audio 2-1.wav" take-id="2024-12-15 17.41.30" type="audio" flags="" id="302" timestamp="1734280890" natural-position="a0" captured-for="Audio 2" channel="0" origin="Audio 2-1.wav" gain="1"/>
  </Sources>
  <TriggerBindings/>
  <Regions>
    <Region name="Audio 1-1" muted="0" opaque="1" locked="0" video-locked="0" automatic="1" whole-file="1" import="0" external="0" sync-marked="0" left-of-split="0" right-of-split="0" hidden="0" position-locked="0" valid-transients="0" start="a0" length="a22747885440@a0" sync-position="a0" ancestral-start="a0" ancestral-length="a0@a0" stretch="1" shift="1" layering-index="0" tags="" contents="0" rgroup="0" envelope-active="0" default-fade-in="0" default-fade-out="0" fade-in-active="1" fade-out-active="1" fade-before-fx="0" scale-amplitude="1" id="330" type="audio" first-edit="nothing" source-0="234" master-source-0="234" channels="1"/>
    <Region name="Audio 2-1" muted="0" opaque="1" locked="0" video-locked="0" automatic="1" whole-file="1" import="0" external="0" sync-marked="0" left-of-split="0" right-of-split="0" hidden="0" position-locked="0" valid-transients="0" start="a0" length="a22747885440@a0" sync-position="a0" ancestral-start="a0" ancestral-length="a0@a0" stretch="1" shift="1" layering-index="0" tags="" contents="0" rgroup="0" envelope-active="0" default-fade-in="0" default-fade-out="0" fade-in-active="1" fade-out-active="1" fade-before-fx="0" scale-amplitude="1" id="361" type="audio" first-edit="nothing" source-0="302" master-source-0="302" channels="1"/>
  </Regions>
  <Selection/>
  <Locations>
    <Location id="356" name="session" start="a0" end="a22747885440" flags="IsSessionRange" locked="0" timestamp="1734280890" cue="0"/>
  </Locations>
  <Bundles/>
  <VCAManager/>
  <Routes>
    <Route version="7003" id="71" name="Master" default-type="audio" strict-io="1" volume-applies-to-output="1" active="1" denormal-protection="0" meter-point="MeterOutput" disk-io-point="DiskIOPreFader" meter-type="MeterK14">
      <PresentationInfo order="0" flags="MasterOut,OrderSet" color="2855877119"/>
      <Controllable name="solo" id="79" flags="Toggle,RealTime" value="0" self-solo="0" soloed-by-upstream="0" soloed-by-downstream="0"/>
      <Controllable name="solo-iso" id="85" flags="Toggle,RealTime" value="0" solo-isolated="0"/>
      <Controllable name="solo-safe" id="87" flags="Toggle" value="0" solo-safe="0"/>
      <IO name="Master" id="99" direction="Input" default-type="audio">
        <Port name="Master/audio_in 1" type="audio" direction="Input">
          <Connection other="Audio 1/audio_out 1"/>
          <Connection other="Audio 2/audio_out 1"/>
          <Connection other="Audio 1/audio_out 1"/>
          <Connection other="Audio 2/audio_out 1"/>
        </Port>
        <Port name="Master/audio_in 2" type="audio" direction="Input">
          <Connection other="Audio 1/audio_out 2"/>
          <Connection other="Audio 2/audio_out 2"/>
          <Connection other="Audio 1/audio_out 2"/>
          <Connection other="Audio 2/audio_out 2"/>
        </Port>
      </IO>
      <IO name="Master" id="100" direction="Output" default-type="audio">
        <Port name="Master/audio_out 1" type="audio" direction="Output">
          <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output"/>
          <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output" other="system:playback_1"/>
        </Port>
        <Port name="Master/audio_out 2" type="audio" direction="Output">
          <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output"/>
          <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output" other="system:playback_2"/>
        </Port>
      </IO>
      <MuteMaster mute-point="PostFader,Listen,Main,SurroundSend" muted="0"/>
      <Controllable name="mute" id="81" flags="Toggle,RealTime" value="0"/>
      <Controllable name="phase" id="83" flags="Toggle" value="0" phase-invert="00"/>
      <Controllable name="mastervolume" id="107" flags="GainLike,NotAutomatable" value="1"/>
      <Automation>
        <AutomationList automation-id="solo" id="78" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="solo-iso" id="84" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="solo-safe" id="86" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="mute" id="80" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="phase" id="82" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
      </Automation>
      <Pannable>
        <Controllable name="pan-azimuth" id="90" flags="" value="0.5"/>
        <Controllable name="pan-width" id="94" flags="" value="0"/>
        <Controllable name="pan-elevation" id="92" flags="" value="0"/>
        <Controllable name="pan-frontback" id="96" flags="" value="0"/>
        <Controllable name="pan-lfe" id="98" flags="" value="0"/>
        <Automation>
          <AutomationList automation-id="pan-azimuth" id="89" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-elevation" id="91" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-width" id="93" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-frontback" id="95" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-lfe" id="97" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
        </Automation>
      </Pannable>
      <Processor id="102" name="Polarity" active="1" user-latency="0" use-user-latency="0" type="polarity"/>
      <Processor id="103" name="Amp" active="1" user-latency="0" use-user-latency="0" type="trim">
        <Automation>
          <AutomationList automation-id="trim" id="76" interpolation-style="Logarithmic" time-domain="AudioTime" state="Off"/>
        </Automation>
        <Controllable name="trimcontrol" id="77" flags="GainLike" value="1"/>
      </Processor>
      <Processor id="101" name="Amp" active="1" user-latency="0" use-user-latency="0" type="amp">
        <Automation>
          <AutomationList automation-id="gain" id="74" interpolation-style="Exponential" time-domain="AudioTime" state="Off"/>
        </Automation>
        <Controllable name="gaincontrol" id="75" flags="GainLike" value="1"/>
      </Processor>
      <Processor id="105" name="Master" active="1" user-latency="0" use-user-latency="0" own-input="1" own-output="0" output="Master" type="main-outs" role="Main">
        <PannerShell bypassed="0" user-panner="" linked-to-route="1"/>
      </Processor>
      <Processor id="104" name="meter-Master" active="1" user-latency="0" use-user-latency="0" type="meter"/>
      <Slavable/>
    </Route>
    <Route version="7003" id="170" name="Audio 1" default-type="audio" strict-io="0" active="1" denormal-protection="0" meter-point="MeterInput" disk-io-point="DiskIOPreFader" meter-type="MeterPeak" audio-playlist="232" saved-meter-point="MeterPostFader" alignment-choice="Automatic" mode="Normal">
      <PresentationInfo order="1" flags="AudioTrack,OrderSet" color="4289374975"/>
      <Controllable name="solo" id="195" flags="Toggle,RealTime" value="0" self-solo="0" soloed-by-upstream="0" soloed-by-downstream="0"/>
      <Controllable name="solo-iso" id="201" flags="Toggle,RealTime" value="0" solo-isolated="0"/>
      <Controllable name="solo-safe" id="203" flags="Toggle" value="0" solo-safe="0"/>
      <IO name="Audio 1" id="215" direction="Input" default-type="audio">
        <Port name="Audio 1/audio_in 1" type="audio" direction="Input"/>
      </IO>
      <IO name="Audio 1" id="216" direction="Output" default-type="audio">
        <Port name="Audio 1/audio_out 1" type="audio" direction="Output">
          <Connection other="Master/audio_in 1"/>
          <Connection other="Master/audio_in 1"/>
        </Port>
        <Port name="Audio 1/audio_out 2" type="audio" direction="Output">
          <Connection other="Master/audio_in 2"/>
          <Connection other="Master/audio_in 2"/>
        </Port>
      </IO>
      <MuteMaster mute-point="PostFader,Listen,Main,SurroundSend" muted="0"/>
      <Controllable name="mute" id="197" flags="Toggle,RealTime" value="0"/>
      <Controllable name="phase" id="199" flags="Toggle" value="0" phase-invert="0"/>
      <Automation>
        <AutomationList automation-id="solo" id="194" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="solo-iso" id="200" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="solo-safe" id="202" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="mute" id="196" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="rec-enable" id="226" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="rec-safe" id="228" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="phase" id="198" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="monitor" id="230" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
      </Automation>
      <Pannable>
        <Controllable name="pan-azimuth" id="206" flags="" value="0.5"/>
        <Controllable name="pan-width" id="210" flags="" value="0"/>
        <Controllable name="pan-elevation" id="208" flags="" value="0"/>
        <Controllable name="pan-frontback" id="212" flags="" value="0"/>
        <Controllable name="pan-lfe" id="214" flags="" value="0"/>
        <Automation>
          <AutomationList automation-id="pan-azimuth" id="205" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-elevation" id="207" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-width" id="209" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-frontback" id="211" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-lfe" id="213" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
        </Automation>
      </Pannable>
      <Processor id="221" name="meter-Audio 1" active="1" user-latency="0" use-user-latency="0" type="meter"/>
      <Processor id="225" name="recorder:Audio 1" active="1" user-latency="0" use-user-latency="0" type="diskwriter" record-safe="0"/>
      <Processor id="224" name="player:Audio 1" active="1" user-latency="0" use-user-latency="0" type="diskreader"/>
      <Processor id="173" name="TriggerBox" active="1" user-latency="0" use-user-latency="0" type="triggerbox" data-type="audio" order="0">
        <Triggers>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="0" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="1" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="2" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="3" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="4" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="5" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="6" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="7" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="8" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="9" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="10" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="11" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="12" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="13" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="14" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="15" segment-tempo="0" start="a0"/>
        </Triggers>
      </Processor>
      <Processor id="218" name="Polarity" active="1" user-latency="0" use-user-latency="0" type="polarity"/>
      <Processor id="220" name="Amp" active="1" user-latency="0" use-user-latency="0" type="trim">
        <Automation>
          <AutomationList automation-id="trim" id="192" interpolation-style="Logarithmic" time-domain="AudioTime" state="Off"/>
        </Automation>
        <Controllable name="trimcontrol" id="193" flags="GainLike" value="1"/>
      </Processor>
      <Processor id="217" name="Amp" active="1" user-latency="0" use-user-latency="0" type="amp">
        <Automation>
          <AutomationList automation-id="gain" id="190" interpolation-style="Exponential" time-domain="AudioTime" state="Off"/>
        </Automation>
        <Controllable name="gaincontrol" id="191" flags="GainLike" value="1"/>
      </Processor>
      <Processor id="222" name="Audio 1" active="1" user-latency="0" use-user-latency="0" own-input="1" own-output="0" output="Audio 1" type="main-outs" role="Main">
        <PannerShell bypassed="0" user-panner="" linked-to-route="1"/>
      </Processor>
      <Slavable/>
      <Controllable name="monitor" id="231" flags="RealTime" value="0" monitoring=""/>
      <Controllable name="rec-safe" id="229" flags="Toggle,RealTime" value="0"/>
      <Controllable name="rec-enable" id="227" flags="Toggle,RealTime" value="1"/>
    </Route>
    <Route version="7003" id="238" name="Audio 2" default-type="audio" strict-io="0" active="1" denormal-protection="0" meter-point="MeterInput" disk-io-point="DiskIOPreFader" meter-type="MeterPeak" audio-playlist="300" saved-meter-point="MeterPostFader" alignment-choice="Automatic" mode="Normal">
      <PresentationInfo order="2" flags="AudioTrack,OrderSet" color="3563743999"/>
      <Controllable name="solo" id="263" flags="Toggle,RealTime" value="0" self-solo="0" soloed-by-upstream="0" soloed-by-downstream="0"/>
      <Controllable name="solo-iso" id="269" flags="Toggle,RealTime" value="0" solo-isolated="0"/>
      <Controllable name="solo-safe" id="271" flags="Toggle" value="0" solo-safe="0"/>
      <IO name="Audio 2" id="283" direction="Input" default-type="audio">
        <Port name="Audio 2/audio_in 1" type="audio" direction="Input"/>
      </IO>
      <IO name="Audio 2" id="284" direction="Output" default-type="audio">
        <Port name="Audio 2/audio_out 1" type="audio" direction="Output">
          <Connection other="Master/audio_in 1"/>
          <Connection other="Master/audio_in 1"/>
        </Port>
        <Port name="Audio 2/audio_out 2" type="audio" direction="Output">
          <Connection other="Master/audio_in 2"/>
          <Connection other="Master/audio_in 2"/>
        </Port>
      </IO>
      <MuteMaster mute-point="PostFader,Listen,Main,SurroundSend" muted="0"/>
      <Controllable name="mute" id="265" flags="Toggle,RealTime" value="0"/>
      <Controllable name="phase" id="267" flags="Toggle" value="0" phase-invert="0"/>
      <Automation>
        <AutomationList automation-id="solo" id="262" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="solo-iso" id="268" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="solo-safe" id="270" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="mute" id="264" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="rec-enable" id="294" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="rec-safe" id="296" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="phase" id="266" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
        <AutomationList automation-id="monitor" id="298" interpolation-style="Discrete" time-domain="AudioTime" state="Off"/>
      </Automation>
      <Pannable>
        <Controllable name="pan-azimuth" id="274" flags="" value="0.5"/>
        <Controllable name="pan-width" id="278" flags="" value="0"/>
        <Controllable name="pan-elevation" id="276" flags="" value="0"/>
        <Controllable name="pan-frontback" id="280" flags="" value="0"/>
        <Controllable name="pan-lfe" id="282" flags="" value="0"/>
        <Automation>
          <AutomationList automation-id="pan-azimuth" id="273" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-elevation" id="275" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-width" id="277" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-frontback" id="279" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
          <AutomationList automation-id="pan-lfe" id="281" interpolation-style="Linear" time-domain="BeatTime" state="Off"/>
        </Automation>
      </Pannable>
      <Processor id="289" name="meter-Audio 2" active="1" user-latency="0" use-user-latency="0" type="meter"/>
      <Processor id="293" name="recorder:Audio 2" active="1" user-latency="0" use-user-latency="0" type="diskwriter" record-safe="0"/>
      <Processor id="292" name="player:Audio 2" active="1" user-latency="0" use-user-latency="0" type="diskreader"/>
      <Processor id="241" name="TriggerBox" active="1" user-latency="0" use-user-latency="0" type="triggerbox" data-type="audio" order="1">
        <Triggers>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="0" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="1" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="2" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="3" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="4" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="5" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="6" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="7" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="8" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="9" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="10" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="11" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="12" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="13" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="14" segment-tempo="0" start="a0"/>
          <Trigger name="" gain="1" color="3200171775" follow-count="1" use-follow-length="0" follow-length="1|0|0" legato="0" velocity-effect="0" follow-action-probability="0" quantization="1|0|0" launch-style="OneShot" follow-action-0="Again:0" follow-action-1="Stop:0" stretchable="1" cue_isolated="0" allow_patch_changes="1" stretch_mode="Crisp" index="15" segment-tempo="0" start="a0"/>
        </Triggers>
      </Processor>
      <Processor id="286" name="Polarity" active="1" user-latency="0" use-user-latency="0" type="polarity"/>
      <Processor id="288" name="Amp" active="1" user-latency="0" use-user-latency="0" type="trim">
        <Automation>
          <AutomationList automation-id="trim" id="260" interpolation-style="Logarithmic" time-domain="AudioTime" state="Off"/>
        </Automation>
        <Controllable name="trimcontrol" id="261" flags="GainLike" value="1"/>
      </Processor>
      <Processor id="285" name="Amp" active="1" user-latency="0" use-user-latency="0" type="amp">
        <Automation>
          <AutomationList automation-id="gain" id="258" interpolation-style="Exponential" time-domain="AudioTime" state="Off"/>
        </Automation>
        <Controllable name="gaincontrol" id="259" flags="GainLike" value="1"/>
      </Processor>
      <Processor id="290" name="Audio 2" active="1" user-latency="0" use-user-latency="0" own-input="1" own-output="0" output="Audio 2" type="main-outs" role="Main">
        <PannerShell bypassed="0" user-panner="" linked-to-route="1"/>
      </Processor>
      <Slavable/>
      <Controllable name="monitor" id="299" flags="RealTime" value="0" monitoring=""/>
      <Controllable name="rec-safe" id="297" flags="Toggle,RealTime" value="0"/>
      <Controllable name="rec-enable" id="295" flags="Toggle,RealTime" value="1"/>
    </Route>
  </Routes>
  <Playlists>
    <Playlist id="232" name="Audio 1.1" type="audio" orig-track-id="170" pgroup-id="2024-12-15 17.41.30" shared-with-ids="" frozen="0" combine-ops="0">
      <Region name="Audio 1-1.1" muted="0" opaque="1" locked="0" video-locked="0" automatic="0" whole-file="0" import="0" external="0" sync-marked="0" left-of-split="0" right-of-split="0" hidden="0" position-locked="0" valid-transients="0" start="a0" length="a22747885440@a0" sync-position="a0" ancestral-start="a0" ancestral-length="a0@a0" stretch="1" shift="1" layering-index="0" tags="" contents="0" rgroup="16" envelope-active="0" default-fade-in="0" default-fade-out="0" fade-in-active="1" fade-out-active="1" fade-before-fx="0" scale-amplitude="1" id="338" type="audio" first-edit="nothing" source-0="234" master-source-0="234" channels="1">
        <Envelope default="yes"/>
        <FadeIn>
          <AutomationList automation-id="fadein" id="339" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1.0000000116860974e-07
a5880 0.047581917240722742
a17640 0.095056046128510166
a29400 0.14231484248572931
a41160 0.18925124993221623
a52920 0.23575894240242462
a64680 0.28173256500817656
a76440 0.32706797270138427
a88200 0.37166246619609461
a99960 0.41541502461541735
a111720 0.45822653433631649
a123480 0.50000001351385825
a135240 0.54064083177629574
a147000 0.5800569245933096
a158760 0.6181590018317934
a170520 0.65486075002673527
a182280 0.69007902790898956
a188160 0.72373402244207363
a199920 0.75574959107584527
a211680 0.78605314034223239
a223440 0.81457596850756187
a235200 0.84125352362782713
a246960 0.86602541938889765
a258720 0.88883548505684096
a270480 0.90963200949777623
a282240 0.92836792879818764
a294000 0.94500083077800312
a305760 0.95949299759422635
a317520 0.97181157768799009
a329280 0.98192869618882905
a341040 0.98982144793751214
a352800 0.99547193120317901
a376320 1
</events>
          </AutomationList>
        </FadeIn>
        <InverseFadeIn>
          <AutomationList automation-id="fadein" id="340" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1
a23520 0.99547193120317901
a35280 0.98982144793751214
a47040 0.98192869618882905
a58800 0.97181157768799009
a70560 0.95949299759422635
a82320 0.94500083077800312
a94080 0.92836792879818764
a105840 0.90963200949777623
a117600 0.88883548505684096
a129360 0.86602541938889765
a141120 0.84125352362782713
a152880 0.81457596850756187
a164640 0.78605314034223239
a176400 0.75574959107584527
a188160 0.72373402244207363
a194040 0.69007902790898956
a205800 0.65486075002673527
a217560 0.6181590018317934
a229320 0.5800569245933096
a241080 0.54064083177629574
a252840 0.50000001351385825
a264600 0.45822653433631649
a276360 0.41541502461541735
a288120 0.37166246619609461
a299880 0.32706797270138427
a311640 0.28173256500817656
a323400 0.23575894240242462
a335160 0.18925124993221623
a346920 0.14231484248572931
a358680 0.095056046128510166
a370440 0.047581917240722742
a376320 1.0000000116860974e-07
</events>
          </AutomationList>
        </InverseFadeIn>
        <FadeOut>
          <AutomationList automation-id="fadeout" id="341" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1
a5880 0.99886733911550885
a17640 0.99547192230339399
a29400 0.98982144127527472
a41160 0.98192869618882905
a52920 0.97181156665131863
a64680 0.9594929712165241
a76440 0.94500081546684744
a88200 0.92836792879818764
a99960 0.90963199005079642
a111720 0.88883544215458044
a123480 0.86602539598220885
a135240 0.84125352362782713
a147000 0.81457594135313838
a158760 0.78605308246601313
a170520 0.75574956041960206
a182280 0.72373402244207363
a188160 0.69007902790898956
a199920 0.65486071464754436
a211680 0.61815892823618979
a223440 0.5800568864602571
a235200 0.54064083177629574
a246960 0.49999997297228316
a258720 0.45822645111753457
a270480 0.41541498203247024
a282240 0.37166246619609478
a294000 0.32706792846270311
a305760 0.28173247517396005
a317520 0.2357588969086416
a329280 0.18925124993221634
a341040 0.1423147961488434
a352800 0.095055952925701945
a376320 1.0000000116860974e-07
</events>
          </AutomationList>
        </FadeOut>
        <InverseFadeOut>
          <AutomationList automation-id="fadeout" id="342" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1.0000000116860974e-07
a23520 0.095055952925701945
a35280 0.1423147961488434
a47040 0.18925124993221634
a58800 0.2357588969086416
a70560 0.28173247517396005
a82320 0.32706792846270311
a94080 0.37166246619609478
a105840 0.41541498203247024
a117600 0.45822645111753457
a129360 0.49999997297228316
a141120 0.54064083177629574
a152880 0.5800568864602571
a164640 0.61815892823618979
a176400 0.65486071464754436
a188160 0.69007902790898956
a194040 0.72373402244207363
a205800 0.75574956041960206
a217560 0.78605308246601313
a229320 0.81457594135313838
a241080 0.84125352362782713
a252840 0.86602539598220885
a264600 0.88883544215458044
a276360 0.90963199005079642
a288120 0.92836792879818764
a299880 0.94500081546684744
a311640 0.9594929712165241
a323400 0.97181156665131863
a335160 0.98192869618882905
a346920 0.98982144127527472
a358680 0.99547192230339399
a370440 0.99886733911550885
a376320 1
</events>
          </AutomationList>
        </InverseFadeOut>
      </Region>
    </Playlist>
    <Playlist id="300" name="Audio 2.1" type="audio" orig-track-id="238" pgroup-id="2024-12-15 17.41.30" shared-with-ids="" frozen="0" combine-ops="0">
      <Region name="Audio 2-1.1" muted="0" opaque="1" locked="0" video-locked="0" automatic="0" whole-file="0" import="0" external="0" sync-marked="0" left-of-split="0" right-of-split="0" hidden="0" position-locked="0" valid-transients="0" start="a0" length="a22747885440@a0" sync-position="a0" ancestral-start="a0" ancestral-length="a0@a0" stretch="1" shift="1" layering-index="0" tags="" contents="0" rgroup="16" envelope-active="0" default-fade-in="0" default-fade-out="0" fade-in-active="1" fade-out-active="1" fade-before-fx="0" scale-amplitude="1" id="369" type="audio" first-edit="nothing" source-0="302" master-source-0="302" channels="1">
        <Envelope default="yes"/>
        <FadeIn>
          <AutomationList automation-id="fadein" id="370" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1.0000000116860974e-07
a5880 0.047581917240722742
a17640 0.095056046128510166
a29400 0.14231484248572931
a41160 0.18925124993221623
a52920 0.23575894240242462
a64680 0.28173256500817656
a76440 0.32706797270138427
a88200 0.37166246619609461
a99960 0.41541502461541735
a111720 0.45822653433631649
a123480 0.50000001351385825
a135240 0.54064083177629574
a147000 0.5800569245933096
a158760 0.6181590018317934
a170520 0.65486075002673527
a182280 0.69007902790898956
a188160 0.72373402244207363
a199920 0.75574959107584527
a211680 0.78605314034223239
a223440 0.81457596850756187
a235200 0.84125352362782713
a246960 0.86602541938889765
a258720 0.88883548505684096
a270480 0.90963200949777623
a282240 0.92836792879818764
a294000 0.94500083077800312
a305760 0.95949299759422635
a317520 0.97181157768799009
a329280 0.98192869618882905
a341040 0.98982144793751214
a352800 0.99547193120317901
a376320 1
</events>
          </AutomationList>
        </FadeIn>
        <InverseFadeIn>
          <AutomationList automation-id="fadein" id="371" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1
a23520 0.99547193120317901
a35280 0.98982144793751214
a47040 0.98192869618882905
a58800 0.97181157768799009
a70560 0.95949299759422635
a82320 0.94500083077800312
a94080 0.92836792879818764
a105840 0.90963200949777623
a117600 0.88883548505684096
a129360 0.86602541938889765
a141120 0.84125352362782713
a152880 0.81457596850756187
a164640 0.78605314034223239
a176400 0.75574959107584527
a188160 0.72373402244207363
a194040 0.69007902790898956
a205800 0.65486075002673527
a217560 0.6181590018317934
a229320 0.5800569245933096
a241080 0.54064083177629574
a252840 0.50000001351385825
a264600 0.45822653433631649
a276360 0.41541502461541735
a288120 0.37166246619609461
a299880 0.32706797270138427
a311640 0.28173256500817656
a323400 0.23575894240242462
a335160 0.18925124993221623
a346920 0.14231484248572931
a358680 0.095056046128510166
a370440 0.047581917240722742
a376320 1.0000000116860974e-07
</events>
          </AutomationList>
        </InverseFadeIn>
        <FadeOut>
          <AutomationList automation-id="fadeout" id="372" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1
a5880 0.99886733911550885
a17640 0.99547192230339399
a29400 0.98982144127527472
a41160 0.98192869618882905
a52920 0.97181156665131863
a64680 0.9594929712165241
a76440 0.94500081546684744
a88200 0.92836792879818764
a99960 0.90963199005079642
a111720 0.88883544215458044
a123480 0.86602539598220885
a135240 0.84125352362782713
a147000 0.81457594135313838
a158760 0.78605308246601313
a170520 0.75574956041960206
a182280 0.72373402244207363
a188160 0.69007902790898956
a199920 0.65486071464754436
a211680 0.61815892823618979
a223440 0.5800568864602571
a235200 0.54064083177629574
a246960 0.49999997297228316
a258720 0.45822645111753457
a270480 0.41541498203247024
a282240 0.37166246619609478
a294000 0.32706792846270311
a305760 0.28173247517396005
a317520 0.2357588969086416
a329280 0.18925124993221634
a341040 0.1423147961488434
a352800 0.095055952925701945
a376320 1.0000000116860974e-07
</events>
          </AutomationList>
        </FadeOut>
        <InverseFadeOut>
          <AutomationList automation-id="fadeout" id="373" interpolation-style="Curved" time-domain="AudioTime" state="Off">
            <events>a0 1.0000000116860974e-07
a23520 0.095055952925701945
a35280 0.1423147961488434
a47040 0.18925124993221634
a58800 0.2357588969086416
a70560 0.28173247517396005
a82320 0.32706792846270311
a94080 0.37166246619609478
a105840 0.41541498203247024
a117600 0.45822645111753457
a129360 0.49999997297228316
a141120 0.54064083177629574
a152880 0.5800568864602571
a164640 0.61815892823618979
a176400 0.65486071464754436
a188160 0.69007902790898956
a194040 0.72373402244207363
a205800 0.75574956041960206
a217560 0.78605308246601313
a229320 0.81457594135313838
a241080 0.84125352362782713
a252840 0.86602539598220885
a264600 0.88883544215458044
a276360 0.90963199005079642
a288120 0.92836792879818764
a299880 0.94500081546684744
a311640 0.9594929712165241
a323400 0.97181156665131863
a335160 0.98192869618882905
a346920 0.98982144127527472
a358680 0.99547192230339399
a370440 0.99886733911550885
a376320 1
</events>
          </AutomationList>
        </InverseFadeOut>
      </Region>
    </Playlist>
  </Playlists>
  <UnusedPlaylists/>
  <RouteGroups/>
  <Click>
    <IO name="Click" id="68" direction="Output" default-type="audio">
      <Port name="Click/audio_out 1" type="audio" direction="Output">
        <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output"/>
        <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output" other="system:playback_1"/>
      </Port>
      <Port name="Click/audio_out 2" type="audio" direction="Output">
        <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output"/>
        <ExtConnection for="PortAudio;MME;Microsoft Sound Mapper - Output" other="system:playback_2"/>
      </Port>
    </IO>
    <Processor id="69" name="Amp" active="1" user-latency="0" use-user-latency="0" type="amp">
      <Automation>
        <AutomationList automation-id="gain" id="66" interpolation-style="Exponential" time-domain="AudioTime" state="Off"/>
      </Automation>
      <Controllable name="gaincontrol" id="67" flags="GainLike" value="1"/>
    </Processor>
  </Click>
  <Speakers>
    <Speaker azimuth="240" elevation="0" distance="1"/>
    <Speaker azimuth="120" elevation="0" distance="1"/>
  </Speakers>
  <TempoMap superclocks-per-second="282240000">
    <Tempos>
      <Tempo npm="120" enpm="120" note-type="4" type="Constant" locked-to-meter="0" continuing="0" active="1" sclock="0" quarters="0:0" bbt="1|1|0" omega="0"/>
    </Tempos>
    <Meters>
      <Meter note-value="4" divisions-per-bar="4" sclock="0" quarters="0:0" bbt="1|1|0"/>
    </Meters>
    <MusicTimes/>
  </TempoMap>
  <ControlProtocols>
    <Protocol name="Ableton Push 2" active="0" session-state="0"/>
    <Protocol name="ContourDesign" active="0" session-state="0"/>
    <Protocol name="Generic MIDI" active="0" session-state="0"/>
    <Protocol name="Mackie" active="0" session-state="0"/>
    <Protocol name="Novation Launch Control XL" active="0" session-state="0"/>
    <Protocol name="Novation LaunchKey 4" active="0" session-state="0"/>
    <Protocol name="Novation LaunchPad Mini" active="0" session-state="0"/>
    <Protocol name="Novation LaunchPad Pro" active="0" session-state="0"/>
    <Protocol name="Novation LaunchPad X" active="0" session-state="0"/>
    <Protocol name="Open Sound Control (OSC)" active="0" session-state="0"/>
    <Protocol name="PreSonus FaderPort" active="0" session-state="0"/>
    <Protocol name="PreSonus FaderPort16" active="0" session-state="0"/>
    <Protocol name="PreSonus FaderPort2" active="0" session-state="0"/>
    <Protocol name="PreSonus FaderPort8" active="0" session-state="0"/>
    <Protocol name="SSL 360: UF8 UF1" active="0" session-state="0"/>
    <Protocol name="Softube Console1" active="0" session-state="0"/>
    <Protocol name="Steinberg CC121" active="0" session-state="0"/>
    <Protocol name="Tascam US-2400" active="0" session-state="0"/>
    <Protocol name="WebSockets Server (Experimental)" active="0" session-state="0"/>
  </ControlProtocols>
  <Extra>
    <UI>
      <Window name="key-editor" visible="0" x-off="183" y-off="437" x-size="1011" y-size="494"/>
      <Window name="session-options-editor" visible="0" x-off="0" y-off="307" x-size="1141" y-size="528"/>
      <Window name="speaker-config" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="about" visible="0" x-off="0" y-off="0" x-size="424" y-size="676"/>
      <Window name="add-routes" visible="0" x-off="-1" y-off="-1" x-size="945" y-size="535"/>
      <Window name="add-video" visible="0" x-off="414" y-off="215" x-size="1811" y-size="1032"/>
      <Window name="inspector" visible="0" x-off="243" y-off="303" x-size="1360" y-size="1670"/>
      <Window name="audio-midi-setup" visible="0" x-off="1383" y-off="857" x-size="988" y-size="446"/>
      <Window name="video-export" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="script-manager" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="bundle-manager" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="locations" visible="0" x-off="411" y-off="15" x-size="399" y-size="533"/>
      <Window name="big-clock" visible="0" x-off="262" y-off="228" x-size="858" y-size="128"/>
      <Window name="big-transport" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="virtual-keyboard" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="library-downloader" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="audio-connection-manager" visible="0" x-off="391" y-off="190" x-size="654" y-size="1728"/>
      <Window name="midi-connection-manager" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="luawindow" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="idle-o-meter" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="io-plugins" visible="0" x-off="380" y-off="452" x-size="663" y-size="238"/>
      <Window name="plugin-manager" visible="0" x-off="536" y-off="824" x-size="2281" y-size="1099"/>
      <Window name="plugin-dsp-load" visible="0" x-off="583" y-off="672" x-size="2070" y-size="963"/>
      <Window name="dsp-statistics" visible="0" x-off="421" y-off="571" x-size="533" y-size="351"/>
      <Window name="transport-masters" visible="0" x-off="113" y-off="509" x-size="1563" y-size="312"/>
      <Window name="RPM-71" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="RPM-170" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <Window name="RPM-238" visible="0" x-off="-1" y-off="-1" x-size="-1" y-size="-1"/>
      <GUIObjectState>
        <Object id="rtav 71" height="94"/>
        <Object id="automation 75" height="94" visible="0"/>
        <Object id="automation 77" height="94" visible="0"/>
        <Object id="automation 71 12/0/0" height="94" visible="0"/>
        <Object id="automation 90" height="94" visible="0"/>
        <Object id="strip 71">
          <Object id="processor 101">
            <Object id="control 75" visible="0"/>
          </Object>
        </Object>
        <Object id="rtav 170" height="356"/>
        <Object id="automation 191" height="94" visible="0"/>
        <Object id="automation 193" height="94" visible="0"/>
        <Object id="automation 170 12/0/0" height="94" visible="0"/>
        <Object id="automation 206" height="94" visible="0"/>
        <Object id="rtav 238" height="356"/>
        <Object id="automation 259" height="94" visible="0"/>
        <Object id="automation 261" height="94" visible="0"/>
        <Object id="automation 238 12/0/0" height="94" visible="0"/>
        <Object id="automation 274" height="94" visible="0"/>
        <Object id="strip 170">
          <Object id="processor 217">
            <Object id="control 191" visible="0"/>
          </Object>
        </Object>
        <Object id="strip 238">
          <Object id="processor 285">
            <Object id="control 259" visible="0"/>
          </Object>
        </Object>
      </GUIObjectState>
    </UI>
    <Videomonitor active="0"/>
  </Extra>
  <Script lua="Lua 5.3">c2NyaXB0cyA9IHt9IA==</Script>
  <IOPlugins/>
</Session>
2024.12.15. Ardour records digital silence.ardour (52,937 bytes)

x42

2024-12-15 17:19

administrator   ~0029156

The inputs of the tracks are not connected to anything.

With default preferences, Ardour auto-connects inputs to newly created tracks, other than that you'll have to manually connect them.

x42

2024-12-15 17:19

administrator   ~0029157

see also https://prokoudine.github.io/ardour-tutorial/en/recording/recording-audio/

HuBandiT

2024-12-15 17:30

reporter   ~0029158

Thank you, and my apologies: indeed, I checked my preferences, and I had "connect track inputs" on "manually" instead of "automatically to physical inputs". :(

In that case, I would like to suggest a warning dialog for when clicking on the rec button with any record-armed tracks not connected to an input. (Happy to open a new issue for that if you desire.)

HuBandiT

2024-12-15 17:42

reporter   ~0029159

... or maybe the warning should appear when clicking the record arm on the track? maybe don't allow arming the track without an input selected? or display a dialog that includes a selection list for the input?

basically I feel that even though this probably a silly/noob mistake, it still nevertheless has disastrous enough results for the user so that it is worth for the software to proactively check for.

HuBandiT

2024-12-15 17:46

reporter   ~0029160

(a live gig can be busy and stressed, and one does not always have full time and attention to setting up the recording (which is a secondary thing in that situation), so it would be nice to have one less place where one can accidentally make a mistake)

x42

2024-12-15 17:56

administrator   ~0029161

Well, the meters on each track show a signal, and you can use Window > Meterbridge to get an overview of track signal levels.
(the reocder pages shows raw soundcard inputs)

It is also not uncommon to have some track inputs unconnected (e.g. reference tracks, or imported audio).

Then again it i a good idea to to show a warning if a track that is actively recording has no input connected.

Issue History

Date Modified Username Field Change
2024-12-15 17:07 HuBandiT New Issue
2024-12-15 17:07 HuBandiT File Added: 2024.12.15. Ardour records digital silence - recording screen.png
2024-12-15 17:07 HuBandiT File Added: 2024.12.15. Ardour records digital silence - editing screen.png
2024-12-15 17:07 HuBandiT File Added: 2024.12.15. Ardour records digital silence - region properties confirms digital silence.png
2024-12-15 17:07 HuBandiT File Added: 2024.12.15. Ardour records digital silence - recorded a three hours long live session as digital silence.png
2024-12-15 17:13 HuBandiT Note Added: 0029155
2024-12-15 17:13 HuBandiT File Added: 2024.12.15. Ardour records digital silence.ardour
2024-12-15 17:19 x42 Note Added: 0029156
2024-12-15 17:19 x42 File Added: editor-mixer-connet.png
2024-12-15 17:19 x42 File Added: input-connect-recorder.png
2024-12-15 17:19 x42 Note Added: 0029157
2024-12-15 17:30 HuBandiT Note Added: 0029158
2024-12-15 17:42 HuBandiT Note Added: 0029159
2024-12-15 17:46 HuBandiT Note Added: 0029160
2024-12-15 17:56 x42 Note Added: 0029161
