View Issue Details

IDProjectCategoryView StatusLast Update
0009343ardourbugspublic2023-05-25 16:31
Reporterunfa Assigned To
PrioritynormalSeveritymajorReproducibilityalways
Status newResolutionopen
PlatformMicrosoftOSWindowsOS Version10
Product Version7.4
Summary0009343: Export silence trim applies unwanted noise gating
DescriptionNoise trimming results in exports being noise-gated, poking holes in the audio.
This can be seen as black bars on the export analysis spectrogram.

Steps To ReproduceI'm attaching a test project.

Open it and export the session with silence trimming enabled.
You should see a striped spectrogram - with chunks of the audio missing.

Now disabled silence trimming and try again - the black bars will be gone.
Tagsaudio, export, silence, Trim

Activities

unfa

2023-05-22 17:34

reporter   ~0027670

Minimal reproduction project.

unfa

2023-05-22 17:34

reporter   ~0027671

I've also reported this to Paul on Discord:
https://discord.com/channels/344542072855986178/727813815454138408/1110258129410723850

x42

2023-05-23 00:22

administrator   ~0027673

Can you elaborate which settings you use to export?

I have just tested this and cannot reproduces this

unfa

2023-05-23 11:22

reporter   ~0027675

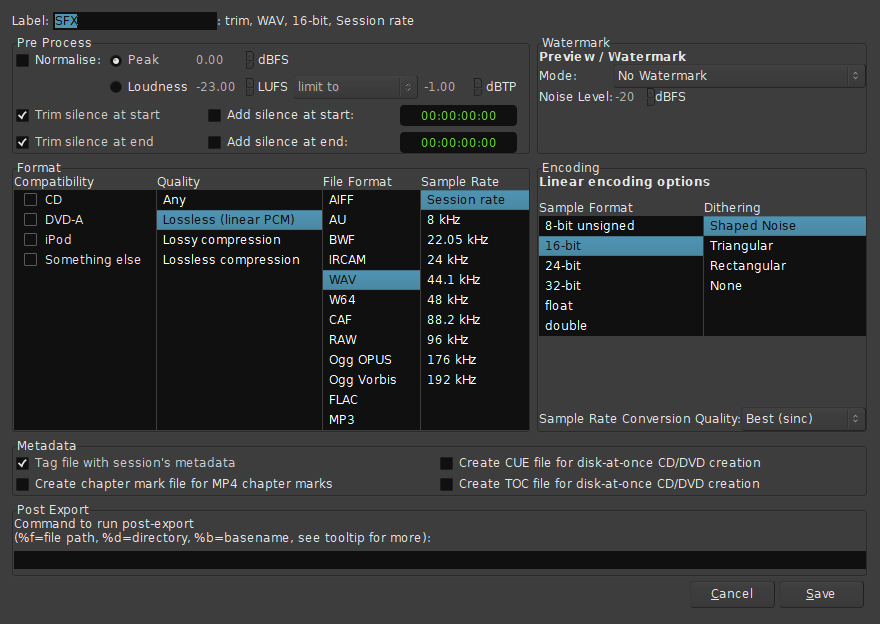

The only difference I see is that I selected Shaped Noise dither, and you have no dither selected here. I'll try with no dither on my side.

unfa

2023-05-23 11:27

reporter   ~0027676

I've tested with no dithering and I have the same (gated) result. Could you test on Windows?
Maybe this is caused by some dependency misbehaving on Windows, while working as expected on Linux?

I could provide you with remote access to my Windows machine (via RustDesk) for debugging, if that'd be useful.

unfa

2023-05-23 11:36

reporter   ~0027677

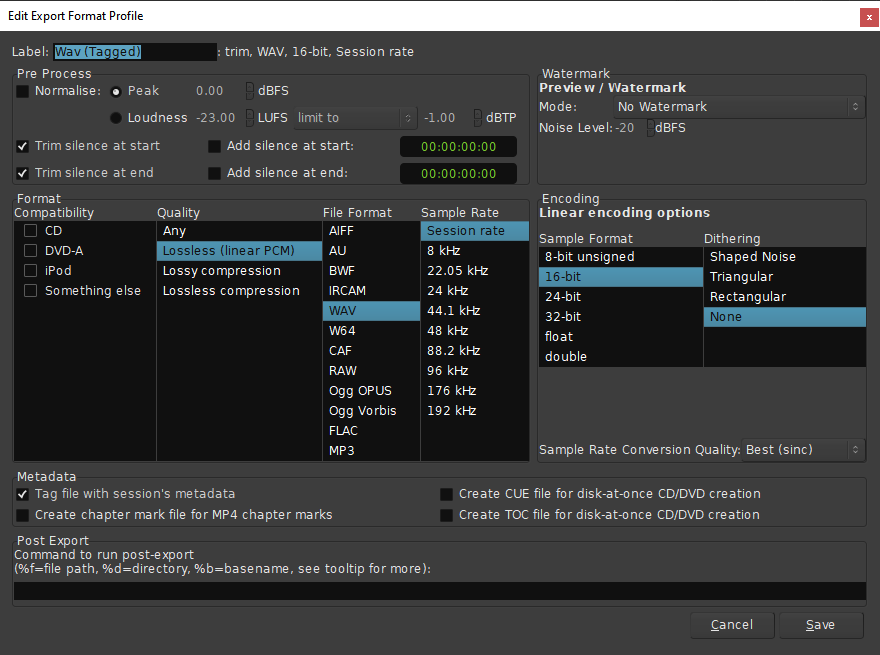

Here's an export from official 7.4.2.117 Windows 64-bit build with NO dithering:

unfa

2023-05-23 11:37

reporter   ~0027678

*7.4.117 (I typed some nonsense version number above, sorry)

x42

2023-05-25 16:02

administrator   ~0027682

I just tested this on Windows 11 (at Harrison), and cannot reproduce this there either.
I also cannot see how silence trim would cut out something in the middle. Can you double-check that disabling that option exports correctly?

BTW, have you edited %localappdata%\Ardour7\config and changed
 Option name="export-silence-threshold" value="-90"

x42

2023-05-25 16:31

administrator   ~0027683

While the backend should not matter, the data track -> master is still passed via the backend.
I have checked with both Dummy, and Portaudio/ASIO to be certain.
I've also re-imported the exported file and verified the loudness (Region > Loudness Analysis) and checked level with the "internal edit tool" to be within -67 and -57 dBFS.

This is mysterious..

Could you try with a different user (new preferences)?
