View Issue Details

IDCategoryLast Update
0008227bugs2020-07-15 16:29
ReporterderwokAssigned To
Reproducibilityalways
Status newResolutionopen
PlatformThinkpad T460sOSUbuntu LinuxOS Version20.04 LTS
Product Version6.0
Fixed in Version
Summary0008227: Ardour 6.0.0 crashes on session load
DescriptionUsing Ardour 6.0.0 on Ubuntu 20.04 LTS. With ALSA drivers (No Jack).
Worked on this session for several days. It survived multiple opens/closes.
Neither Sound nor MIDI setup changed in theses days.

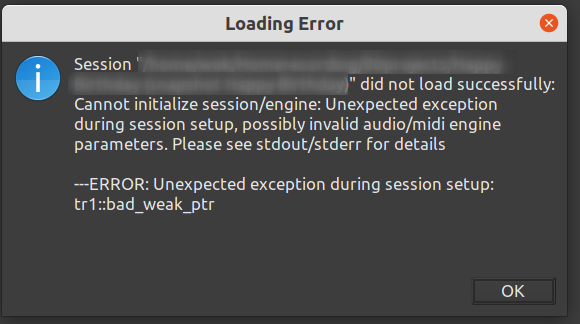

Now loading my session gives me a loading error (see screenshot) with Ardour crash after pressing OK.
Steps To ReproduceLoad the attached session file (sorry only XML, no audio / midi)
Additional InformationI tried:

    Check other sessions. OK: All my other stored project’s sessions load great without a hic-up. Some more complex, some less complex as this one…
    I rebooted. No help
    I unpluged all devices. Then replugged all devices. At no avail…
    I tried to load the session “Safe Mode: Disable all plugins”
    I tried to create a new session: OK, works

Console log follows:

wok@thinkpad:~$ Ardour6
Ardour6.0.0 (built using 6.0 and GCC version 6.3.0 20170516)
Ardour: [INFO]: Your system is configured to limit Ardour to 1048576 open files
Ardour: [INFO]: Loading system configuration file /opt/Ardour-6.0.0/etc/system_config
Ardour: [INFO]: Loading user configuration file /home/wok/.config/ardour6/config
Ardour: [INFO]: CPU vendor: GenuineIntel
Ardour: [INFO]: AVX-capable processor
Ardour: [INFO]: CPU brand: Intel(R) Core(TM) i7-6600U CPU @ 2.60GHz
Ardour: [INFO]: Using SSE optimized routines
Ardour: [INFO]: Loading plugin meta data file /opt/Ardour-6.0.0/share/plugin_metadata/plugin_tags
Ardour: [INFO]: Loading plugin meta data file /home/wok/.config/ardour6/plugin_metadata/plugin_tags
Cannot xinstall SIGPIPE error handler
Ardour: [INFO]: Loading default ui configuration file /opt/Ardour-6.0.0/etc/default_ui_config
Ardour: [INFO]: Loading user ui configuration file /home/wok/.config/ardour6/ui_config
Ardour: [INFO]: Loading 449 MIDI patches from /opt/Ardour-6.0.0/share/patchfiles
Gtk-Message: Failed to load module "canberra-gtk-module"
Ardour: [INFO]: Loading color file /opt/Ardour-6.0.0/share/themes/dark-ardour.colors
Ardour: [INFO]: Loading ui configuration file /opt/Ardour-6.0.0/etc/clearlooks.rc
Ardour: [INFO]: Loading bindings from /home/wok/.config/ardour6/ardour.keys
Loading ui configuration file /opt/Ardour-6.0.0/etc/clearlooks.rc
Found nothing along /home/wok/.config/ardour6/templates:/opt/Ardour-6.0.0/share/templates
Scanning folders for bundled LV2s: /opt/Ardour-6.0.0/lib/LV2
Set cursor set to default
 loading from ... templ is_new 0 bp 0
Butler drops pool trash
Log Messages:
INFO: AlsaAudioBackend: adjusted output channel count to match device.
INFO: AlsaAudioBackend: adjusted input channel count to match device.
INFO: harvid version: 803
INFO: Loading menus from /opt/Ardour-6.0.0/etc/ardour.menus
ERROR: Unexpected exception during session setup: tr1::bad_weak_ptr

Tagscrash load bad_weak_ptr

Activities

derwok

2020-06-11 18:27

reporter

Happy Birthday.ardour (269,237 bytes)

x42

2020-06-11 18:55

administrator   ~0024452

Last edited: 2020-06-11 19:30

View 2 revisions

The attached file allows to load the session again. Replace the "Happy Birthday.ardour" file in your session folder with the file.
The fix is to change line 3075 and disable <code>Protocol name="Generic MIDI" ... active="0"</code>

The bug is caused since you've apparently used MIDI-learn and the Control that was assigned is no longer available (a pitch-bend?). We'll need to address this in a future release.



Happy Birthday-2.ardour (269,237 bytes)

derwok

2020-06-11 19:42

reporter   ~0024453

There it is in all its beauty!!
You're my hero!! Big thanx!
(And thanks to the XML format that makes patching so easy) :-)
Never would have thought of this root cause.

But I need to say: yes: I tried to learn the pitch bend. But it did not work out while the session was open. Anyhow it got saved?!
The pitch bend had no effect on the setBfree organ. When I tried to load the (then crashing) session , the MIDI keyboard was all available with the same hardware pitch bend.
So it might be, that the problem is not during loading (the hardware was available and connected!), but that the problem occured even more early during assigning and saving bad information?

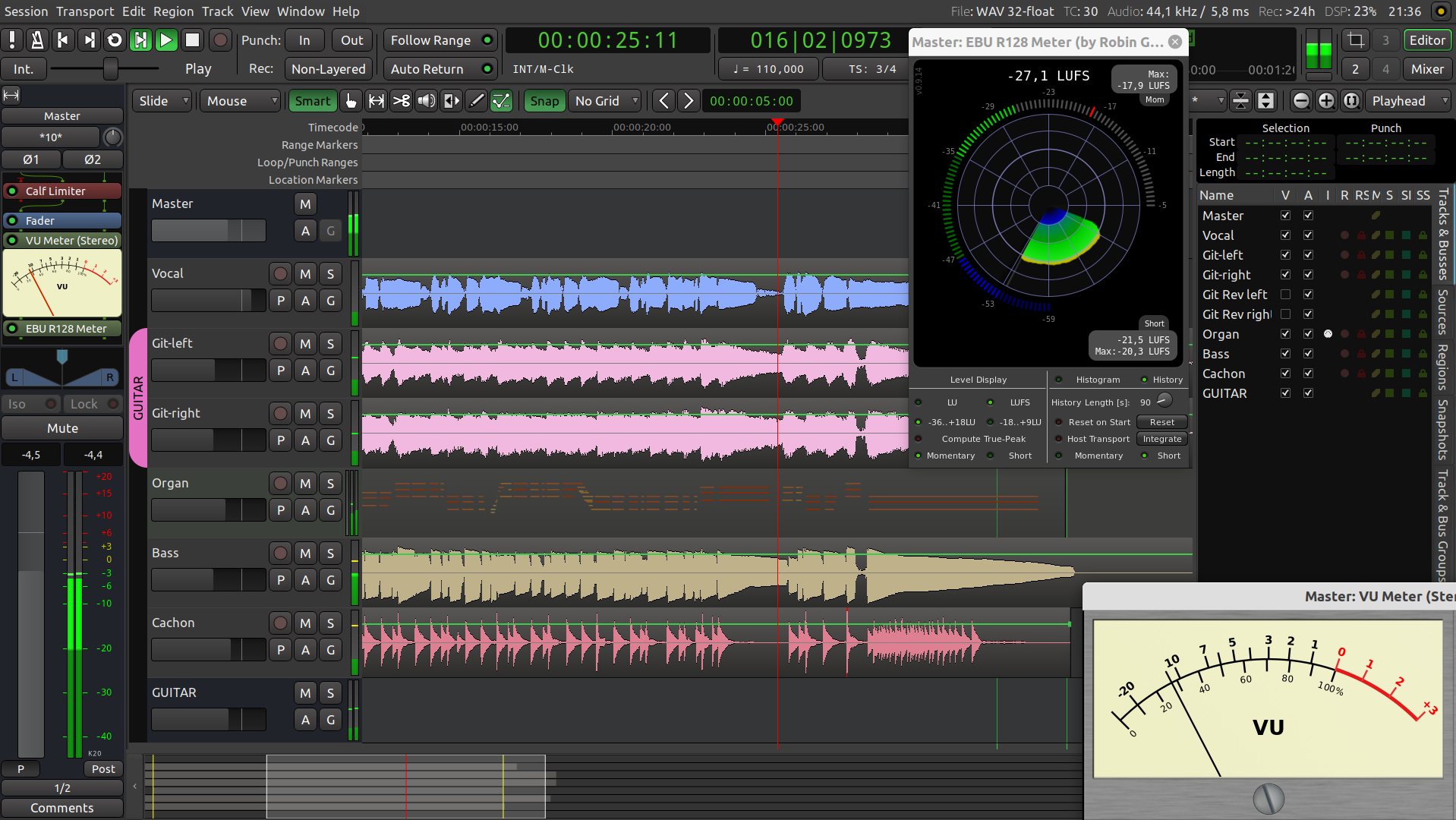

Anyway: thanks again! Just out of sheer happiness a photo of Ardour with my session loading again.

2020-06-11_21-36 Ardour Screenshot.png (389,423 bytes)

x42

2020-06-11 19:57

administrator   ~0024455

Well, organs have no pitch-bend, so it may have been "working", but setBfree does not respond since a Hammond B3 has not pitch-wheel.

Anyway, I'll leave this issue open. The root cause remains to be fixed and that session of yours will come in handy for this.

consint

2020-07-15 16:29

reporter   ~0024742

I just wanted to inform you that I had the same problem with a project today. Setting "Generic MIDI" to active="0" also worked for me. Thanks a lot!
