0008156: Time Grid display doesn't emphasize Beats, and editing MIDI is much harder than in Ardour 5 because of that

ID	Project	Category	View Status	Date Submitted	Last Update

0008156	ardour	other	public	2020-05-27 16:30	2020-07-09 09:02

Reporter	unfa	Assigned To
Priority	normal	Severity	minor	Reproducibility	always
Status	closed	Resolution	fixed
Platform	Some Other Linux	OS	Some Other Linux	OS Version	unknown
Product Version	6.0

Summary	0008156: Time Grid display doesn't emphasize Beats, and editing MIDI is much harder than in Ardour 5 because of that
Description	I found Ardour 6's way of displaying the time grid inferior to the way Ardour 5 did it. When I use Grid of 16ths or 32nd notes, the the beat lines are not emphasized within the bar. As a result I am spending a lot of time trying to count the lines from the start of the bar to see where are the beats. This makes me feel like I'm using the piano roll for the first time in my life. In Ardour 5 I can see the beat lines at all times, no matter what grid resolution or what zoom level I am currently using. In Ardour 6 that's not the case. I guess maybe the new design was an attempt to have a cleaner looking UI, but the functionality has greatly suffered in my opinion. Please emphasize the beats lines!

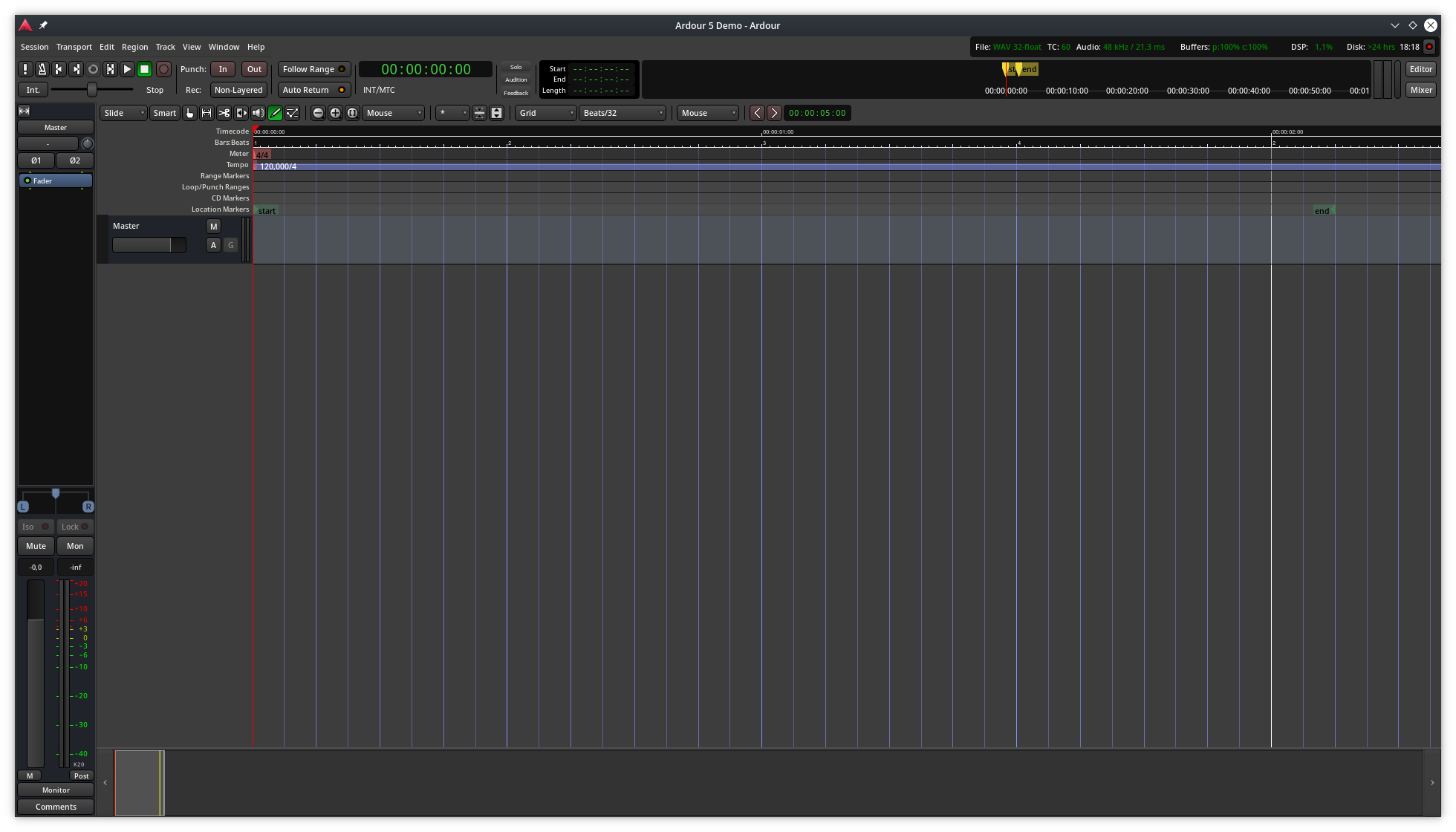

Additional Information	I'm attaching a screenshot from Ardour 5, where the beat lienes are emphasized.
Tags	grid, ui

unfa 2020-05-27 16:30 reporter	Grid 5.png (100,615 bytes) Grid 5.png (100,615 bytes)

unfa 2020-07-05 22:35 reporter ~0024607	You can see me struggle with the missing beat emphasis here, while sequencing a drum line: https://youtu.be/MmGLTOkNenc?t=3355

adam 2020-07-06 17:16 reporter ~0024621	In Preferences -> Appearance -> Colours "grid line minor" and "grid line micro" are the same colour, or close enough to not be discernible. It looks to me like "grid line minor" is the beat marker so you can change that to fix your problem now unfa. Do you want a PR to change the default colour?

adam 2020-07-07 03:06 reporter ~0024623	https://github.com/Ardour/ardour/pull/532

unfa 2020-07-07 07:48 reporter ~0024624	Yes, please, Thank you!

unfa 2020-07-09 09:02 reporter ~0024657	Fixed in Ardour 6.2

Date Modified	Username	Field	Change
2020-05-27 16:30	unfa	New Issue
2020-05-27 16:30	unfa	Tag Attached: grid
2020-05-27 16:30	unfa	Tag Attached: ui
2020-05-27 16:30	unfa	File Added: Grid 5.png
2020-07-05 22:35	unfa	Note Added: 0024607
2020-07-06 17:16	adam	Note Added: 0024621
2020-07-07 03:06	adam	Note Added: 0024623
2020-07-07 07:48	unfa	Note Added: 0024624
2020-07-09 09:02	unfa	Status	new => closed
2020-07-09 09:02	unfa	Resolution	open => fixed
2020-07-09 09:02	unfa	Note Added: 0024657
