Summary0005509: Loads of xruns in A3 but non in A2.
DescriptionI've be able to reproduce this in 3.1.3 and 3.1.10 on two different machines using the same sessions.

Here are the specs on the test sessions.
8 mono tracks and 1 stereo using .wav files setup at 96k at 32 float
No plugins are in use.

Jack is setup with the following
64 frames at 96k with 2 buffer periods using RT

Current System setup
Intel Core2 Duo 1.9GHz
4 GB RAM
Echo Layla 24/96
Ubuntu Studio 12.04 amd64
3.2.0-23-realtime
jackdmp version 1.9.9.5

xruns only appear during the loading of the session;
20:30:51.634 JACK connection graph change.
Sun May 26 20:30:51 2013: New client 'ardourprobe' with PID 6506
Sun May 26 20:30:51 2013: Client 'ardourprobe' with PID 6506 is out
20:31:00.131 JACK connection graph change.
20:31:00.293 JACK connection change.
Sun May 26 20:31:00 2013: New client 'ardour' with PID 6506
20:31:04.346 JACK connection graph change.
20:31:04.504 JACK connection change.
20:31:04.517 JACK connection graph change.
20:31:04.711 JACK connection change.
20:31:04.720 JACK connection graph change.
20:31:04.917 JACK connection change.
20:31:04.927 JACK connection graph change.
Sun May 26 20:31:04 2013: port 'ardour:MMC in' created
Sun May 26 20:31:04 2013: port 'ardour:MTC in' created
Sun May 26 20:31:04 2013: port 'ardour:MIDI control in' created
Sun May 26 20:31:04 2013: port 'ardour:MIDI clock in' created
Sun May 26 20:31:04 2013: port 'ardour:MMC out' created
Sun May 26 20:31:04 2013: port 'ardour:MTC out' created
Sun May 26 20:31:04 2013: port 'ardour:MIDI control out' created
Sun May 26 20:31:04 2013: port 'ardour:MIDI clock out' created
Sun May 26 20:31:04 2013: port 'ardour:master/audio_in 1' created
Sun May 26 20:31:04 2013: port 'ardour:master/audio_in 2' created
Sun May 26 20:31:04 2013: port 'ardour:master/audio_out 1' created
Sun May 26 20:31:04 2013: port 'ardour:master/audio_out 2' created
Sun May 26 20:31:04 2013: port 'ardour:Drums - Room/audio_in 1' created
Sun May 26 20:31:04 2013: port 'ardour:Drums - Room/audio_out 1' created
Sun May 26 20:31:04 2013: port 'ardour:Drums - Room/audio_out 2' created
Sun May 26 20:31:04 2013: port 'ardour:Kick/audio_in 1' created
Sun May 26 20:31:04 2013: port 'ardour:Kick/audio_out 1' created
Sun May 26 20:31:04 2013: port 'ardour:Kick/audio_out 2' created
Sun May 26 20:31:04 2013: port 'ardour:Overheads L/audio_in 1' created
Sun May 26 20:31:04 2013: port 'ardour:Overheads L/audio_out 1' created
Sun May 26 20:31:04 2013: port 'ardour:Overheads L/audio_out 2' created
Sun May 26 20:31:04 2013: port 'ardour:Overheads R/audio_in 1' created
Sun May 26 20:31:04 2013: port 'ardour:Overheads R/audio_out 1' created
Sun May 26 20:31:04 2013: port 'ardour:Overheads R/audio_out 2' created
Sun May 26 20:31:04 2013: port 'ardour:Bass/audio_in 1' created
Sun May 26 20:31:04 2013: port 'ardour:Bass/audio_out 1' created
Sun May 26 20:31:04 2013: port 'ardour:Bass/audio_out 2' created
Sun May 26 20:31:05 2013: port 'ardour:Drums/audio_in 1' created
Sun May 26 20:31:05 2013: port 'ardour:Drums/audio_in 2' created
20:31:05.122 JACK connection change.
20:31:05.136 JACK connection graph change.
20:31:05.327 JACK connection change.
20:31:05.346 JACK connection graph change.
20:31:05.533 JACK connection change.
20:31:05.539 JACK connection graph change.
20:31:05.739 JACK connection change.
20:31:05.750 JACK connection graph change.
20:31:05.948 JACK connection graph change.
Sun May 26 20:31:05 2013: port 'ardour:Drums/audio_out 1' created
Sun May 26 20:31:05 2013: port 'ardour:Drums/audio_out 2' created
Sun May 26 20:31:05 2013: port 'ardour:Guitar/audio_in 1' created
Sun May 26 20:31:05 2013: port 'ardour:Guitar/audio_out 1' created
Sun May 26 20:31:05 2013: port 'ardour:Guitar/audio_out 2' created
Sun May 26 20:31:05 2013: port 'ardour:Guitar_old/audio_in 1' created
Sun May 26 20:31:05 2013: port 'ardour:Guitar_old/audio_out 1' created
Sun May 26 20:31:05 2013: port 'ardour:Guitar_old/audio_out 2' created
Sun May 26 20:31:05 2013: port 'ardour:Vocal/audio_in 1' created
Sun May 26 20:31:05 2013: port 'ardour:Vocal/audio_out 1' created
Sun May 26 20:31:05 2013: port 'ardour:Vocal/audio_out 2' created
Sun May 26 20:31:05 2013: port 'ardour:LTC In/audio_in 1' created
Sun May 26 20:31:05 2013: port 'ardour:LTC Out/audio_out 1' created
Sun May 26 20:31:05 2013: port renamed: 'ardour:LTC In/audio_in 1' -> 'ardour:LTC-in'
Sun May 26 20:31:05 2013: port renamed: 'ardour:LTC Out/audio_out 1' -> 'ardour:LTC-out'
Sun May 26 20:31:05 2013: port 'ardour:click/audio_out 1' created
Sun May 26 20:31:05 2013: port 'ardour:click/audio_out 2' created
Sun May 26 20:31:05 2013: port 'ardour:auditioner/audio_out 1' created
Sun May 26 20:31:05 2013: Connecting 'ardour:auditioner/audio_out 1' to 'system:playback_1'
Sun May 26 20:31:05 2013: port 'ardour:auditioner/audio_out 2' created
Sun May 26 20:31:05 2013: Connecting 'ardour:auditioner/audio_out 2' to 'system:playback_2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Drums - Room/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Kick/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Overheads L/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Overheads R/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Bass/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Drums/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Guitar/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Guitar_old/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Vocal/audio_out 1' to 'ardour:master/audio_in 1'
Sun May 26 20:31:05 2013: Connecting 'ardour:Drums - Room/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Kick/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Overheads L/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Overheads R/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Bass/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Drums/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Guitar/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Guitar_old/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:Vocal/audio_out 2' to 'ardour:master/audio_in 2'
Sun May 26 20:31:05 2013: Connecting 'ardour:master/audio_out 1' to 'system:playback_1'
Sun May 26 20:31:05 2013: Connecting 'ardour:master/audio_out 2' to 'system:playback_2'
Sun May 26 20:31:05 2013: Connecting 'system:capture_1' to 'ardour:Drums - Room/audio_in 1'
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 50 port_dst = 45
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 51 port_dst = 46
Sun May 26 20:31:05 2013: Connecting 'system:capture_2' to 'ardour:Kick/audio_in 1'
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 53 port_dst = 45
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 54 port_dst = 46
Sun May 26 20:31:05 2013: Connecting 'system:capture_5' to 'ardour:Overheads L/audio_in 1'
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 56 port_dst = 45
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 57 port_dst = 46
Sun May 26 20:31:05 2013: Connecting 'system:capture_6' to 'ardour:Overheads R/audio_in 1'
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 59 port_dst = 45
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 60 port_dst = 46
Sun May 26 20:31:05 2013: Connecting 'system:capture_7' to 'ardour:Bass/audio_in 1'
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 62 port_dst = 45
Sun May 26 20:31:05 2013: ERROR: JackGraphManager::Connect already connected port_src = 63 port_dst = 46
Sun May 26 20:31:05 2013: Connecting 'system:capture_8' to 'ardour:Drums/audio_in 1'
Sun May 26 20:31:06 2013: Connecting 'system:capture_1' to 'ardour:Drums/audio_in 2'
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 66 port_dst = 45
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 67 port_dst = 46
Sun May 26 20:31:06 2013: Connecting 'system:capture_2' to 'ardour:Guitar/audio_in 1'
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 69 port_dst = 45
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 70 port_dst = 46
Sun May 26 20:31:06 2013: Connecting 'system:capture_3' to 'ardour:Guitar_old/audio_in 1'
20:31:06.191 JACK connection graph change.
20:31:06.231 XRUN callback (1).
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 72 port_dst = 45
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 73 port_dst = 46
Sun May 26 20:31:06 2013: Connecting 'system:capture_4' to 'ardour:Vocal/audio_in 1'
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 75 port_dst = 45
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 76 port_dst = 46
Sun May 26 20:31:06 2013: Connecting 'system:capture_1' to 'ardour:LTC-in'
Sun May 26 20:31:06 2013: Connecting 'ardour:click/audio_out 1' to 'system:playback_1'
Sun May 26 20:31:06 2013: Connecting 'ardour:click/audio_out 2' to 'system:playback_2'
Sun May 26 20:31:06 2013: ERROR: JackEngine::XRun: client = ardour was not finished, state = Running
Sun May 26 20:31:06 2013: ERROR: JackAudioDriver::ProcessGraphAsyncMaster: Process error

And During Playback or Recording;
20:31:06.191 JACK connection graph change.
20:31:06.231 XRUN callback (1).
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 72 port_dst = 45
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 73 port_dst = 46
Sun May 26 20:31:06 2013: Connecting 'system:capture_4' to 'ardour:Vocal/audio_in 1'
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 75 port_dst = 45
Sun May 26 20:31:06 2013: ERROR: JackGraphManager::Connect already connected port_src = 76 port_dst = 46
Sun May 26 20:31:06 2013: Connecting 'system:capture_1' to 'ardour:LTC-in'
Sun May 26 20:31:06 2013: Connecting 'ardour:click/audio_out 1' to 'system:playback_1'
Sun May 26 20:31:06 2013: Connecting 'ardour:click/audio_out 2' to 'system:playback_2'
Sun May 26 20:31:06 2013: ERROR: JackEngine::XRun: client = ardour was not finished, state = Running
Sun May 26 20:31:06 2013: ERROR: JackAudioDriver::ProcessGraphAsyncMaster: Process error
20:34:37.089 XRUN callback (2).
Sun May 26 20:34:37 2013: ERROR: JackEngine::XRun: client = ardour was not finished, state = Running
Sun May 26 20:34:37 2013: ERROR: JackAudioDriver::ProcessGraphAsyncMaster: Process error
20:35:00.338 XRUN callback (3).
Sun May 26 20:35:00 2013: ERROR: JackEngine::XRun: client = ardour was not finished, state = Running
Sun May 26 20:35:00 2013: ERROR: JackAudioDriver::ProcessGraphAsyncMaster: Process error

I did notice when using A3, CPU usage was up to 40%. But when using A2 with the same session, it was 5%
During Playback A3 CPU usage would boost to 60-70% where in A2 it was at 10-15%
TagsNo tags attached.

Activities

2013-05-31 03:19




bassndrumboy20

2013-05-31 03:25

reporter   ~0014952

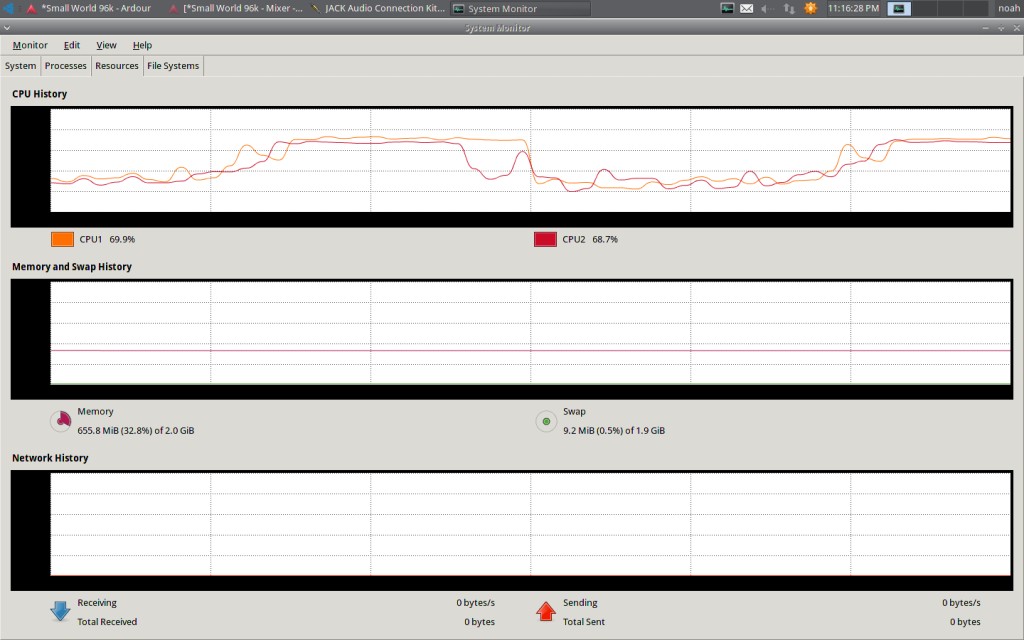

As shown in the attached screen shot. I noticed today that the CPU usage was oscillating from 10-20% for 15 seconds to 40-50% for 15 seconds. This only happens when A3 is at idle. During playback and recording, it jumps to 50-60% for 15 seconds to 80-100% for 15 seconds.

paul

2013-06-10 16:17

administrator   ~0014967

How many cores have you told Ardour to use? (Edit -> Preferences)

bassndrumboy20

2013-06-11 02:40

reporter   ~0014979

2

natemiverson

2013-06-11 03:04

reporter   ~0014980

Do the xruns happen when DSP usage changes? Could be related to frequency scaling.

check

cat /sys/devices/system/cpu/cpu?/cpufreq/scaling_governor

bassndrumboy20

2013-06-11 03:42

reporter   ~0014981

The output of cat /sys/devices/system/cpu/cpu?/cpufreq/scaling_governor is:
performance
performance

jrigg

2013-06-11 11:03

reporter   ~0014982

Setting the number of cores to 2 when you only have 2 might cause scheduling problems. Do you still have the problem if you tell Ardour to use "all but one processor"?

bassndrumboy20

2013-06-16 00:16

reporter   ~0015004

Last edited: 2013-06-16 00:16

 I tried the "All but one processor" and 1 with worse performance Before it was xruns only during playback and recording. With only one or all but one, I get loads of xruns at idle.

I tried "All available" but it was the same results as if it was set to 2.

Attached is another screen cap of the system monitor while using all but one.

2013-06-16 00:17




bassndrumboy20

2013-06-16 00:41

reporter   ~0015005

Just updated to 3.2 and just changed out my video card. Still having issues. One thing to note but might be irrelevant; When loading a session, the first few xruns start when the Ardour splash screens says "Rest Remote Controls"

Issue History

Date Modified Username Field Change
2013-05-27 00:36 bassndrumboy20 New Issue
2013-05-31 03:19 bassndrumboy20 File Added: a3CPUuse.jpg
2013-05-31 03:23 bassndrumboy20 Status new => feedback
2013-05-31 03:25 bassndrumboy20 Note Added: 0014952
2013-05-31 03:25 bassndrumboy20 Status feedback => new
2013-06-10 16:17 paul Note Added: 0014967
2013-06-11 02:40 bassndrumboy20 Note Added: 0014979
2013-06-11 03:04 natemiverson Note Added: 0014980
2013-06-11 03:42 bassndrumboy20 Note Added: 0014981
2013-06-11 11:03 jrigg Note Added: 0014982
2013-06-16 00:16 bassndrumboy20 Note Added: 0015004
2013-06-16 00:16 bassndrumboy20 Note Edited: 0015004
2013-06-16 00:17 bassndrumboy20 File Added: a3CPUuse2.jpg
2013-06-16 00:41 bassndrumboy20 Note Added: 0015005
