*** add_route_dialog.cc.old	2009-06-27 14:17:12.000000000 +0200
--- add_route_dialog.cc	2009-06-28 15:10:59.000000000 +0200
***************
*** 24,29 ****
--- 24,30 ----
  #include <gtkmm/stock.h>
  #include <gtkmm/separator.h>
  #include <gtkmm/table.h>
+ #include <gtkmm2ext/window_title.h>

  #include "pbd/error.h"
  #include "pbd/convert.h"
***************
*** 53,65 ****
  };

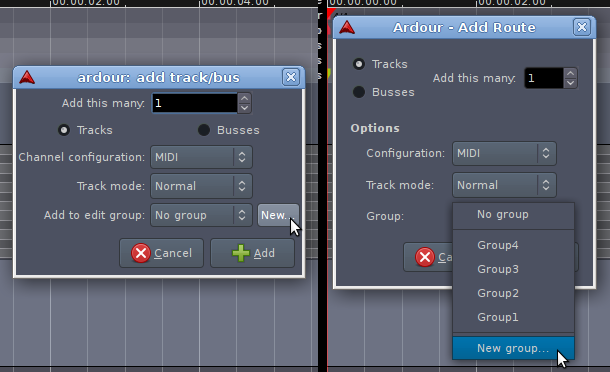

  AddRouteDialog::AddRouteDialog (Session & s)
! 	: Dialog (_("ardour: add track/bus")),
! 	  _session (s),
! 	  track_button (_("Tracks")),
! 	  bus_button (_("Busses")),
! 	  routes_adjustment (1, 1, 128, 1, 4),
! 	  routes_spinner (routes_adjustment),
! 	  new_route_group_button (_("New..."))
  {
  	if (track_mode_strings.empty()) {
  		track_mode_strings = I18N (track_mode_names);
--- 54,66 ----
  };

  AddRouteDialog::AddRouteDialog (Session & s)
! 	: ArdourDialog (X_("add route dialog"))
! 	, _session (s)
! 	, track_button (_("Tracks"))
! 	, bus_button (_("Busses"))
! 	, routes_adjustment (1, 1, 128, 1, 4)
! 	, routes_spinner (routes_adjustment)
! 	, track_mode_label (_("Track mode:"))
  {
  	if (track_mode_strings.empty()) {
  		track_mode_strings = I18N (track_mode_names);
***************
*** 74,87 ****
  	}

  	set_name ("AddRouteDialog");
- 	set_wmclass (X_("ardour_add_track_bus"), "Ardour");
  	set_position (Gtk::WIN_POS_MOUSE);
  	set_resizable (false);

! 	name_template_entry.set_name ("AddRouteDialogNameTemplateEntry");
! 	track_button.set_name ("AddRouteDialogRadioButton");
! 	bus_button.set_name ("AddRouteDialogRadioButton");
! 	routes_spinner.set_name ("AddRouteDialogSpinner");

  	refill_channel_setups ();
  	refill_route_groups ();
--- 75,95 ----
  	}

  	set_name ("AddRouteDialog");
  	set_position (Gtk::WIN_POS_MOUSE);
+ 	set_modal (true);
+ 	set_skip_taskbar_hint (true);
  	set_resizable (false);

! 	WindowTitle title(Glib::get_application_name());
! 	title += _("Add Route");
! 	set_title(title.get_string());
!
! 	name_template_entry.set_name (X_("AddRouteDialogNameTemplateEntry"));
! 	track_button.set_name (X_("AddRouteDialogRadioButton"));
! 	bus_button.set_name (X_("AddRouteDialogRadioButton"));
! 	routes_spinner.set_name (X_("AddRouteDialogSpinner"));
! 	channel_combo.set_name (X_("ChannelCountSelector"));
! 	track_mode_combo.set_name (X_("ChannelCountSelector"));

  	refill_channel_setups ();
  	refill_route_groups ();
***************
*** 90,147 ****
  	channel_combo.set_active_text (channel_combo_strings.front());
  	track_mode_combo.set_active_text (track_mode_strings.front());

  	RadioButton::Group g = track_button.get_group();
  	bus_button.set_group (g);
  	track_button.set_active (true);

! 	Table* table = manage (new Table (5, 3));
! 	table->set_spacings (4);

  	/* add */

! 	Label* l = manage (new Label (_("Add this many:")));
! 	l->set_alignment (1, 0.5);
! 	table->attach (*l, 0, 1, 0, 1);
! 	table->attach (routes_spinner, 1, 2, 0, 1, FILL | EXPAND);

! 	/* track/bus choice & modes */

- 	HBox* hbox = manage (new HBox);
- 	hbox->set_spacing (6);
- 	hbox->pack_start (track_button, PACK_EXPAND_PADDING);
- 	hbox->pack_start (bus_button, PACK_EXPAND_PADDING);
- 	table->attach (*hbox, 0, 3, 1, 2);

! 	channel_combo.set_name (X_("ChannelCountSelector"));
! 	track_mode_combo.set_name (X_("ChannelCountSelector"));

! 	track_button.signal_clicked().connect (mem_fun (*this, &AddRouteDialog::track_type_chosen));
! 	bus_button.signal_clicked().connect (mem_fun (*this, &AddRouteDialog::track_type_chosen));
! 	new_route_group_button.signal_clicked().connect (mem_fun (*this, &AddRouteDialog::new_route_group));

! 	l = manage (new Label (_("Channel configuration:")));
! 	l->set_alignment (1, 0.5);
! 	table->attach (*l, 0, 1, 2, 3);
! 	table->attach (channel_combo, 1, 2, 2, 3, FILL | EXPAND);

  	if (!ARDOUR::Profile->get_sae ()) {
! 		l = manage (new Label (_("Track mode:")));
! 		l->set_alignment (1, 0.5);
! 		table->attach (*l, 0, 1, 3, 4);
! 		table->attach (track_mode_combo, 1, 2, 3, 4, FILL | EXPAND);
  	}

! 	l = manage (new Label (_("Add to edit group:")));
! 	l->set_alignment (1, 0.5);
! 	table->attach (*l, 0, 1, 4, 5);
! 	table->attach (route_group_combo, 1, 2, 4, 5, FILL | EXPAND);
! 	table->attach (new_route_group_button, 2, 3, 4, 5);
!
! 	get_vbox()->pack_start (*table);
!
! 	get_vbox()->set_spacing (6);
! 	get_vbox()->set_border_width (6);
! 	get_vbox()->show_all ();

  	/* track template info will be managed whenever
  	   this dialog is shown, via ::on_show()
--- 98,188 ----
  	channel_combo.set_active_text (channel_combo_strings.front());
  	track_mode_combo.set_active_text (track_mode_strings.front());

+ 	VBox* vbox = manage (new VBox);
+ 	Gtk::Label* l;
+
+ 	get_vbox()->set_spacing (4);
+
+ 	vbox->set_spacing (18);
+ 	vbox->set_border_width (5);
+
+ 	Table *type_table = manage (new Table (2, 4, false));
+
+ 	type_table->set_row_spacings (6);
+ 	type_table->set_col_spacing	(2, 6);
+
+ 	/* track/bus choice & modes */
+
  	RadioButton::Group g = track_button.get_group();
  	bus_button.set_group (g);
  	track_button.set_active (true);
+ 	type_table->attach (track_button, 0, 1, 0, 1, Gtk::FILL, Gtk::EXPAND & Gtk::FILL, 0, 0);
+ 	type_table->attach (bus_button, 0, 1, 1, 2, Gtk::FILL, Gtk::EXPAND & Gtk::FILL, 0, 0);

! 	l = manage (new Label ("", Gtk::ALIGN_LEFT, Gtk::ALIGN_CENTER, false ));
! 	l->set_padding (8, 0);
! 	type_table->attach (*l, 1, 2, 0, 2, Gtk::FILL, Gtk::FILL, 0, 0);

  	/* add */

! 	l = manage (new Label (_("Add this many:"), Gtk::ALIGN_LEFT, Gtk::ALIGN_CENTER, false));
! 	type_table->attach (*l, 2, 3, 0, 2, Gtk::FILL, Gtk::EXPAND & Gtk::FILL, 0, 0);
! 	type_table->attach (routes_spinner, 3, 4, 0, 2, Gtk::FILL, Gtk::EXPAND & Gtk::FILL, 0, 0);

! 	vbox->pack_start (*type_table, false, true);


! 	VBox* options_box = manage (new VBox);
! 	Table *table2 = manage (new Table (3, 3, false));

! 	options_box->set_spacing (6);
! 	table2->set_row_spacings (6);
! 	table2->set_col_spacing	(1, 6);
!
! 	l = manage (new Label (_("<b>Options</b>"), Gtk::ALIGN_LEFT, Gtk::ALIGN_CENTER, false));
! 	l->set_use_markup ();
! 	options_box->pack_start (*l, false, true);
!
! 	l = manage (new Label ("", Gtk::ALIGN_LEFT, Gtk::ALIGN_CENTER, false));
! 	l->set_padding (8, 0);
! 	table2->attach (*l, 0, 1, 0, 3, Gtk::FILL, Gtk::FILL, 0, 0);
!
! 	/* Route configuration */

! 	l = manage (new Label (_("Configuration:"), Gtk::ALIGN_LEFT, Gtk::ALIGN_CENTER, false));
! 	table2->attach (*l, 1, 2, 0, 1, Gtk::FILL, Gtk::EXPAND, 0, 0);
! 	table2->attach (channel_combo, 2, 3, 0, 1, Gtk::FILL, Gtk::EXPAND & Gtk::FILL, 0, 0);

  	if (!ARDOUR::Profile->get_sae ()) {
!
! 		/* Track mode */
!
! 		track_mode_label.set_alignment (Gtk::ALIGN_LEFT, Gtk::ALIGN_CENTER);
! 		table2->attach (track_mode_label, 1, 2, 1, 2, Gtk::FILL, Gtk::EXPAND, 0, 0);
! 		table2->attach (track_mode_combo, 2, 3, 1, 2, Gtk::FILL, Gtk::EXPAND & Gtk::FILL, 0, 0);
!
  	}
+
+ 	/* Group choise */
+
+ 	l = manage (new Label (_("Group:"), Gtk::ALIGN_LEFT, Gtk::ALIGN_CENTER, false));
+ 	table2->attach (*l, 1, 2, 2, 3, Gtk::FILL, Gtk::EXPAND, 0, 0);
+ 	table2->attach (route_group_combo, 2, 3, 2, 3, Gtk::FILL, Gtk::EXPAND & Gtk::FILL, 0, 0);

! 	options_box->pack_start (*table2, false, true);
! 	vbox->pack_start (*options_box, false, true);
!
!
! 	get_vbox()->pack_start (*vbox, false, false);
!
! 	track_button.signal_clicked().connect (mem_fun (*this, &AddRouteDialog::track_type_chosen));
! 	bus_button.signal_clicked().connect (mem_fun (*this, &AddRouteDialog::track_type_chosen));
! 	channel_combo.set_row_separator_func (mem_fun (*this, &AddRouteDialog::channel_separator));
! 	route_group_combo.set_row_separator_func (mem_fun (*this, &AddRouteDialog::route_separator));
! 	route_group_combo.signal_changed ().connect (mem_fun (*this, &AddRouteDialog::group_changed));
!
!
! 	show_all_children ();

  	/* track template info will be managed whenever
  	   this dialog is shown, via ::on_show()
***************
*** 161,168 ****
--- 202,211 ----
  AddRouteDialog::track_type_chosen ()
  {
  	if (track_button.get_active()) {
+ 		track_mode_label.set_sensitive (true);
  		track_mode_combo.set_sensitive (true);
  	} else {
+ 		track_mode_label.set_sensitive (false);
  		track_mode_combo.set_sensitive (false);
  	}
  }
***************
*** 270,275 ****
--- 313,321 ----
  	chn.channels = 0;
  	channel_setups.push_back (chn);

+ 	chn.name = "separator";
+ 	channel_setups.push_back (chn);
+
  	chn.name = _("Mono");
  	chn.channels = 1;
  	channel_setups.push_back (chn);
***************
*** 331,337 ****
  void
  AddRouteDialog::add_route_group (RouteGroup* g)
  {
! 	route_group_combo.append_text (g->name ());
  }

  RouteGroup*
--- 377,383 ----
  void
  AddRouteDialog::add_route_group (RouteGroup* g)
  {
! 	route_group_combo.insert_text (2, g->name ());
  }

  RouteGroup*
***************
*** 349,371 ****
  {
  	route_group_combo.clear ();
  	route_group_combo.append_text (_("No group"));
  	_session.foreach_route_group (mem_fun (*this, &AddRouteDialog::add_route_group));
  	route_group_combo.set_active (0);
  }
!
  void
! AddRouteDialog::new_route_group ()
  {
! 	RouteGroup* g = new RouteGroup (_session, "", RouteGroup::Active);

! 	RouteGroupDialog d (g, Gtk::Stock::NEW);
! 	int const r = d.do_run ();

! 	if (r == Gtk::RESPONSE_OK) {
! 		_session.add_route_group (g);
! 		add_route_group (g);
! 		route_group_combo.set_active (route_group_combo.get_model()->children().size() - 1);
! 	} else {
! 		delete g;
  	}
  }
--- 395,446 ----
  {
  	route_group_combo.clear ();
  	route_group_combo.append_text (_("No group"));
+
+ 	route_group_combo.append_text ("separator");
+
  	_session.foreach_route_group (mem_fun (*this, &AddRouteDialog::add_route_group));
+
+ 	route_group_combo.append_text ("separator");
+
+ 	route_group_combo.append_text (_("New group..."));
+
  	route_group_combo.set_active (0);
  }
!
  void
! AddRouteDialog::group_changed ()
  {
! 	if (route_group_combo.get_active_text () == _("New group...")) {
! 		RouteGroup* g = new RouteGroup (_session, "", RouteGroup::Active);

! 		RouteGroupDialog d (g, Gtk::Stock::NEW);
! 		int const r = d.do_run ();

! 		if (r == Gtk::RESPONSE_OK) {
! 			_session.add_route_group (g);
! 			add_route_group (g);
! 			route_group_combo.set_active (2);
! 		} else {
! 			delete g;
!
! 			route_group_combo.set_active (0);
! 		}
  	}
  }
+
+ bool
+ AddRouteDialog::channel_separator (const Glib::RefPtr<Gtk::TreeModel> &m, const Gtk::TreeModel::iterator &i)
+ {
+ 	channel_combo.set_active (i);
+
+ 	return channel_combo.get_active_text () == "separator";
+ }
+
+ bool
+ AddRouteDialog::route_separator (const Glib::RefPtr<Gtk::TreeModel> &m, const Gtk::TreeModel::iterator &i)
+ {
+ 	route_group_combo.set_active (i);
+
+ 	return route_group_combo.get_active_text () == "separator";
+ }
+

*** add_route_dialog.h.old	2009-06-27 14:17:12.000000000 +0200
--- add_route_dialog.h	2009-06-28 14:51:49.000000000 +0200
***************
*** 30,41 ****
  #include <gtkmm/spinbutton.h>
  #include <gtkmm/button.h>
  #include <gtkmm/comboboxtext.h>

  #include "ardour/types.h"
  #include "ardour/template_utils.h"
  #include "ardour/session.h"

! class AddRouteDialog : public Gtk::Dialog
  {
    public:
  	AddRouteDialog (ARDOUR::Session &);
--- 30,46 ----
  #include <gtkmm/spinbutton.h>
  #include <gtkmm/button.h>
  #include <gtkmm/comboboxtext.h>
+ #include <gtkmm/treemodel.h>

  #include "ardour/types.h"
  #include "ardour/template_utils.h"
  #include "ardour/session.h"

! #include "ardour_dialog.h"
!
! class Editor;
!
! class AddRouteDialog : public ArdourDialog
  {
    public:
  	AddRouteDialog (ARDOUR::Session &);
***************
*** 60,68 ****
  	Gtk::Adjustment routes_adjustment;
  	Gtk::SpinButton routes_spinner;
  	Gtk::ComboBoxText channel_combo;
  	Gtk::ComboBoxText track_mode_combo;
  	Gtk::ComboBoxText route_group_combo;
- 	Gtk::Button new_route_group_button;

  	std::vector<ARDOUR::TemplateInfo> route_templates;

--- 65,73 ----
  	Gtk::Adjustment routes_adjustment;
  	Gtk::SpinButton routes_spinner;
  	Gtk::ComboBoxText channel_combo;
+ 	Gtk::Label track_mode_label;
  	Gtk::ComboBoxText track_mode_combo;
  	Gtk::ComboBoxText route_group_combo;

  	std::vector<ARDOUR::TemplateInfo> route_templates;

***************
*** 70,76 ****
  	void refill_channel_setups ();
  	void refill_route_groups ();
  	void add_route_group (ARDOUR::RouteGroup *);
! 	void new_route_group ();

  	void reset_template_option_visibility ();

--- 75,83 ----
  	void refill_channel_setups ();
  	void refill_route_groups ();
  	void add_route_group (ARDOUR::RouteGroup *);
! 	void group_changed ();
! 	bool channel_separator (const Glib::RefPtr<Gtk::TreeModel> &m, const Gtk::TreeModel::iterator &i);
! 	bool route_separator (const Glib::RefPtr<Gtk::TreeModel> &m, const Gtk::TreeModel::iterator &i);

  	void reset_template_option_visibility ();
