View Issue Details

IDProjectCategoryView StatusLast Update
0001627ardourbugspublic2007-04-27 02:40
Reporteraudun Assigned Topaul
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionfixed
Summary0001627: fixed time copy+move inside a single track leaves an "unhandled" region
DescriptionDo this operation (ctrl+button2) on a region and drag it a bit, but do not move them into another track. This leaves a new region in the track that does not seem to be referenced in a healthy way:
1. Updating track height (or zooming) does not affect this region.
2. Operating on it (which has non-deterministic results) leads to crashes.

The problem also affects selections of regions across different tracks, if the selection is not moved on the vertical axis.
TagsNo tags attached.

Activities

oofus

2007-04-23 20:52

developer   ~0003836

I can duplicate that.Once I've created that 'copy' region it can be moved on it's own track, but moving it to another track crashes Ardour2 with the following error message.

ardour-2.0rc1: /usr/include/boost/shared_ptr.hpp:247: typename boost::detail::shared_ptr_traits<T>::reference boost::shared_ptr<T>::operator*() const [with T = ARDOUR::Playlist]: Assertion `px != 0' failed.

paul

2007-04-26 01:09

administrator   ~0003841

rather puzzling. sounds like a bug that was fixed before rc1 was released.

i just tried duplicating here with current SVN, and it seems to work OK - none of the symptoms reported by audun or oofus show up.

oofus - i know you tested this only 2 days ago, could you try it again, and give me a recipe if its still happening?

audun

2007-04-26 01:42

reporter   ~0003842

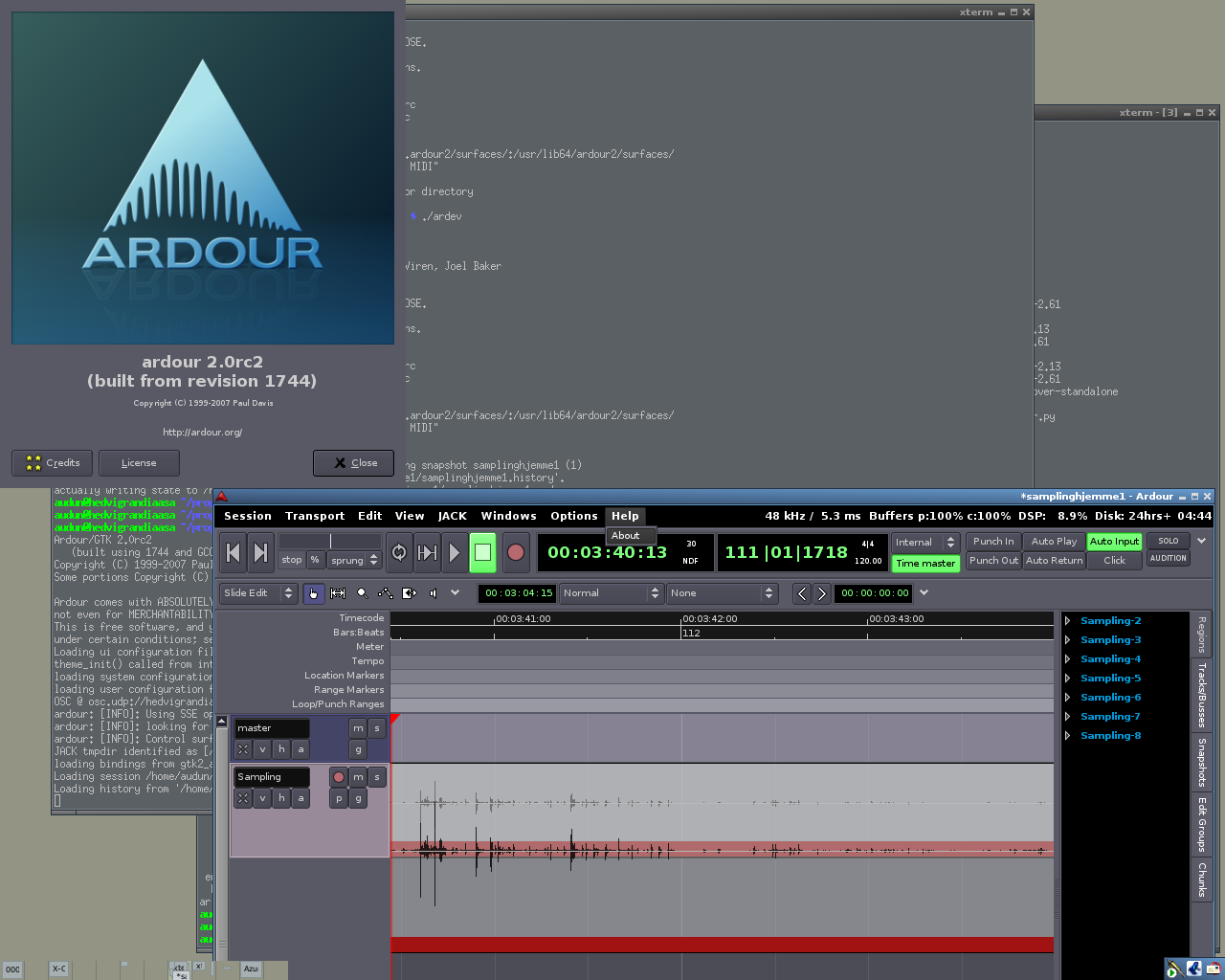

I can confirm, contrary to what Paul is saying; the bug is present on rc2 revision 1744. I have no trouble reproducing it whatsoever. See screenshot.

2007-04-26 01:42




paul

2007-04-26 01:50

administrator   ~0003843

can i get an exact recipe for duplication please?

audun

2007-04-26 02:03

reporter   ~0003844

Last edited: 2007-04-26 11:55

1. Create a new session
2. Add a track
3. Record a region on that track
4. Press CTRL
5. Place the mouse cursor in the waveform area of the recorded region
5. Press down mouse button2
6. While holding down this button, move the cursor a bit (say about 100 pixels) to the right, but keep it inside the track.
7. Release button2

The track will "blink", indicating that a new region, a copy of the old one, is inserted in the track.

(7 1/2 release CTRL ;)
8. Press shift
9. Scroll the mouse wheel upwards: The track height will increase, the old region will obtain this new track height, but the copied region will not.

I think that eventual crashes after this only reflects this strange behavior, that some pointers or references are zero and/or similar.

audun

2007-04-26 02:09

reporter   ~0003845

Last edited: 2007-04-26 02:24

By the way, it seems like the copied region shares the inner state with the old one. For example, moving one of them or dragging it's fade handler will also be reflected in the other one. But operations on the _track_ will only affect the old one.

oofus

2007-04-26 08:49

developer   ~0003846

OK, Use the same recipe as audun up to step 7. Then left-click and drag the new region on the same track. The new region can be moved away from the original (now showing two regions on the track), but when the new region is released it stays where it is dropped and the original region disappears. This can be repeated as many times as you like. If however you left-click and then drag the new region to another track, Ardour crashes.

audun

2007-04-26 11:40

reporter   ~0003847

Yes, this indicates that the two regions can't be moved independently of each other. Just change the track height, and you'll see what I mean. The original region doesn't disappear, it is just directly below or above the other one.

paul

2007-04-26 16:19

administrator   ~0003851

believed fixed in rev 1750. let me know so we can mark this resolved ASAP. thanks for finding this.

oofus

2007-04-26 21:36

developer   ~0003853

Appears fixed to me.

paul

2007-04-27 00:01

administrator   ~0003857

see notes.

audun

2007-04-27 02:40

reporter   ~0003859

Yes, this is fixed in revision 1750.

Issue History

Date Modified Username Field Change
2007-04-23 17:39 audun New Issue
2007-04-23 20:52 oofus Note Added: 0003836
2007-04-26 01:09 paul Note Added: 0003841
2007-04-26 01:09 paul Status new => feedback
2007-04-26 01:42 audun Note Added: 0003842
2007-04-26 01:42 audun File Added: ardour-2.0rc2-sshot.png
2007-04-26 01:50 paul Note Added: 0003843
2007-04-26 02:03 audun Note Added: 0003844
2007-04-26 02:09 audun Note Added: 0003845
2007-04-26 02:24 audun Note Edited: 0003845
2007-04-26 08:49 oofus Note Added: 0003846
2007-04-26 11:40 audun Note Added: 0003847
2007-04-26 11:55 audun Note Edited: 0003844
2007-04-26 16:19 paul Note Added: 0003851
2007-04-26 21:36 oofus Note Added: 0003853
2007-04-27 00:01 paul Status feedback => resolved
2007-04-27 00:01 paul Resolution open => fixed
2007-04-27 00:01 paul Assigned To => paul
2007-04-27 00:01 paul Note Added: 0003857
2007-04-27 02:40 audun Status resolved => closed
2007-04-27 02:40 audun Note Added: 0003859
