View Issue Details

IDProjectCategoryView StatusLast Update
0001386ardourbugspublic2008-11-20 23:50
Reporterpieterpalmers Assigned Totaybin
PrioritynormalSeveritymajorReproducibilityhave not tried
Status closedResolutionfixed
Summary0001386: all menu and dialog text disappears

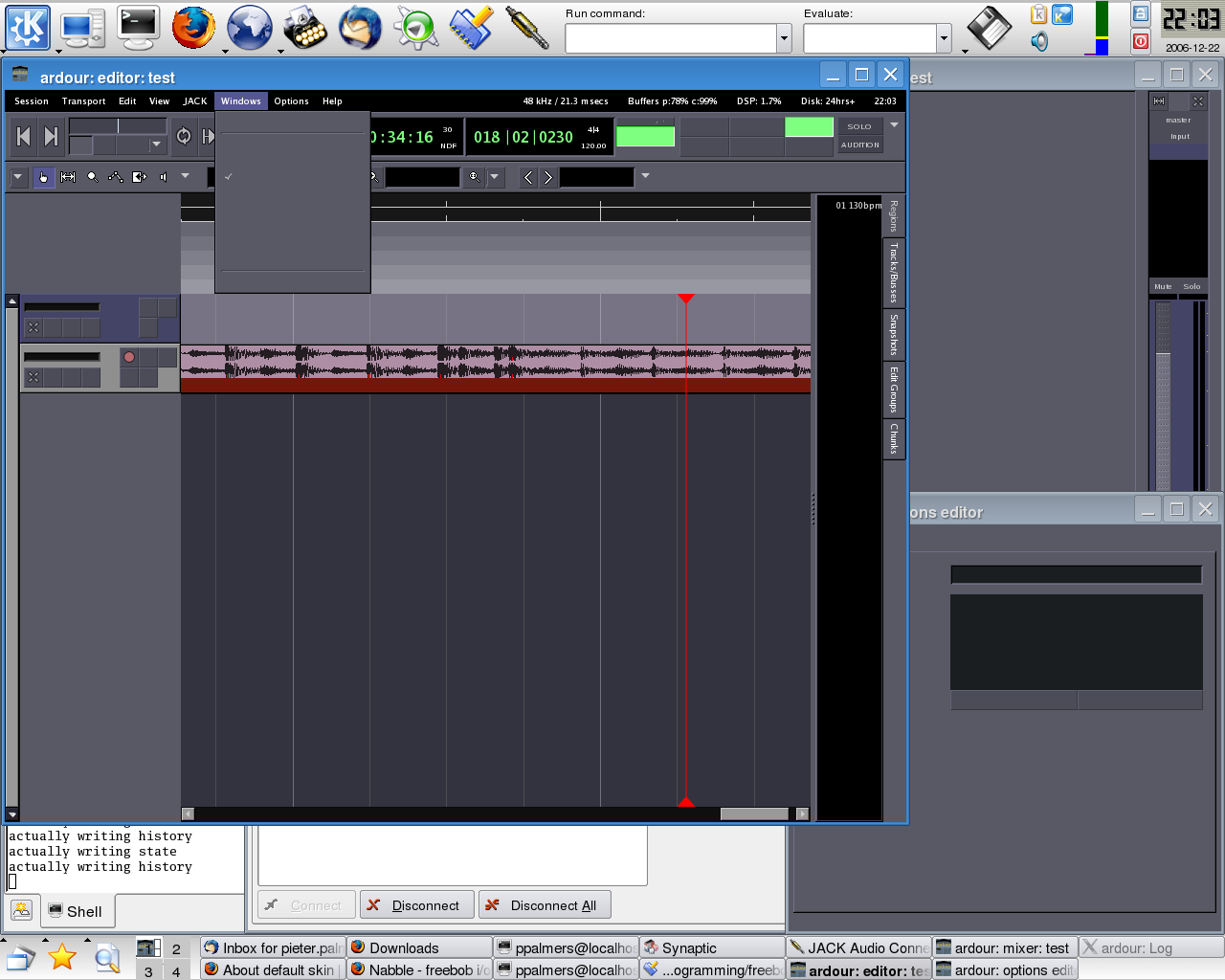

DescriptionThe attached screenshot speaks a 100 words... (well actually it doesn't ;)

All text in menu entries and dialog boxes is gone. The actions leading up to this were:
1) starting jackd (jackd -R -d freebob -d"hw:2")
2) starting ardour2
3) loading an ardour2 saved project containing 2 tracks and one imported region.
4) pressing play and shortly thereafter opening the options dialog

Note that the setup might be a little odd, but should be working afaik:
* ardour2 and all libs are compiled & installed with --prefix=$HOME/ardour2 or PREFIX=$HOME/ardour2

the enviroment vars during the compilation process and when running ardour2 were changed as follows:

export LD_LIBRARY_PATH=$HOME/ardour2/lib
export PATH=$HOME/ardour2/bin:$PATH
export PKG_CONFIG_PATH=$HOME/ardour2/lib/pkgconfig:$PKG_CONFIG_PATH

Compiled from source and installed in ~/ardour2 are:
ardour-2.0beta9
cairo-1.2.0
glib-2.12.6
gtk+-2.10.6
jpeg-6b
pango-1.14.8
tiff-3.7.4

Other depencies were installed from planetccrma. FWIW: I'm using KDE.
Additional Informationardour2 output:

Ardour/GTK 2.0beta9
   (built using 1180 and GCC version 4.0.2 20051125 (Red Hat 4.0.2-8))
Copyright (C) 1999-2006 Paul Davis
Some portions Copyright (C) Steve Harris, Ari Johnson, Brett Viren, Joel Baker

Ardour comes with ABSOLUTELY NO WARRANTY
not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
This is free software, and you are welcome to redistribute it
under certain conditions; see the source for copying conditions.
Loading ui configuration file /home/ppalmers/ardour2/etc/ardour2/ardour2_ui.rc

(ardour.bin:23244): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(ardour.bin:23244): Pango-WARNING **: shape engine failure, expect ugly output. the offending font is 'Luxi Sans 10'
loading system configuration file /home/ppalmers/ardour2/etc/ardour2/ardour_system.rc
loading user configuration file /home/ppalmers/.ardour2/ardour.rc
OSC @ osc.udp://localhost.localdomain:3819/
Enabling SSE optimized routines
ardour: [INFO]: looking for control protocols in /home/ppalmers/.ardour2/surfaces/:/home/ppalmers/ardour2/lib/ardour2/surfaces/
ardour: [INFO]: Control surface protocol discovered: "Generic MIDI"
ardour: [WARNING]: Your system generates "Mod2" when the NumLock key is pressed. This can cause problems when editing so Ardour will use Mod3 to mean Meta rather than Mod2
Loading session /home/ppalmers/Desktop/test using snapshot test (1)
Loading history from '/home/ppalmers/Desktop/test/test.history'.
dropping, target = regions

(ardour.bin:23244): Pango-WARNING **: shape engine failure, expect ugly output. the offending font is 'Luxi Sans 8'
actually writing state
actually writing history
actually writing state
actually writing history

TagsNo tags attached.

Activities

2006-12-22 21:16




taybin

2007-01-18 15:02

administrator   ~0003087

Were you using a non-english system?

paul

2007-01-18 16:20

administrator   ~0003088

this is believed fixed in svn. it was caused by your locale specifying a non-UTF-8 charset. our translations are all in UTF-8 format, and we now force the code to treat it as such.

let us know if its fixed for you. you can also try it by setting your locale to foobar-UTF8 rather than foobar-iso8859-1 (for example)

paul

2007-01-18 16:22

administrator   ~0003089

the pango warning seems relevant as well. that would be outside of ardour scope though.

paul

2007-01-18 16:26

administrator   ~0003090

see also: http://72.14.209.104/search?q=cache:lEXRjb198-MJ:osdir.com/ml/gtk-list%40gnome.org/msg23597.html+%22shape+engine+failure,+expect+ugly+output%22&hl=en&gl=us&ct=clnk&cd=4

taybin

2007-01-26 01:44

administrator   ~0003109

Marking this as fixed.

Issue History

Date Modified Username Field Change
2006-12-22 21:16 pieterpalmers New Issue
2006-12-22 21:16 pieterpalmers File Added: snapshot1.png
2007-01-18 15:02 taybin Note Added: 0003087
2007-01-18 16:20 paul Note Added: 0003088
2007-01-18 16:22 paul Note Added: 0003089
2007-01-18 16:26 paul Note Added: 0003090
2007-01-26 01:44 taybin Status new => resolved
2007-01-26 01:44 taybin Resolution open => fixed
2007-01-26 01:44 taybin Assigned To => taybin
2007-01-26 01:44 taybin Note Added: 0003109
2008-11-20 23:50 seablade Status resolved => closed
