Summary0008316: instrument plug-ins with audio inputs are not listed in the Add Track/Bus/VCA instrument plug-in list
DescriptionCreating a MIDI track with the Surge synthesizer is not as easy as with say - Helm or Zyn-Fusion.

Surge has aux audio input for vocoder effect, but I think Ardour gets thrown off by this and doesn't include it in the instrument list, even though the plug-in is available in the
Steps To Reproduce1. install Surge plug-in
2. Attempt to add a MIDI track with it
3. Realize it's not on the list in the Add track/Bus/VCA dialog
4. Revert to creating a MIDI track with whatever inhttps://youtu.be/bfTAKv4htDEstrument and replace it afterwards
TagsMidi, PLugins

Activities

paul

2020-07-18 13:52

administrator   ~0024760

our definition for "is an instrument":

    (n_inputs.n_midi() != 0) && (n_outputs.n_audio() > 0) && (n_inputs.n_audio() == 0);

for VST plugins, since they come with developer-provided categories, we also check the plugins own "is instrument" setting.

unfa

2020-07-18 13:55

reporter   ~0024761

Yeah, that's exactly what I would expect.

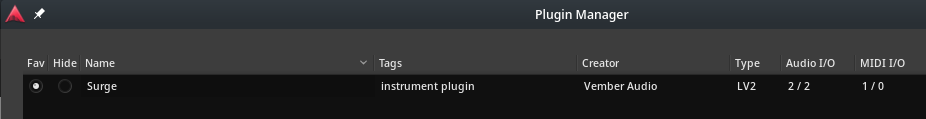

Surge LV2 also is tagged an an instrument, so I guess it should be easy to correct this, what do you think?

paul

2020-07-18 13:57

administrator   ~0024762

We could look at the "ardour-level" tags too, I suppose.

unfa

2020-07-18 14:02

reporter   ~0024763

Thanks! I got very confused by this at first and I expect other users will be too, so if we can sort it out for them - that'd be great.

x42

2020-07-23 16:23

administrator   ~0024795

Last edited: 2020-07-23 16:24

 We also use plugin categories as defined by upstream: For LV2: http://lv2plug.in/ns/lv2core#InstrumentPlugin and VST's with effFlagsIsSynth
