View Issue Details

IDProjectCategoryView StatusLast Update
0004145ardourbugspublic2012-05-23 15:07
Reporterpneuman Assigned To
Status acknowledgedResolutionopen
Target Version3.0
Summary0004145: Connection matrix dialog doesn't display the actual matrix until it's resized
DescriptionThe connection matrix dialog often appears smaller than it needs to be to display the entire matrix; when there are only one or two columns in the matrix, it sometimes doesn't display the matrix at all. Scrolling the scrollbar at the bottom in these cases doesn't reveal the matrix -- the window must be resized instead.

A screenshot is attached -- let me know if any further screenshots or details are needed.
Additional InformationArdour 3 SVN r9773
OS: Ubuntu 10.10 AMD64
TagsNo tags attached.


2011-06-29 08:43




2011-11-04 17:55

administrator   ~0011917

Last edited: 2011-11-04 21:01

Roughly how wide is that connection window in relation to the total width of your screen?


2011-11-07 03:01

reporter   ~0011924

FWIW, that particular issue doesn't seem to be a problem any more -- if I open the matrix router display for the output from a MIDI track now, it displays as expected.

However, there are still a number of cases where the router window isn't quite wide enough to display the listed columns. Scrolling the window does allow you to access the extra columns, though, so it's not quite as bad as before where a resize was required. There's plenty of space on my screen for the windows to grow (I have a dual-head setup, with Ardour usually sitting on the main head, which is 1920x1080 pixels).

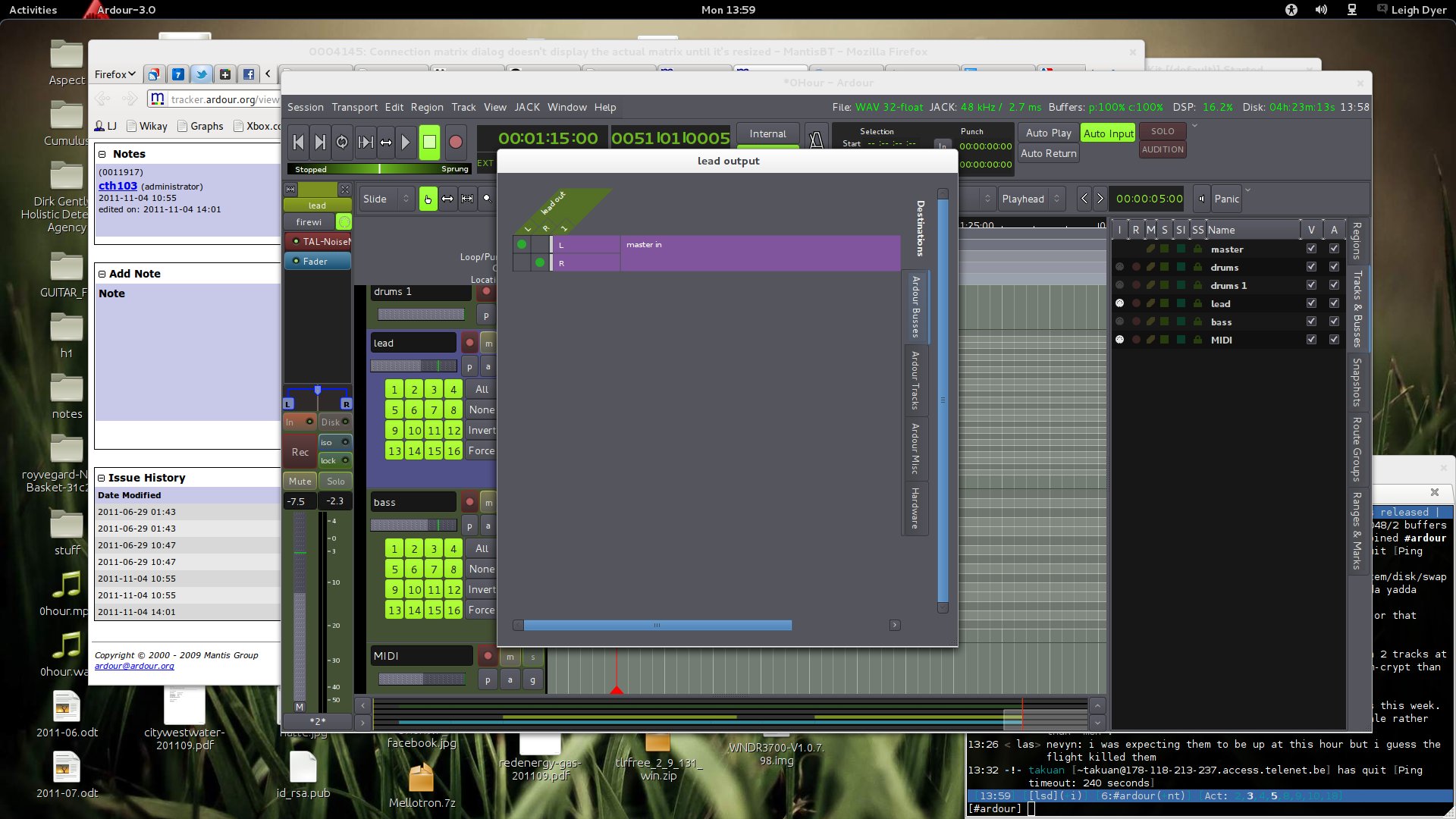

The attached example shows how the router looks on a MIDI track with a synth plugin loaded in to it. There are three outputs (two audio, one MIDI), but the third is initially obscured. I've included the entire display (or at least, the head that Ardour's running on) in the screenshot, so you can see Ardour in context.

2011-11-07 03:02


Issue History

Date Modified Username Field Change
2011-06-29 08:43 pneuman New Issue
2011-06-29 08:43 pneuman File Added: connection-matrix-issue.png
2011-06-29 17:47 cth103 cost => 0.00
2011-06-29 17:47 cth103 Target Version => 3.0-beta1
2011-11-04 17:55 cth103 Note Added: 0011917
2011-11-04 17:55 cth103 Status new => feedback
2011-11-04 21:01 cth103 Note Edited: 0011917
2011-11-07 03:01 pneuman Note Added: 0011924
2011-11-07 03:02 pneuman File Added: ardour3-route-dialog-skinny.jpg
2011-11-15 15:48 cth103 Target Version 3.0-beta1 => 3.0-beta2
2012-01-10 20:46 cth103 Target Version 3.0-beta2 => 3.0-beta3
2012-02-14 17:20 paul Target Version 3.0-beta3 => 3.0 beta4
2012-04-23 22:05 cth103 Status feedback => acknowledged
2012-05-23 15:07 cth103 Target Version 3.0 beta4 => 3.0
