Index: gtk2_ardour/generic_pluginui.cc
===================================================================
--- gtk2_ardour/generic_pluginui.cc	(revision 4281)
+++ gtk2_ardour/generic_pluginui.cc	(working copy)
@@ -121,9 +121,119 @@
 	}
 }

+
+static int numeric_value(string label, int pos) {
+int value = -1;
+
+	stringstream s;
+	s << label.substr(pos);
+	s >> value;
+
+	return value;
+
+}
+
+static void split_label(string label, string &first, string &last, int &num) {
+static const char *digits = "0123456789";
+static const char *whitespace = " \t\r\n";
+
+
+	unsigned int first_digit_pos = label.find_first_of(digits);
+
+
+	if (first_digit_pos != string::npos) {
+		// found some digits
+		num = numeric_value(label, first_digit_pos);
+
+		if (first_digit_pos > 0) {
+			// some text preceding number
+			first = label.substr(0, first_digit_pos);
+
+		} else {
+			first = "";
+
+		}
+
+		unsigned int last_digit_pos = label.find_last_of(digits);
+		if (last_digit_pos < label.length()) {
+			// some text following number
+			last = label.substr(last_digit_pos + 1);
+
+		} else {
+			last = "";
+		}
+	} else {
+		// no digits found
+		num = -1;
+		unsigned int first_whitespace_pos = label.find_first_of(whitespace);
+		if (first_whitespace_pos != string::npos) {
+			// found some whitespace
+			if (first_whitespace_pos > 0) {
+				// some text before whitespace
+				first = label.substr(0, first_whitespace_pos);
+			} else {
+				// whitespace at start of label: what to do?
+				first = "";
+			}
+
+			unsigned int last_whitespace_pos = label.find_last_of(whitespace);
+			if (last_whitespace_pos < label.length()) {
+				// some text following whitespace
+				last = label.substr(last_whitespace_pos + 1);
+			} else {
+				// whitespace at end of label: what to do?
+				last = "";
+			}
+		} else {
+			// no whitespace
+			first = label;
+			last = "";
+		}
+
+	}
+}
+
+
+static bool possible_split(string label, string previous) {
+/* See how similar label is to previous.
+ *
+ * If they are sufficiently different, (according to a hand-wavy definition of
+ * "sufficiently"), return true to indicate that we might wish to start a new
+ * column, or display some visual demarcation.
+ *
+ * Otherwise, return false to indicate that this label and the previous one
+ * should probably be grouped together.
+ */
+
+
+	int section_number, previous_section_number;
+
+	string first_word, last_word,
+	       previous_first_word, previous_last_word;
+
+	if (previous == "")
+		return false;
+
+	split_label(label, first_word, last_word, section_number);
+	split_label(previous, previous_first_word, previous_last_word, previous_section_number);
+
+	// cerr << "label: " << label << ", num: " << section_number << endl;
+
+	if (section_number == previous_section_number) {
+		return false;
+	} else {
+		if (first_word == previous_first_word &&
+		    last_word  == previous_last_word ) {
+			return false;
+		}
+	}
+	return true;
+
+}
+
+
 void
 GenericPluginUI::build ()
-
 {
 	guint32 i = 0;
 	guint32 x = 0;
@@ -173,8 +283,10 @@
 	frame->set_label (_("Controls"));
 	frame->add (*box);
 	hpacker.pack_start(*frame, true, true);
-
+
 	/* find all ports. build control elements for all appropriate control ports */
+
+	string previous_label = "";

 	for (i = 0; i < plugin->parameter_count(); ++i) {

@@ -188,24 +300,7 @@

 			ControlUI* cui;

-			/* if we are scrollable, just use one long column */

-			if (!is_scrollable) {
-				if (x++ > 20){
-					frame = manage (new Frame);
-					frame->set_name ("BaseFrame");
-					box = manage (new VBox);
-
-					box->set_border_width (5);
-					box->set_spacing (1);
-
-					frame->add (*box);
-					hpacker.pack_start(*frame,true,true);
-
-					x = 1;
-				}
-			}
-
 			if ((cui = build_control_ui (i, plugin->get_nth_control (i))) == 0) {
 				error << string_compose(_("Plugin Editor: could not build control element for port %1"), i) << endmsg;
 				continue;
@@ -213,10 +308,34 @@

 			if (cui->control || cui->clickbox || cui->combo) {

+				/* if we are scrollable, just use one long column */
+				if (!is_scrollable) {
+					x++;
+					if (possible_split(cui->label.get_text(), previous_label) || x > 20) {
+						if (x > 16) {
+							frame = manage (new Frame);
+							frame->set_name ("BaseFrame");
+							frame->set_label (_("Controls"));
+							box = manage (new VBox);
+
+							box->set_border_width (5);
+							box->set_spacing (1);
+
+							frame->add (*box);
+							hpacker.pack_start(*frame,true,true);
+
+							x = 0;
+						} else {
+							Label *split = new Label(" ");
+							box->pack_start(*split, false, false, 0);
+						}
+					}
+				}
+
 				box->pack_start (*cui, false, false);
-
+				previous_label = cui->label.get_text();
 			} else if (cui->button) {
-
+
 				if (button_row == button_rows) {
 					button_row = 0;
 					if (++button_col == button_cols) {
@@ -227,6 +346,7 @@

 				button_table.attach (*cui, button_col, button_col + 1, button_row, button_row+1,
 						     FILL|EXPAND, FILL);
+
 				button_row++;

 			} else if (cui->display) {

Index: gtk2_ardour/generic_pluginui.cc
===================================================================
--- gtk2_ardour/generic_pluginui.cc	(revision 6960)
+++ gtk2_ardour/generic_pluginui.cc	(working copy)
@@ -121,6 +121,61 @@
 	}
 }

+// Some functions useful for calculation the 'similarity' of two plugin control
+// labels. Maybe there are standard library functions that do these things, but
+// I don't know what they are...
+
+static int get_number(string label) {
+static const char *digits = "0123456789";
+int value = -1;
+
+	unsigned int first_digit_pos = label.find_first_of(digits);
+	if (first_digit_pos != string::npos) {
+		// found some digits: there's a number in there somewhere
+		stringstream s;
+		s << label.substr(first_digit_pos);
+		s >> value;
+	}
+	return value;
+}
+
+
+static int match_or_digit(char c1, char c2) {
+	return c1 == c2 || (isdigit(c1) && isdigit(c2));
+}
+
+static int matching_chars_at_head(const string s1, const string s2) {
+int n = 0;
+int length;
+
+	length = min(s1.length(), s2.length());
+	while (n < length) {
+		if (!match_or_digit(s1[n], s2[n]))
+			break;
+		n++;
+	}
+	return n;
+}
+
+static int matching_chars_at_tail(const string s1, const string s2) {
+int n = 0;
+int s1pos, s2pos;
+
+	s1pos = s1.length();
+	s2pos = s2.length();
+	while (s1pos-- > 0 && s2pos-- > 0) {
+		if (!match_or_digit(s1[s1pos], s2[s2pos])	)
+			break;
+		n++;
+	}
+	return n;
+}
+
+// #include <iomanip>
+
+static const guint32 min_controls_per_column = 17, max_controls_per_column = 24;
+static const float default_similarity_threshold = 0.3;
+
 void
 GenericPluginUI::build ()

@@ -135,6 +190,7 @@
 	int output_rows, output_cols;
 	int button_rows, button_cols;
 	guint32 n_ins=0, n_outs = 0;
+	int tallest_column = 0;

 	prefheight = 30;
 	hpacker.set_spacing (10);
@@ -161,6 +217,7 @@

 	bt_frame = manage (new Frame);
 	bt_frame->set_name ("BaseFrame");
+	bt_frame->set_label (_("Switches"));
 	bt_frame->add (button_table);
 	hpacker.pack_start(*bt_frame, true, true);

@@ -175,6 +232,7 @@
 	hpacker.pack_start(*frame, true, true);

 	/* find all ports. build control elements for all appropriate control ports */
+	std::vector<ControlUI *> cui_controls_list;

 	for (i = 0; i < plugin->parameter_count(); ++i) {

@@ -187,34 +245,15 @@
 			}

 			ControlUI* cui;
-
-			/* if we are scrollable, just use one long column */
-
-			if (!is_scrollable) {
-				if (x++ > 20){
-					frame = manage (new Frame);
-					frame->set_name ("BaseFrame");
-					box = manage (new VBox);
-
-					box->set_border_width (5);
-					box->set_spacing (1);
-
-					frame->add (*box);
-					hpacker.pack_start(*frame,true,true);
-
-					x = 1;
-				}
-			}
-
 			if ((cui = build_control_ui (i, plugin->get_nth_control (i))) == 0) {
 				error << string_compose(_("Plugin Editor: could not build control element for port %1"), i) << endmsg;
 				continue;
 			}

 			if (cui->control || cui->clickbox || cui->combo) {
-
-				box->pack_start (*cui, false, false);
-
+				// get all of the controls into a list so we can lay them out
+				// a bit more nicely
+				cui_controls_list.push_back(cui);
 			} else if (cui->button) {

 				if (button_row == button_rows) {
@@ -240,35 +279,99 @@
 					output_cols ++;
 					output_table.resize (output_rows, output_cols);
 				}
-
-				/* old code, which divides meters into
-				 * columns first, rows later. New code divides into one row
-
-				if (output_row == output_rows) {
-					output_row = 0;
-					if (++output_col == output_cols) {
-						output_cols += 2;
-						output_table.resize (output_rows, output_cols);
+			}
+		}
+	}
+
+	string label, previous_label = "";
+	int numbers_in_labels[cui_controls_list.size()];
+
+	float similarity_scores[cui_controls_list.size()];
+	float most_similar = 0.0, least_similar = 1.0;
+
+	i = 0;
+	for (vector<ControlUI*>::iterator cuip = cui_controls_list.begin(); cuip != cui_controls_list.end(); ++cuip, ++i) {
+		label = (*cuip)->label.get_text();
+		numbers_in_labels[i] = get_number(label);
+
+		if (i > 0) {
+			// a hand-wavy calculation of how similar this control's
+			// label is to the previous.
+			similarity_scores[i] =
+				(float) (
+					( matching_chars_at_head(label, previous_label) +
+					  matching_chars_at_tail(label, previous_label) +
+					  1
+					)
+				) / (label.length() + previous_label.length());
+			if (numbers_in_labels[i] >= 0) {
+				similarity_scores[i] += (numbers_in_labels[i] == numbers_in_labels[i-1]);
+			}
+			least_similar = min(least_similar, similarity_scores[i]);
+			most_similar  = max(most_similar, similarity_scores[i]);
+		} else {
+			similarity_scores[0] = 1.0;
+		}
+
+		// cerr << "label: " << label << " sim: " << fixed << setprecision(3) << similarity_scores[i] << " num: " << numbers_in_labels[i] << endl;
+		previous_label = label;
+	}
+
+
+	// cerr << "most similar: " << most_similar << ", least similar: " << least_similar << endl;
+	float similarity_threshold;
+
+	if (most_similar > 1.0) {
+		similarity_threshold = default_similarity_threshold;
+	} else {
+		similarity_threshold = most_similar - (1 - default_similarity_threshold);
+	}
+
+
+	i = 0;
+	for (vector<ControlUI*>::iterator cuip = cui_controls_list.begin(); cuip != cui_controls_list.end(); ++cuip, ++i) {
+
+		ControlUI* cui = *cuip;
+		/* if we are scrollable, just use one long column */
+		if (!is_scrollable) {
+			x++;
+			if (x > max_controls_per_column || similarity_scores[i] <= similarity_threshold) {
+				if (x > min_controls_per_column) {
+					frame = manage (new Frame);
+					frame->set_name ("BaseFrame");
+					frame->set_label (_("Controls"));
+					box = manage (new VBox);
+
+					box->set_border_width (5);
+					box->set_spacing (1);
+
+					frame->add (*box);
+					hpacker.pack_start(*frame,true,true);
+
+					if (tallest_column < x) {
+						tallest_column = x;
 					}
+					x = 0;
+				} else {
+					HSeparator *split = new HSeparator();
+					split->set_size_request(-1, 5);
+					box->pack_start(*split, false, false, 0);
 				}
-
-				output_table.attach (*cui, output_col, output_col + 1, output_row, output_row+1,
-						     FILL|EXPAND, FILL);
-
-				output_row++;
-				*/
 			}
-
-			/* HACK: ideally the preferred height would be queried from
-			   the complete hpacker, but I can't seem to get that
-			   information in time, so this is an estimation
-			*/
+		}

-			prefheight += 30;
+		box->pack_start (*cui, false, false);
+		previous_label = cui->label.get_text();

-		}
 	}
+
+	/* HACK: ideally the preferred height would be queried from
+	   the complete hpacker, but I can't seem to get that
+	   information in time, so this is an estimation
+	*/

+	prefheight = (tallest_column + 1) * 20;
+
 	n_ins = plugin->get_info()->n_inputs;
 	n_outs = plugin->get_info()->n_outputs;

@@ -283,6 +386,7 @@
 	if (!output_table.children().empty()) {
 		frame = manage (new Frame);
 		frame->set_name ("BaseFrame");
+		frame->set_label(_("Meters"));
 		frame->add (output_table);
 		hpacker.pack_end (*frame, true, true);
 	}

Index: gtk2_ardour/generic_pluginui.cc
===================================================================
--- gtk2_ardour/generic_pluginui.cc	(revision 9600)
+++ gtk2_ardour/generic_pluginui.cc	(working copy)
@@ -138,6 +138,57 @@
 	}
 }

+// Some functions for calculating the 'similarity' of two plugin
+// control labels.
+
+static int get_number(string label) {
+static const char *digits = "0123456789";
+int value = -1;
+
+	unsigned int first_digit_pos = label.find_first_of(digits);
+	if (first_digit_pos != string::npos) {
+		// found some digits: there's a number in there somewhere
+		stringstream s;
+		s << label.substr(first_digit_pos);
+		s >> value;
+	}
+	return value;
+}
+
+static int match_or_digit(char c1, char c2) {
+	return c1 == c2 || (isdigit(c1) && isdigit(c2));
+}
+
+static int matching_chars_at_head(const string s1, const string s2) {
+int n = 0;
+int length;
+
+	length = min(s1.length(), s2.length());
+	while (n < length) {
+		if (!match_or_digit(s1[n], s2[n]))
+			break;
+		n++;
+	}
+	return n;
+}
+
+static int matching_chars_at_tail(const string s1, const string s2) {
+int n = 0;
+int s1pos, s2pos;
+
+	s1pos = s1.length();
+	s2pos = s2.length();
+	while (s1pos-- > 0 && s2pos-- > 0) {
+		if (!match_or_digit(s1[s1pos], s2[s2pos])	)
+			break;
+		n++;
+	}
+	return n;
+}
+
+static const guint32 min_controls_per_column = 17, max_controls_per_column = 24;
+static const float default_similarity_threshold = 0.3;
+
 void
 GenericPluginUI::build ()
 {
@@ -151,7 +202,6 @@
 	int output_rows, output_cols;
 	int button_rows, button_cols;

-	prefheight = 30;
 	hpacker.set_spacing (10);

 	output_rows = initial_output_rows;
@@ -176,6 +226,7 @@

 	bt_frame = manage (new Frame);
 	bt_frame->set_name ("BaseFrame");
+	bt_frame->set_label (_("Switches"));
 	bt_frame->add (button_table);
 	hpacker.pack_start(*bt_frame, true, true);

@@ -190,6 +241,7 @@
 	hpacker.pack_start(*frame, true, true);

 	/* find all ports. build control elements for all appropriate control ports */
+	std::vector<ControlUI *> cui_controls_list;

 	for (i = 0; i < plugin->parameter_count(); ++i) {

@@ -203,24 +255,6 @@

 			ControlUI* cui;

-			/* if we are scrollable, just use one long column */
-
-			if (!is_scrollable) {
-				if (x++ > 20){
-					frame = manage (new Frame);
-					frame->set_name ("BaseFrame");
-					box = manage (new VBox);
-
-					box->set_border_width (5);
-					box->set_spacing (1);
-
-					frame->add (*box);
-					hpacker.pack_start(*frame, true, true);
-
-					x = 1;
-				}
-			}
-
 			boost::shared_ptr<ARDOUR::AutomationControl> c
 				= boost::dynamic_pointer_cast<ARDOUR::AutomationControl>(
 					insert->control(Evoral::Parameter(PluginAutomation, 0, i)));
@@ -231,9 +265,9 @@
 			}

 			if (cui->controller || cui->clickbox || cui->combo) {
-
-				box->pack_start (*cui, false, false);
-
+				// Get all of the controls into a list, so that
+				// we can lay them out a bit more nicely later.
+				cui_controls_list.push_back(cui);
 			} else if (cui->button) {

 				if (button_row == button_rows) {
@@ -259,33 +293,89 @@
 					output_cols ++;
 					output_table.resize (output_rows, output_cols);
 				}
+			}
+		}
+	}

-				/* old code, which divides meters into
-				 * columns first, rows later. New code divides into one row
+	// Iterate over the list of controls to find which adjacent controls
+	// are similar enough to be grouped together.
+
+	string label, previous_label = "";
+	int numbers_in_labels[cui_controls_list.size()];
+
+	float similarity_scores[cui_controls_list.size()];
+	float most_similar = 0.0, least_similar = 1.0;
+
+	i = 0;
+	for (vector<ControlUI*>::iterator cuip = cui_controls_list.begin(); cuip != cui_controls_list.end(); ++cuip, ++i) {
+		label = (*cuip)->label.get_text();
+		numbers_in_labels[i] = get_number(label);

-				if (output_row == output_rows) {
-					output_row = 0;
-					if (++output_col == output_cols) {
-						output_cols += 2;
-						output_table.resize (output_rows, output_cols);
-					}
-				}
-
-				output_table.attach (*cui, output_col, output_col + 1, output_row, output_row+1,
-						     FILL|EXPAND, FILL);
-
-				output_row++;
-				*/
+		if (i > 0) {
+			// A hand-wavy calculation of how similar this control's
+			// label is to the previous.
+			similarity_scores[i] =
+				(float) (
+					( matching_chars_at_head(label, previous_label) +
+					  matching_chars_at_tail(label, previous_label) +
+					  1
+					)
+				) / (label.length() + previous_label.length());
+			if (numbers_in_labels[i] >= 0) {
+				similarity_scores[i] += (numbers_in_labels[i] == numbers_in_labels[i-1]);
 			}
+			least_similar = min(least_similar, similarity_scores[i]);
+			most_similar  = max(most_similar, similarity_scores[i]);
+		} else {
+			similarity_scores[0] = 1.0;
+		}

-			/* HACK: ideally the preferred height would be queried from
-			   the complete hpacker, but I can't seem to get that
-			   information in time, so this is an estimation
-			*/
+		// cerr << "label: " << label << " sim: " << fixed << setprecision(3) << similarity_scores[i] << " num: " << numbers_in_labels[i] << endl;
+		previous_label = label;
+	}

-			prefheight += 30;
+
+	// cerr << "most similar: " << most_similar << ", least similar: " << least_similar << endl;
+	float similarity_threshold;
+
+	if (most_similar > 1.0) {
+		similarity_threshold = default_similarity_threshold;
+	} else {
+		similarity_threshold = most_similar - (1 - default_similarity_threshold);
+	}
+

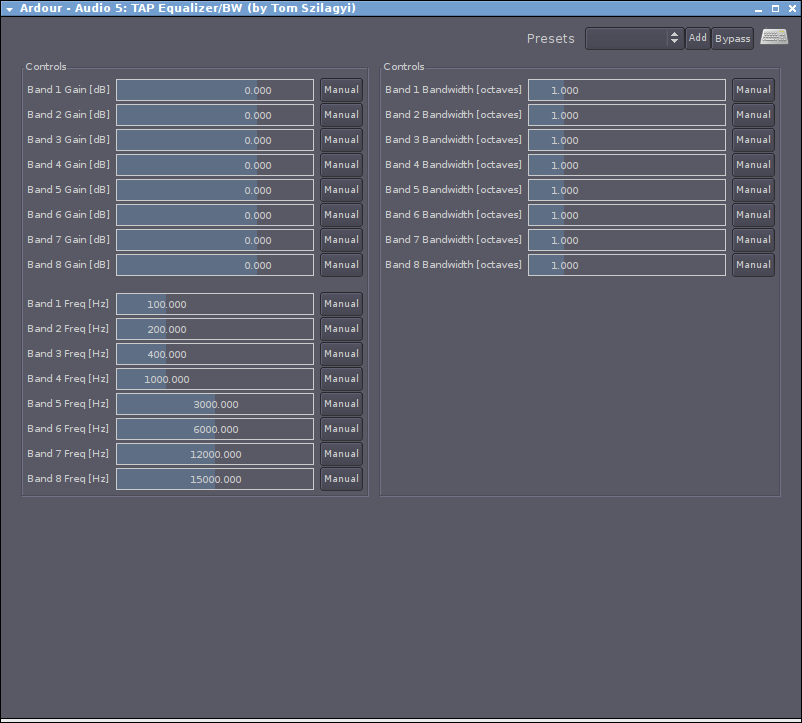

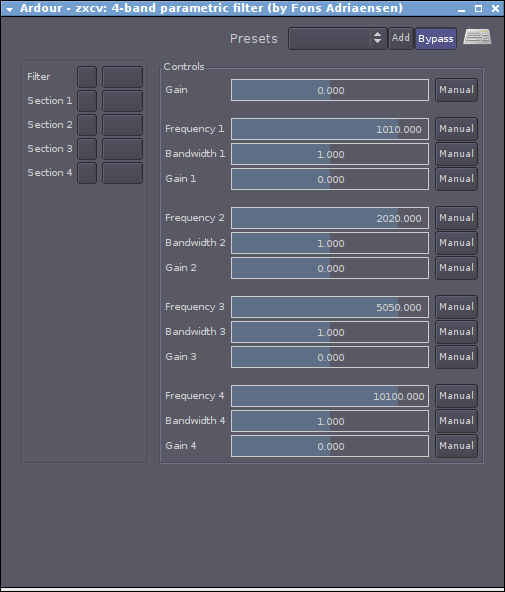

+	// Now iterate over the list of controls to display them, placing an
+	// HSeparator between controls of less than a certain similarity, and
+	// starting a new column when necessary.
+
+	i = 0;
+	for (vector<ControlUI*>::iterator cuip = cui_controls_list.begin(); cuip != cui_controls_list.end(); ++cuip, ++i) {

+		ControlUI* cui = *cuip;
+
+		if (!is_scrollable) {
+			x++;
 		}
+
+		if (x > max_controls_per_column || similarity_scores[i] <= similarity_threshold) {
+			if (x > min_controls_per_column) {
+				frame = manage (new Frame);
+				frame->set_name ("BaseFrame");
+				frame->set_label (_("Controls"));
+				box = manage (new VBox);
+				box->set_border_width (5);
+				box->set_spacing (1);
+				frame->add (*box);
+				hpacker.pack_start(*frame,true,true);
+				x = 0;
+			} else {
+				HSeparator *split = new HSeparator();
+				split->set_size_request(-1, 5);
+				box->pack_start(*split, false, false, 0);
+			}
+
+		}
+		box->pack_start (*cui, false, false);
 	}

 	if (box->children().empty()) {
@@ -299,6 +389,7 @@
 	if (!output_table.children().empty()) {
 		frame = manage (new Frame);
 		frame->set_name ("BaseFrame");
+		frame->set_label(_("Meters"));
 		frame->add (output_table);
 		hpacker.pack_end (*frame, true, true);
 	}

Index: gtk2_ardour/generic_pluginui.cc
===================================================================
--- gtk2_ardour/generic_pluginui.cc	(revision 9834)
+++ gtk2_ardour/generic_pluginui.cc	(working copy)
@@ -128,6 +128,7 @@

 	bypass_button.set_active (!pi->active());

+	prefheight = 0;
 	build ();
 }

@@ -138,6 +139,55 @@
 	}
 }

+// Some functions for calculating the 'similarity' of two plugin
+// control labels.
+
+static int get_number(string label) {
+static const char *digits = "0123456789";
+int value = -1;
+
+	std::size_t first_digit_pos = label.find_first_of(digits);
+	if (first_digit_pos != string::npos) {
+		// found some digits: there's a number in there somewhere
+		stringstream s;
+		s << label.substr(first_digit_pos);
+		s >> value;
+	}
+	return value;
+}
+
+static int match_or_digit(char c1, char c2) {
+	return c1 == c2 || (isdigit(c1) && isdigit(c2));
+}
+
+static std::size_t matching_chars_at_head(const string s1, const string s2) {
+std::size_t length, n = 0;
+
+	length = min(s1.length(), s2.length());
+	while (n < length) {
+		if (!match_or_digit(s1[n], s2[n]))
+			break;
+		n++;
+	}
+	return n;
+}
+
+static std::size_t matching_chars_at_tail(const string s1, const string s2) {
+std::size_t s1pos, s2pos, n = 0;
+
+	s1pos = s1.length();
+	s2pos = s2.length();
+	while (s1pos-- > 0 && s2pos-- > 0) {
+		if (!match_or_digit(s1[s1pos], s2[s2pos])	)
+			break;
+		n++;
+	}
+	return n;
+}
+
+static const guint32 min_controls_per_column = 17, max_controls_per_column = 24;
+static const float default_similarity_threshold = 0.3;
+
 void
 GenericPluginUI::build ()
 {
@@ -151,7 +201,6 @@
 	int output_rows, output_cols;
 	int button_rows, button_cols;

-	prefheight = 30;
 	hpacker.set_spacing (10);

 	output_rows = initial_output_rows;
@@ -176,6 +225,7 @@

 	bt_frame = manage (new Frame);
 	bt_frame->set_name ("BaseFrame");
+	bt_frame->set_label (_("Switches"));
 	bt_frame->add (button_table);
 	hpacker.pack_start(*bt_frame, true, true);

@@ -190,6 +240,7 @@
 	hpacker.pack_start(*frame, true, true);

 	/* find all ports. build control elements for all appropriate control ports */
+	std::vector<ControlUI *> cui_controls_list;

 	for (i = 0; i < plugin->parameter_count(); ++i) {

@@ -203,24 +254,6 @@

 			ControlUI* cui;

-			/* if we are scrollable, just use one long column */
-
-			if (!is_scrollable) {
-				if (x++ > 20){
-					frame = manage (new Frame);
-					frame->set_name ("BaseFrame");
-					box = manage (new VBox);
-
-					box->set_border_width (5);
-					box->set_spacing (1);
-
-					frame->add (*box);
-					hpacker.pack_start(*frame, true, true);
-
-					x = 1;
-				}
-			}
-
 			boost::shared_ptr<ARDOUR::AutomationControl> c
 				= boost::dynamic_pointer_cast<ARDOUR::AutomationControl>(
 					insert->control(Evoral::Parameter(PluginAutomation, 0, i)));
@@ -231,12 +264,12 @@
 			}

 			if (cui->controller || cui->clickbox || cui->combo) {
-
-				box->pack_start (*cui, false, false);
-
+				// Get all of the controls into a list, so that
+				// we can lay them out a bit more nicely later.
+				cui_controls_list.push_back(cui);
 			} else if (cui->button) {

-				if (button_row == button_rows) {
+				if (!is_scrollable && button_row == button_rows) {
 					button_row = 0;
 					if (++button_col == button_cols) {
 						button_cols += 2;
@@ -259,35 +292,95 @@
 					output_cols ++;
 					output_table.resize (output_rows, output_cols);
 				}
+			}
+		}
+	}

-				/* old code, which divides meters into
-				 * columns first, rows later. New code divides into one row
+	// Iterate over the list of controls to find which adjacent controls
+	// are similar enough to be grouped together.
+
+	string label, previous_label = "";
+	int numbers_in_labels[cui_controls_list.size()];
+
+	float similarity_scores[cui_controls_list.size()];
+	float most_similar = 0.0, least_similar = 1.0;
+
+	i = 0;
+	for (vector<ControlUI*>::iterator cuip = cui_controls_list.begin(); cuip != cui_controls_list.end(); ++cuip, ++i) {
+		label = (*cuip)->label.get_text();
+		numbers_in_labels[i] = get_number(label);

-				if (output_row == output_rows) {
-					output_row = 0;
-					if (++output_col == output_cols) {
-						output_cols += 2;
-						output_table.resize (output_rows, output_cols);
-					}
-				}
-
-				output_table.attach (*cui, output_col, output_col + 1, output_row, output_row+1,
-						     FILL|EXPAND, FILL);
-
-				output_row++;
-				*/
+		if (i > 0) {
+			// A hand-wavy calculation of how similar this control's
+			// label is to the previous.
+			similarity_scores[i] =
+				(float) (
+					( matching_chars_at_head(label, previous_label) +
+					  matching_chars_at_tail(label, previous_label) +
+					  1
+					)
+				) / (label.length() + previous_label.length());
+			if (numbers_in_labels[i] >= 0) {
+				similarity_scores[i] += (numbers_in_labels[i] == numbers_in_labels[i-1]);
 			}
+			least_similar = min(least_similar, similarity_scores[i]);
+			most_similar  = max(most_similar, similarity_scores[i]);
+		} else {
+			similarity_scores[0] = 1.0;
+		}

-			/* HACK: ideally the preferred height would be queried from
-			   the complete hpacker, but I can't seem to get that
-			   information in time, so this is an estimation
-			*/
+		// cerr << "label: " << label << " sim: " << fixed << setprecision(3) << similarity_scores[i] << " num: " << numbers_in_labels[i] << endl;
+		previous_label = label;
+	}

-			prefheight += 30;
+
+	// cerr << "most similar: " << most_similar << ", least similar: " << least_similar << endl;
+	float similarity_threshold;
+
+	if (most_similar > 1.0) {
+		similarity_threshold = default_similarity_threshold;
+	} else {
+		similarity_threshold = most_similar - (1 - default_similarity_threshold);
+	}
+
+	// Now iterate over the list of controls to display them, placing an
+	// HSeparator between controls of less than a certain similarity, and
+	// starting a new column when necessary.
+
+	i = 0;
+	for (vector<ControlUI*>::iterator cuip = cui_controls_list.begin(); cuip != cui_controls_list.end(); ++cuip, ++i) {

+		ControlUI* cui = *cuip;
+
+		if (!is_scrollable) {
+			x++;
 		}
+
+		if (x > max_controls_per_column || similarity_scores[i] <= similarity_threshold) {
+			if (x > min_controls_per_column) {
+				frame = manage (new Frame);
+				frame->set_name ("BaseFrame");
+				frame->set_label (_("Controls"));
+				box = manage (new VBox);
+				box->set_border_width (5);
+				box->set_spacing (1);
+				frame->add (*box);
+				hpacker.pack_start(*frame, true, true);
+				x = 0;
+			} else {
+				HSeparator *split = new HSeparator();
+				split->set_size_request(-1, 5);
+				box->pack_start(*split, false, false, 0);
+			}
+
+		}
+		box->pack_start (*cui, false, false);
 	}

+	if (is_scrollable) {
+		prefheight = 30 * i;
+	}
+
 	if (box->children().empty()) {
 		hpacker.remove (*frame);
 	}
@@ -299,6 +392,7 @@
 	if (!output_table.children().empty()) {
 		frame = manage (new Frame);
 		frame->set_name ("BaseFrame");
+		frame->set_label(_("Meters"));
 		frame->add (output_table);
 		hpacker.pack_end (*frame, true, true);
 	}
